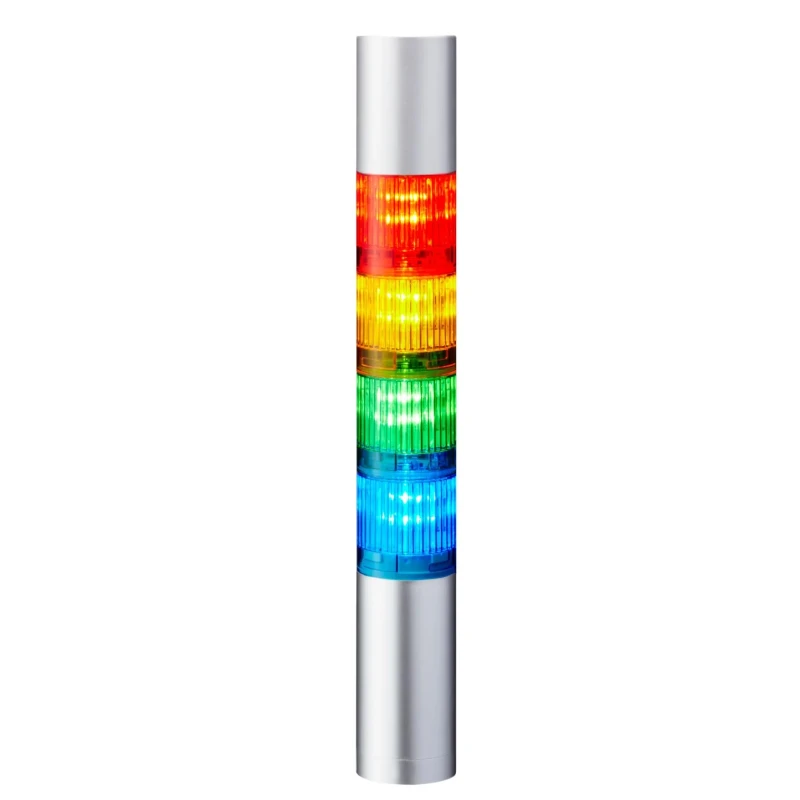

Patlite LR4 Series Signal Tower Buzzer 4 Lights Red, Clear, Amber, Blue, Green, White LED 24V DC Direct LR4-402WJBU-RYGB
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Patlite |
| Height | 293.5mm |
| Model | LR4-402WJBU-RYGB |
| IP Rating | IP65 |
| Mount Type | Direct Mount |
| Bulb Type | LED |
| Series | LR4 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 45mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 40mm |
| Terminal type | Terminal Block |
| Lens Colour | Red, Clear, Amber, Blue, Green, White |
| Standards/Approvals | UL Recognised Component (File No.E215660), UL 508, RoHS Directive (EN 50581), KC (KN 61000-6-4,KN 61000-6-2), FCC Part 15 Subpart B Class A, EMC Directive (EN 61000-6-4,EN 61000-6-2), CSA-C22.2 No. 14 |
| Maximum Supply Voltage | 24V |
| Housing Colour | Silver |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Sound Level at 1m | 90dB |
| Maximum Sound Level | 85dB |
| Number of Light Elements | 4 |
| Connection Cable Length | 3.3m |
| Four mounting options | Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only) |
Key Features
- Equipped with a buzzer sounder producing 90dB at 1 meter for effective audible alerts.
- Flashing light effect enhances visibility in industrial and automation settings.
- Durable silver housing with IP65 rating ensures protection against dust and water exposure.
- Modular design with "Twist and Lock" system for easy customization and field reconfiguration.
- Operates reliably in temperatures from -20°C to 50°C for diverse environments.
- Utilizes energy-efficient LED bulbs ensuring bright light output of 2000mcd.
- Connection via terminal block and includes a 3.3 meter cable for installation flexibility.
- Meets multiple international standards including UL 508, RoHS, KC, FCC, EMC, and CSA certifications.
Product Description
Patlite LR4-402WJBU-RYGB signal tower buzzer is a next-generation automation signalling device designed for industrial, electrical, and manufacturing environments. Featuring four LED light elements in the colors red, clear, amber, blue, green, and white, it provides comprehensive and clear visual alerts. The buzzer sounder emits a loud 90dB omni-directional sound at 1 meter, enhancing safety and operational communication within noisy environments.
The unit operates on 24V DC with a direct mount design simplifying installation. It offers a flashing light effect to optimize visibility and draws minimal current (45mA), supporting efficient power usage. The modular "Twist and Lock" construction allows users to easily customize or reconfigure the LED and sound modules in the field, adapting to changing application needs.
Constructed with a silver housing rated IP65 for dust and water resistance, this unit is resilient against harsh environmental conditions with operating temperatures ranging from -20°C to 50°C. The 3.3 meter connection cable and terminal block facilitate convenient wiring and mounting. The compact dimensions of 293.5mm height and 40mm base diameter allow for efficient use of space.
Compliant with international safety and electromagnetic compatibility standards including UL Recognized Component (E215660), UL 508, RoHS Directive, KC, FCC, EMC Directives, and CSA standards, this signal tower ensures reliable performance and regulatory adherence. Its Japanese manufacturing origin guarantees precise quality and durability.
Suitable for industrial automation, electrical control systems, manufacturing plants, HVAC signaling, and water treatment facilities, the Patlite LR4-402WJBU-RYGB enhances operational safety and monitoring capabilities. The product is part of the LR4 series known for advanced application versatility and rugged design.
Equipped with buzzer sounder producing loud 90dB signals at 1 meter. Four LED lights in multiple colors provide clear visual alerts. Modular "Twist and Lock" system for easy customization and reconfiguration. Durable IP65-rated silver housing suitable for harsh environments.
Wide operating temperature range from -20°C to 50°C guaranteeing reliability. Compliance with UL, RoHS, KC, FCC, EMC, and CSA standards ensures safety and quality. Includes 3.3 meter cable and terminal block connections for flexibility.
Compact size with 293.5mm height and 40mm base diameter for versatile mounting. Designed and manufactured in Japan for high-quality assurance. Explore EnvMart's comprehensive catalog for more advanced Signal Tower products and automation signalling solutions by Patlite and other reputable manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The buzzer in this model produces a maximum sound level of 90dB at a distance of 1 meter.
It operates reliably within a temperature range of -20°C to 50°C.
This unit features four LED light elements in various colors: red, clear, amber, blue, green, and white.
The signal tower operates on a 24V DC power supply.
This model can be directly mounted or used with various pole mounting options including L-bracket, circular bracket, and folding bracket.
The connection cable included with this unit is 3.3 meters long.
The housing of this signal tower has an IP65 rating, providing protection against dust and water exposure.
This model meets several international standards including UL 508, RoHS, KC, FCC, EMC, and CSA certifications.
The base diameter of this signal tower is 40mm.
This model uses a buzzer sounder to provide audible alerts.
The LED lights in this unit produce a flashing light effect to enhance visibility.
The current consumption of this signal tower is 45mA.
