Alpha Wire Hook Up Wire PVC Series White, 16 AWG, 26x0.25 mm Core Strands, 305 m Length, 300V, Flame Retardant 3057 WH001

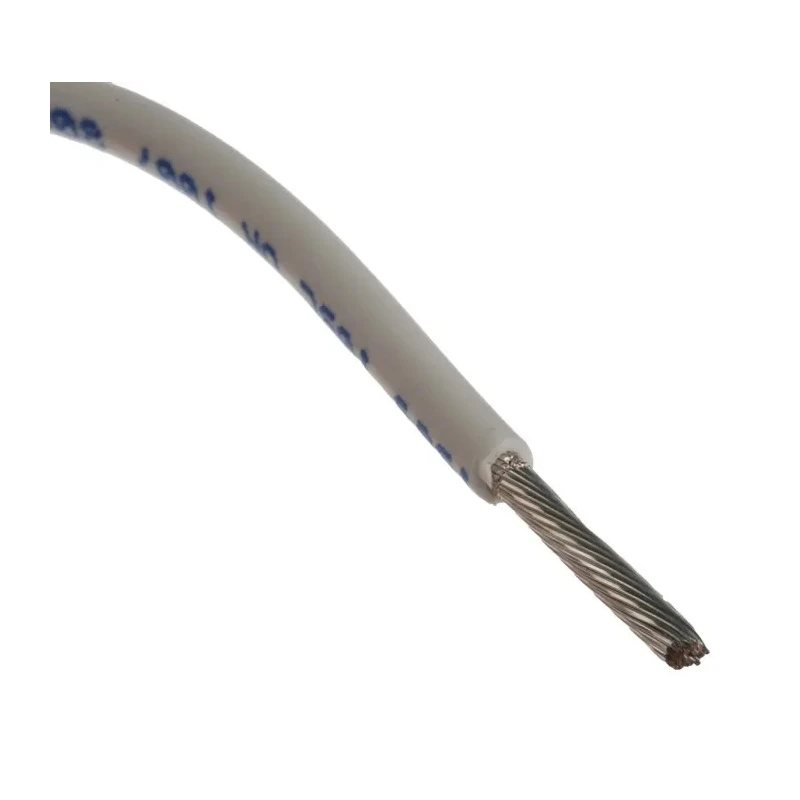

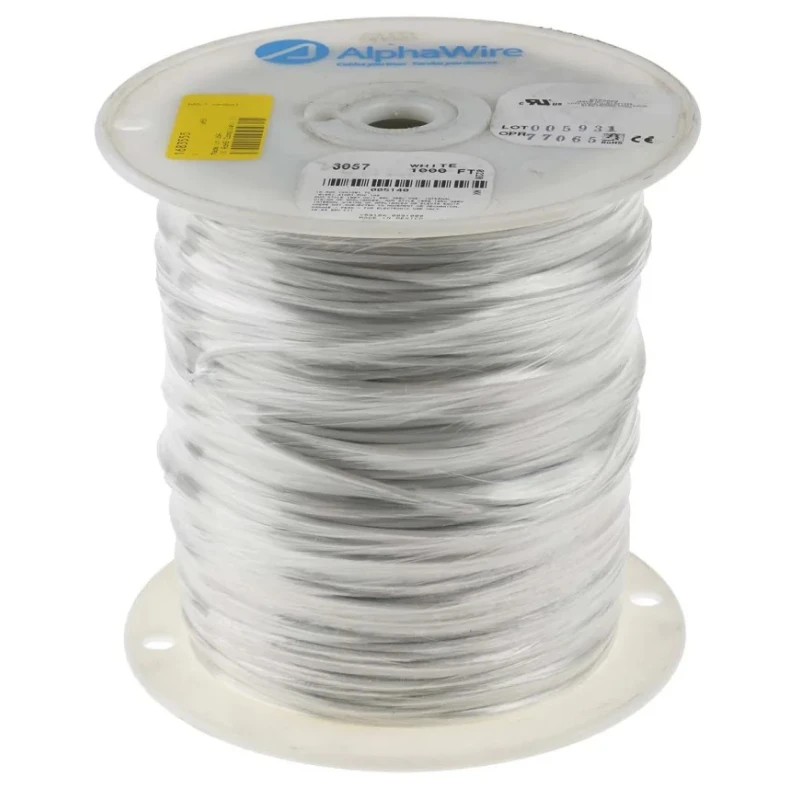

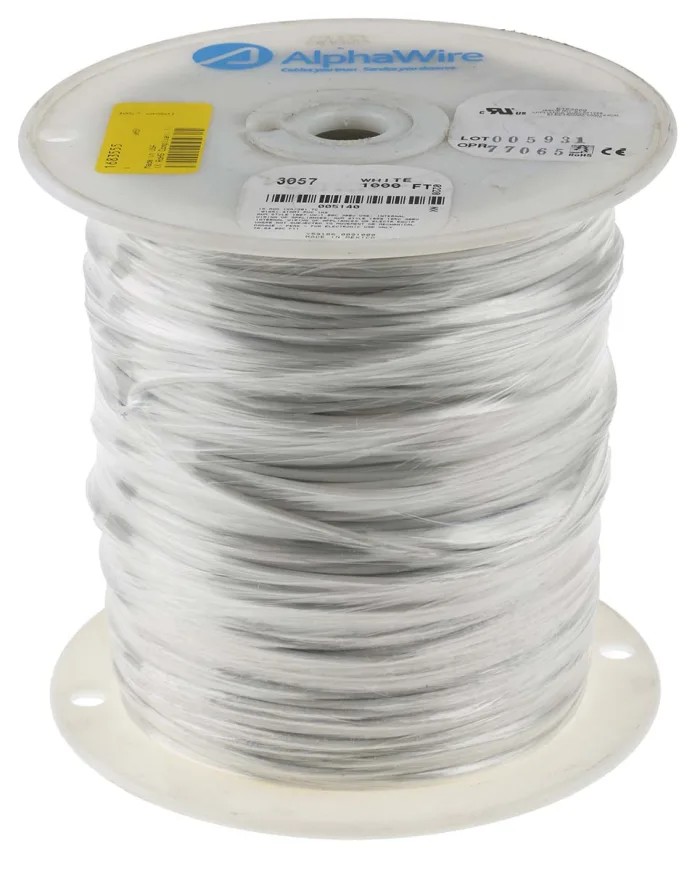

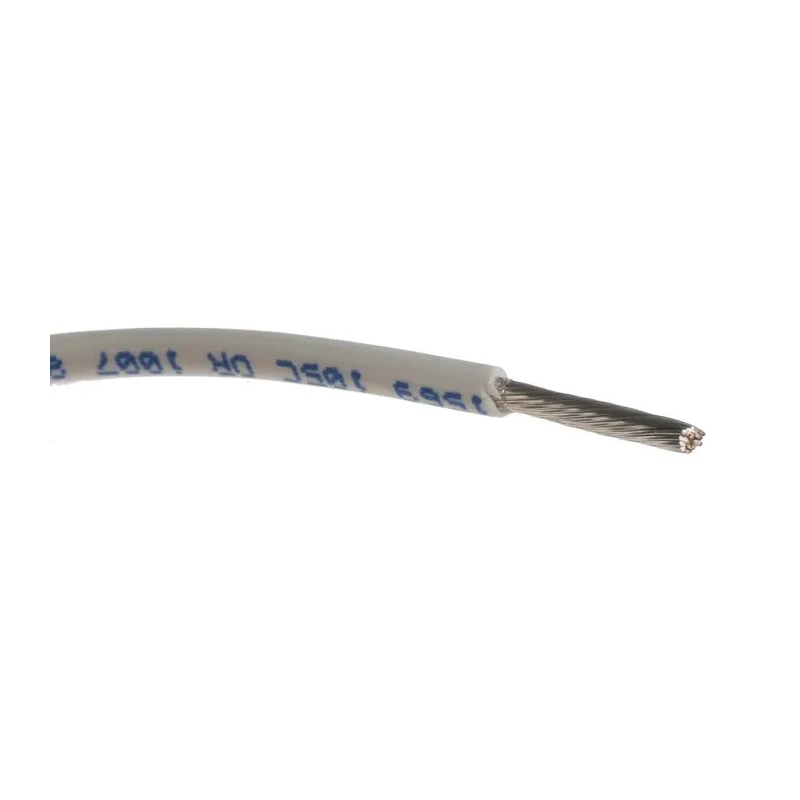

Alpha Wire 3057 WH001 Hook Up Wire PVC Series White is a premium electrical cable featuring 16 American Wire Gauge (AWG) size with 26 strands of 0.25 mm diameter tinned copper cores. It measures 305 meters in length and has an outside diameter of 2.34 mm. The cable is rated for 300 volts and can operate safely at maximum temperatures of 105°C and minimum temperatures down to -40°C, making it suitable for moderate to high temperature environments.

The conductor's multi-stranded tin-plated copper design provides excellent flexibility, which facilitates installation in confined spaces and complex wiring looms. The cable's flame-retardant polyvinyl chloride (PVC) jacket ensures enhanced safety by reducing the risk of fire propagation in installations exposed to flames. The PVC jacket is white, providing clear visual identification in wiring assemblies.

This hook-up wire complies with multiple industrial standards and approvals, including UL AWM 1007, UL 1581, UL 1569 VW-1, CSA AWM I A/B FT1, and CSA TR-64 FT1. It is UL listed, ensuring compatibility with certified systems in electrical, automation, aerospace, and defense sectors.

Applications for the Alpha Wire 3057 WH001 include internal wiring of control panels and cabinets, harness assembly in aerospace and defense equipment, connections to sensors, relays, and terminal blocks in automation systems, as well as motor control and machine tool wiring. The cable is also suitable for replacement wiring in avionics and military assemblies.

Installation guidelines recommend observing a maximum pull tension of 20.4 lb to avoid conductor damage and maintaining a minimum bend radius equal to ten times the cable diameter to preserve cable integrity. The material complies with RoHS and REACH environmental chemical regulations, containing no substances of very high concern above 0.1% by mass.

This hook-up wire is designed for internal wiring and interconnection in automation, electronics, and electrical assemblies. The 26-strand tinned copper conductor offers excellent flexibility. The cable supports a maximum operating temperature of 105°C and minimum of -40°C.

The flame-retardant PVC jacket enhances safety by reducing fire propagation risks. This wire meets multiple UL and CSA standards for industrial and aerospace use. It is suitable for control panel wiring, harnesses in defense and aerospace, and machine tool wiring.

Recommended handling includes a maximum pull tension of 20.4 lb and maintaining a bend radius of ten times the cable diameter. Explore EnvMart's wide selection of high-quality cables and wiring solutions for industrial and commercial applications.
