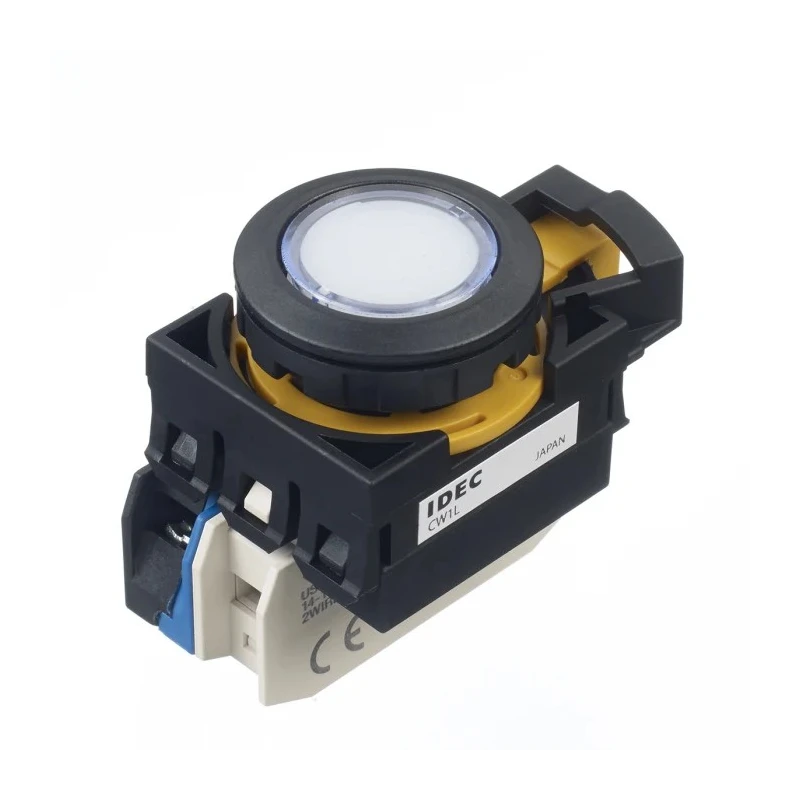

Idec Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPST, White LED, IP65 CW1L-M1E10QM4PW
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | CW1L-M1E10QM4PW |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | CW |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Switch Contact Current | 10A |
| Legend | Marking Film can be Inserted |
Key Features
- Features a 22 mm panel cutout size suitable for standard installations.
- SPST contact configuration provides single-pole single-throw switching.
- Momentary switch operation for controlled user input.
- White LED illumination enhances visibility and status indication.
- IP65 rated enclosure ensures protection against dust and water jets.
- Operates reliably between -25°C to 55°C temperature range.
- Constructed with screw terminal type for secure wiring connections.
- Includes a legend marking film that can be inserted for custom identification.
Product Description
Idec CW1L-M1E10QM4PW is an illuminated momentary push button switch designed for panel mounting with a 22 mm cutout size. This SPST switch features a white LED to provide clear visual indication and meets IP65 standards for dust tight and water jet resistance, making it suitable for industrial and automation control panels.
The switch operation is momentary, enabling temporary actuation for controlled machine or process interfacing. It supports a high contact current of 10A, ensuring durability in demanding electrical switching applications.
The robust design includes mounting by panel with screw terminals for secure electrical connections. Its compact 34.5 mm depth behind the panel optimizes installation space, while the film marking legend offers customization for operator interfaces.
Operating temperature ranges from -25°C to 55°C, allowing reliable use in various environmental conditions. The CW series from Idec delivers a sleek and safe profile, minimizing accidental activations and reducing dust accumulation for clean panels.
This push button switch complies with key global standards including EN60947-5-1, GB14048.5, CSA C22.2 No.14, UL/c-UL File No. E68961, UL508, and the EU Low Voltage Directive, reflecting international safety and quality benchmarks.
Features a 22 mm panel cutout size suitable for standard installations. SPST contact configuration provides single-pole single-throw switching. Momentary switch operation for controlled user input. White LED illumination enhances visibility and status indication.
IP65 rated enclosure ensures protection against dust and water jets. Operates reliably between -25°C to 55°C temperature range. Constructed with screw terminal type for secure wiring connections. Includes a legend marking film that can be inserted for custom identification.
Compact design with 34.5 mm depth behind the panel minimizes space usage. Manufactured in Japan ensuring high quality and compliance with international standards.
This product is ideal for industrial automation, control panels, machinery operation, manufacturing environments, and other applications requiring reliable user input and indication. Explore more options in our Push Button Switches & Components category at EnvMart.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single-Pole Single-Throw) contact configuration, allowing for simple on/off switching.
The maximum operating temperature for this switch is 55°C, making it suitable for various environments.
It has an IP65 rating, ensuring protection against dust and water jets, suitable for industrial applications.
This switch requires a 22 mm panel cutout size for standard installations.
It is constructed with screw terminals, providing secure wiring connections.
The operating temperature range is from -25°C to 55°C, allowing reliable use in diverse conditions.
This switch supports a contact current rating of 10A, suitable for demanding electrical applications.
Yes, it includes a legend marking film that can be inserted for custom identification.
The compact design has a depth of 34.5 mm behind the panel, optimizing installation space.
This product is manufactured in Japan, ensuring compliance with international standards.
This model is part of the CW series from Idec, which is designed for industrial and automation applications.
It features momentary switch operation, allowing for controlled user input during activation.
