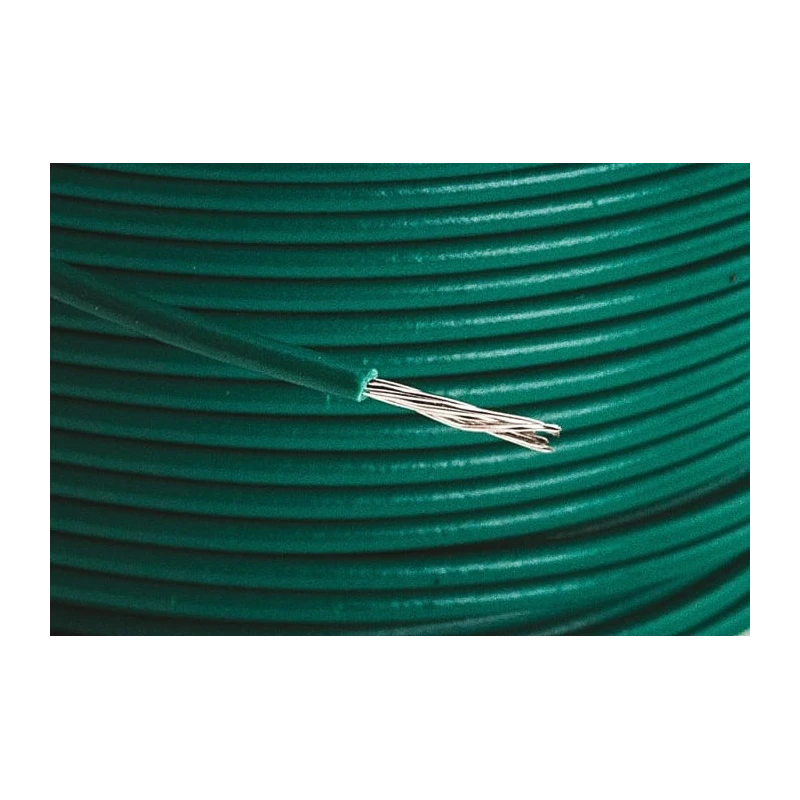

Alpha Wire Hook Up Wire PVC Series Green 22 AWG Copper Conductor, 7 x 0.25 mm Strands, 30 m Length, 300V, UL1061 3251 GR005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hook Up Wire PVC Series Green 22 AWG Copper Conductor, 7 x 0.25 mm Strands, 30 m Length, 300V, UL1061 3251 GR005

Name: Alpha Wire Hook Up Wire PVC Series Green 22 AWG Copper Conductor, 7 x 0.25 mm Strands, 30 m Length, 300V, UL1061 3251 GR005
Brand: ALPHA WIRE
SKU: 95527
Price: 27.43 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Model	3251 GR005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	1.27mm
Maximum Operating Temperature	80°C
Conductor Material	Copper
Sub Type	UL1061
Cable Type	Hookup
Minimum Operating Temperature	-10°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	UL Listed
Jacket Colour	Green
Fire Behaviour	Flammability Test: VW-1
American Wire Gauge	22AWG
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Fire Behaviour Flammability Test	VW-1
Grn UL1061 hook-up equipment wire,22awgBrand	Alpha Wire

Key Features

The wire features a vibrant green polyvinyl chloride (PVC) jacket for easy identification.
It has a 22 AWG size with seven strands of 0.25 mm diameter each, ensuring flexibility and fatigue resistance.

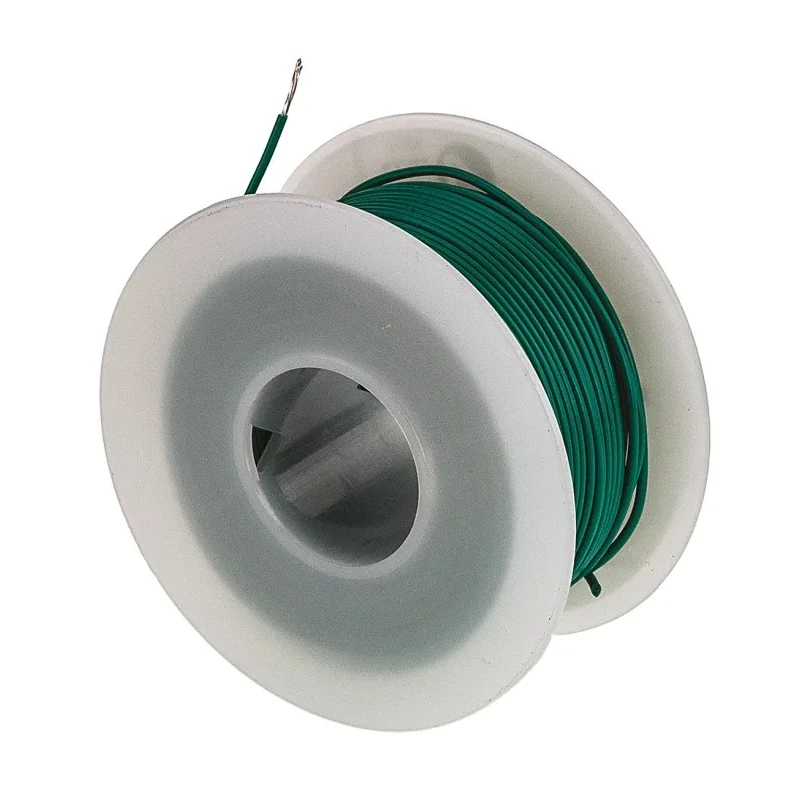

The cable length is 30 meters on a reel, allowing custom length cuts.
It supports a voltage rating of 300V and operates safely between -10°C and 80°C.
The wire is UL1061 compliant and UL listed for safety and quality assurance.
Its 1.27 mm outer diameter offers a compact and space-efficient profile.
Copper conductor material ensures efficient electrical signal transmission.

Product Description

Alpha Wire 3251 GR005 Hook Up Wire PVC Series Green is a high-quality single core wire designed for electrical, automation, and industrial use. Featuring a 22 AWG American Wire Gauge, the wire consists of seven strands each 0.25 mm in diameter, enclosed in a semi-rigid polyvinyl chloride (PVC) jacket that provides excellent abrasion resistance and protection against contamination.

The cable length is provided as a 30-meter reel, enabling users to cut precise lengths as needed for various installations. The vibrant green color of the jacket enhances visibility and identification in complex wiring setups.

This hook up wire carries a voltage rating of 300 volts and conforms to UL1061 standards, being UL listed, ensuring adherence to rigorous safety and performance norms. It functions reliably across a temperature range of -10°C to 80°C, making it suitable for diverse environmental conditions including cold storage and engineering workshop settings.

The copper conductor offers excellent electrical conductivity, ensuring minimal signal loss and effective power delivery. With an outside diameter of 1.27 mm, this compact wire is apt for space-conscious installations where managing cable bulk is critical.

The wire's flexible seven-strand construction resists fatigue, promoting longevity in repetitive or dynamic applications. Its semi-rigid PVC insulation safeguards the core, making it highly resistant to mechanical wear and chemical exposure.

The hook up wire is applicable in process control, handheld instruments, and industrial automation sectors. The VW-1 flammability rating provides enhanced fire safety, complying with industry fire behavior standards. The product ensures efficient and durable connections for general-purpose wiring tasks in electrical appliances and control systems.

Choosing Alpha Wire 3251 GR005 series ensures consistent quality and reliability for professional wiring and electronic assembly projects. Explore more from Alpha Wire and related Hook Up Wires here on EnvMart for comprehensive electrical solutions.
