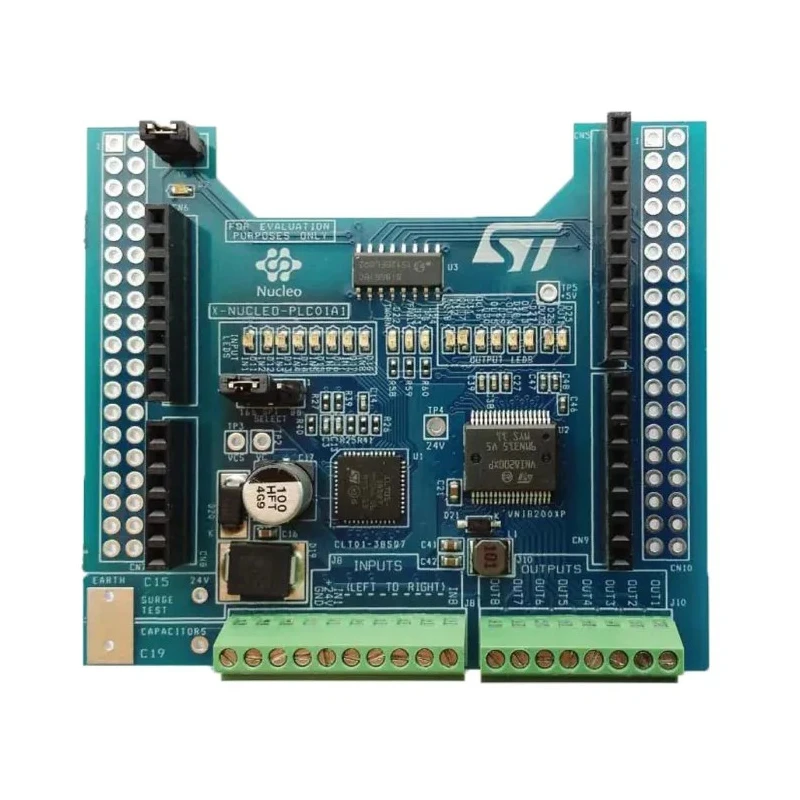

STMicroelectronics Expansion Board PLC Driver for VNI8200XP, CLT01-38SQ7 for STM32 Nucleo X-NUCLEO-PLC01A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-PLC01A1 |
| Interfaces | USB 2 |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | VNI8200XP, CLT01-38SQ7 |
| Kit Name | Expansion Board |
Key Features
- Offers 8 inputs protected by CLT01-38SQ7 digital termination array.
- Includes 8 outputs driving VNI8200XP octal high-side solid-state relay.
- Host communication via SPI bus with on-board Si8661 digital isolator protection.
- Equipped with multiple status and I/O activity LEDs for monitoring.
- Screw connectors available for all protected inputs and outputs.
- Compatible with STM32 Nucleo-64 MCU boards and Arduino Uno r3 Shield headers.
- Designed to meet IEC61000-4-2 for electrostatic discharge at 8kV and 15kV test standards.
- Comes with free development firmware and example library compatible with STM32Cube firmware.
Product Description
STMicroelectronics X-NUCLEO-PLC01A1 expansion board is an industrial PLC driver evaluation board designed to extend STM32 Nucleo boards with reliable input/output functionalities. It integrates VNI8200XP, an octal high-side solid-state relay, and CLT01-38SQ7 digital termination arrays to provide a robust interface for industrial applications requiring programmable logic control.
The board supports 8 digital inputs with protection provided by the CLT01-38SQ7 array and 8 outputs that drive the VNI8200XP solid-state relay. Communication to the host microcontroller is done over an SPI bus, secured through a Si8661 digital isolator to ensure signal integrity and protection in noisy industrial environments. Various status LEDs indicate power, SPI activity, fault conditions, and over-temperature events, alongside 16 I/O activity LEDs for comprehensive operation monitoring.
Screw connectors facilitate reliable and secure connections for all protected inputs and outputs. The expansion board is fully compatible with STM32 Nucleo-64 MCU boards and includes Arduino Uno R3 compatible shield headers, enabling easy integration and development. The design meets industrial standards including IEC61000-4-2, designed to withstand electrostatic discharge events up to 8kV and 15kV, ensuring durability in harsh working conditions.
Developers benefit from free firmware and example libraries compatible with the STM32Cube ecosystem, accelerating development and deployment in automation and control systems.
Typical industrial use cases for the X-NUCLEO-PLC01A1 include automation systems, industrial machinery control, robotics, and embedded system development in manufacturing and process control environments.
Offers 8 inputs protected by CLT01-38SQ7 digital termination array. Includes 8 outputs driving VNI8200XP octal high-side solid-state relay. Host communication via SPI bus with on-board Si8661 digital isolator protection.
Equipped with multiple status and I/O activity LEDs for monitoring. Screw connectors available for all protected inputs and outputs. Compatible with STM32 Nucleo-64 MCU boards and Arduino Uno r3 Shield headers. Designed to meet IEC61000-4-2 for electrostatic discharge at 8kV and 15kV test standards.
Comes with free development firmware and example library compatible with STM32Cube firmware. Explore the growing range of industrial automation and PLC Expansion Modules at EnvMart for enhanced control solutions and development boards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The X-NUCLEO-PLC01A1 expansion board is designed to extend STM32 Nucleo boards with reliable input/output functionalities, integrating an octal high-side solid-state relay and digital termination arrays for programmable logic control applications.
It supports 8 digital inputs protected by the CLT01-38SQ7 digital termination array and 8 outputs driven by the VNI8200XP solid-state relay.
The board communicates with the host microcontroller via an SPI bus, which is secured through an on-board Si8661 digital isolator.
Yes, it is compatible with STM32 Nucleo-64 MCU boards and includes Arduino Uno R3 compatible shield headers for easy integration.
The inputs are protected by the CLT01-38SQ7 digital termination array, ensuring safe operation in industrial environments.
It is designed to meet IEC61000-4-2 standards for electrostatic discharge, withstanding events up to 8kV and 15kV test levels.
The board is equipped with multiple status LEDs for power, SPI activity, fault conditions, and over-temperature events, along with 16 I/O activity LEDs.
It comes with free development firmware and example libraries that are compatible with the STM32Cube firmware ecosystem.
The X-NUCLEO-PLC01A1 expansion board is manufactured in India.
Screw connectors are available for all protected inputs and outputs, providing secure and reliable connections.
It is classified as an evaluation board, specifically designed for industrial automation applications.
The featured devices integrated into this model are the VNI8200XP octal high-side solid-state relay and the CLT01-38SQ7 digital termination array.
