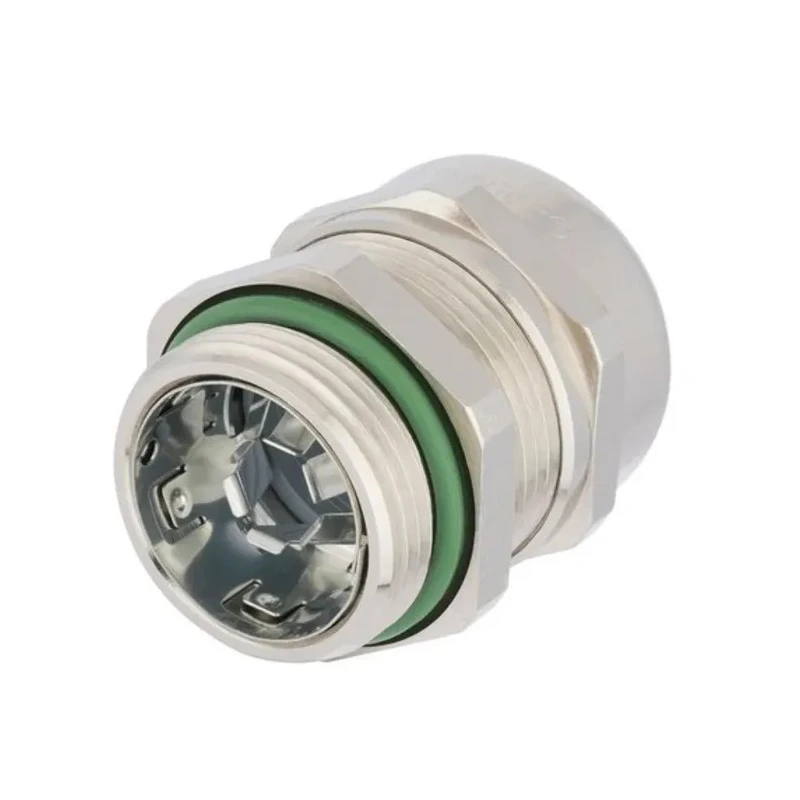

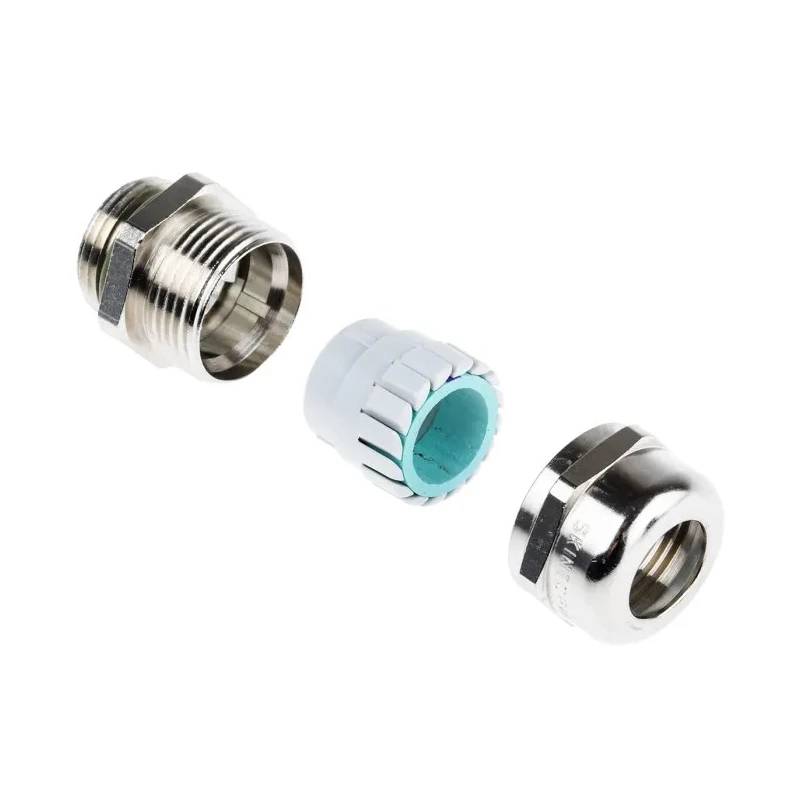

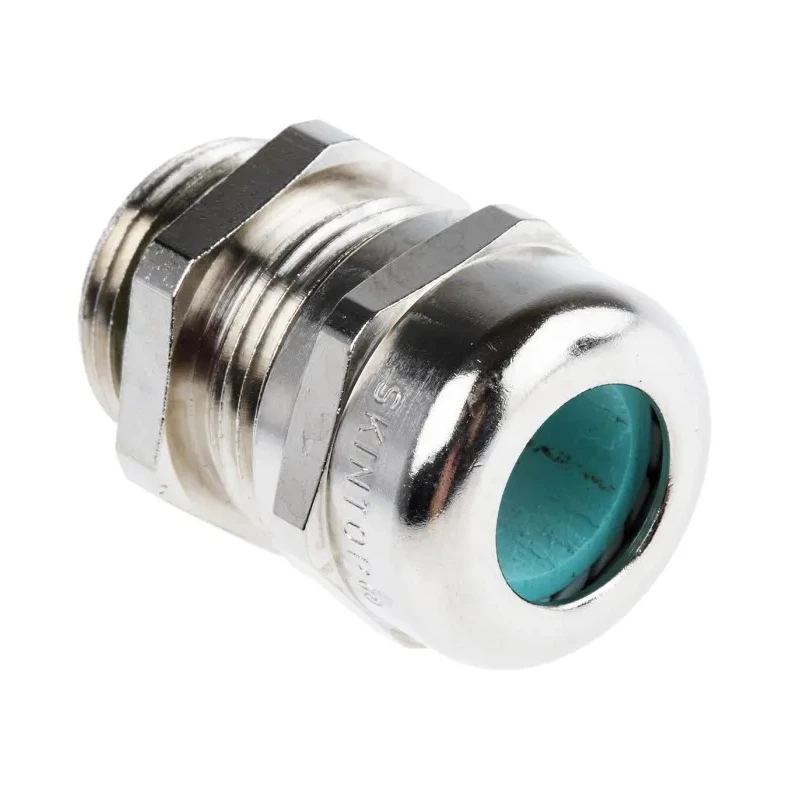

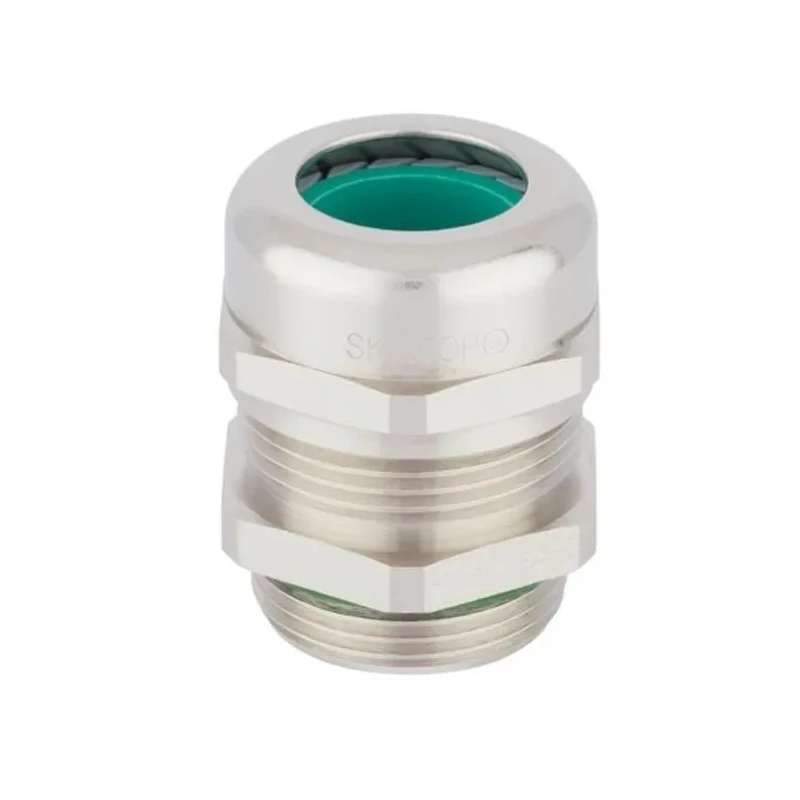

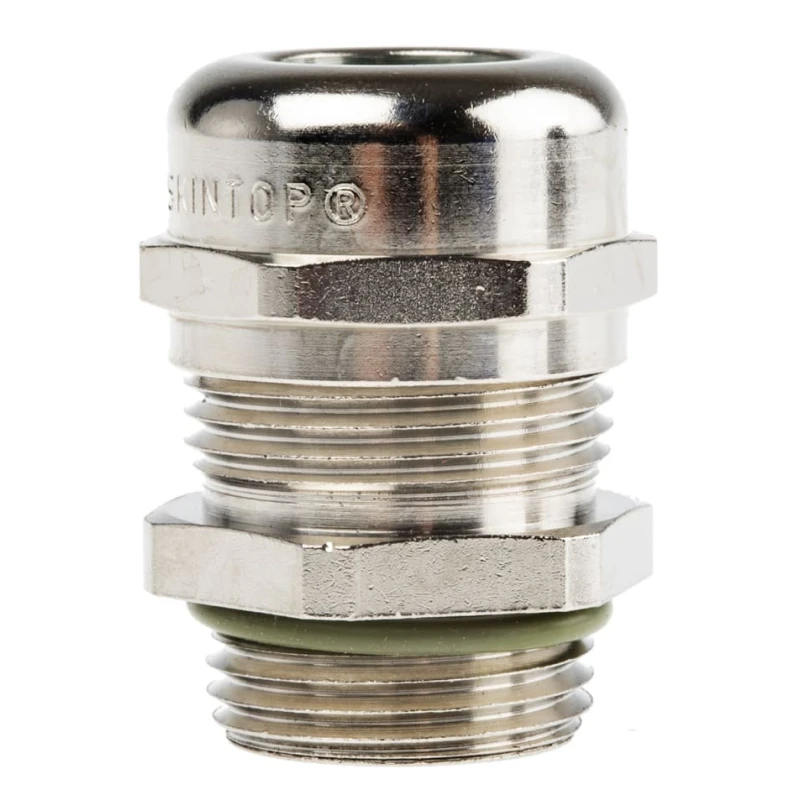

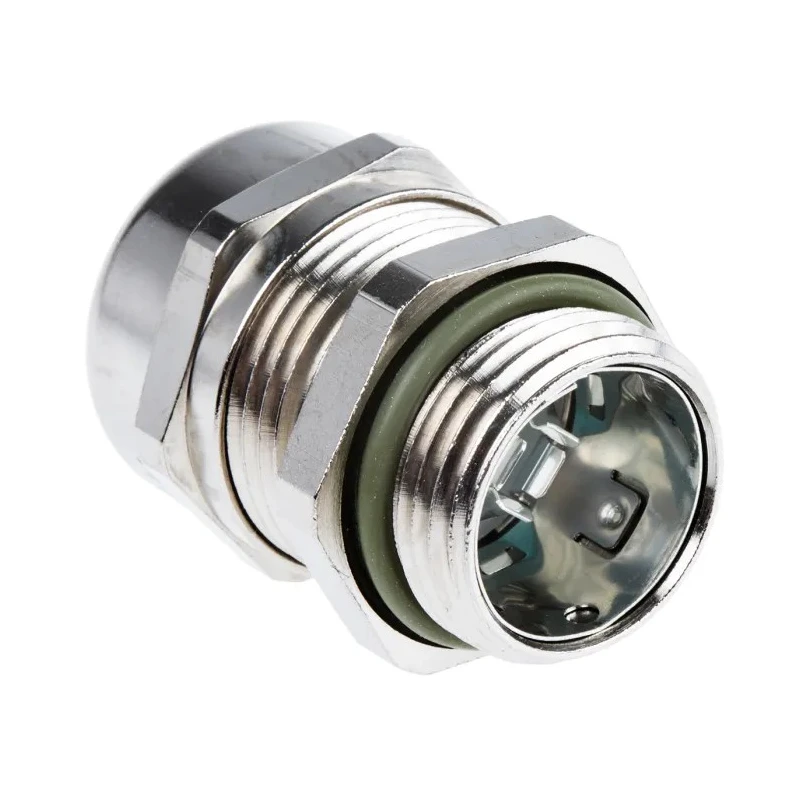

Lapp SKINTOP MS-HF Series Halogen Free Cable Gland Kit, 5 Pcs, M20 Thread, IP68, HL 3 Certified 53112532

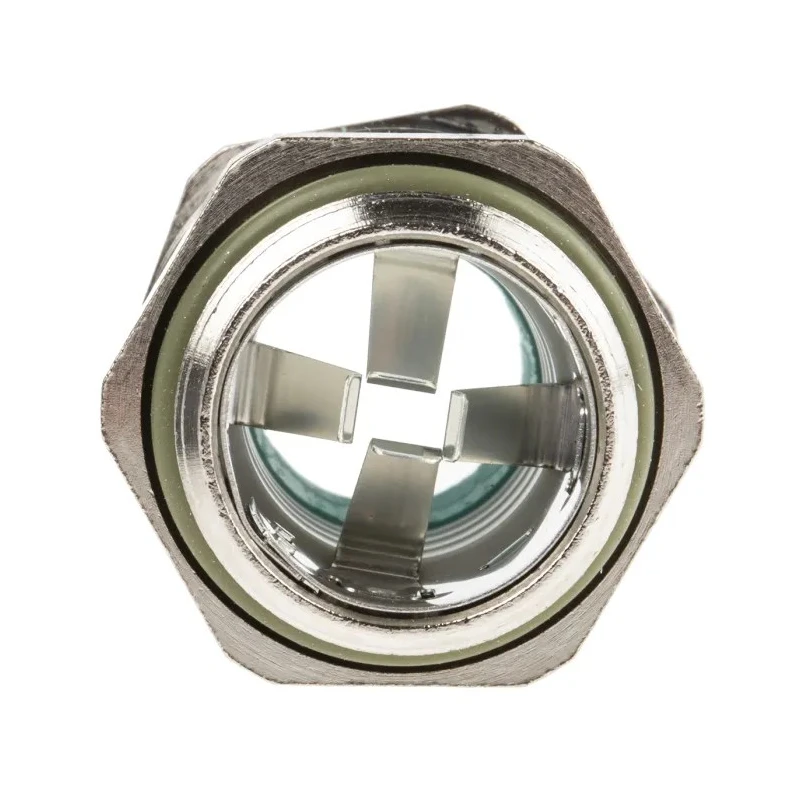

Lapp 53112532 SKINTOP MS-HF Series Halogen Free Cable Gland Kit is designed for securing and protecting copper-screened cables in demanding industrial and commercial environments. This kit includes 5 cable glands with M20 x 1.5 thread size, engineered to provide excellent strain relief while maintaining signal integrity through a flexible spring that contacts cable braid or shield to reduce electromagnetic interference.

Constructed from halogen-free, flame-retardant materials, this cable gland improves fire safety and is especially suitable for use in hazardous Class III areas where ignitable fibres, such as wood chips or fabric fibres, may be present. Its nickel-plated brass body and nut provide enhanced durability and corrosion resistance, crucial for long-term reliability in harsh conditions.

This product carries an IP68 rating which guarantees it is dust-proof and capable of withstanding temporary water immersion. The static operating temperature range from -40°C to +100°C ensures versatility across various environments.

Compliance with DIN EN 45545-2: 2016-02 & 2020-10 and DIN EN 45545-3: 2013-08 standards demonstrates its suitability for applications with strict fire retardancy regulations. The HL 3 hazardous area certification further endorses its safe use in critical industrial locations.

Applications include public transport systems, marine industry, commercial buildings, as well as automation and process control sectors. Installation is efficient via the M20 threaded design, compatible with standard control panels and machine fittings.

Manufactured with halogen-free, flame-retardant materials for improved fire safety. IP68 rated for dust-tight and temporary submersion protection. Durable nickel-plated brass construction for mechanical strength and corrosion resistance.

Certified for hazardous Class III locations with HL 3 rating. Supports temperatures ranging from -40°C to +100°C for harsh environments. Conforms to DIN EN 45545-2 and DIN EN 45545-3 fire safety standards. Includes 5 cable glands per kit with M20 threading for easy installation.

Ideal for transport, marine, commercial, and automation applications.
