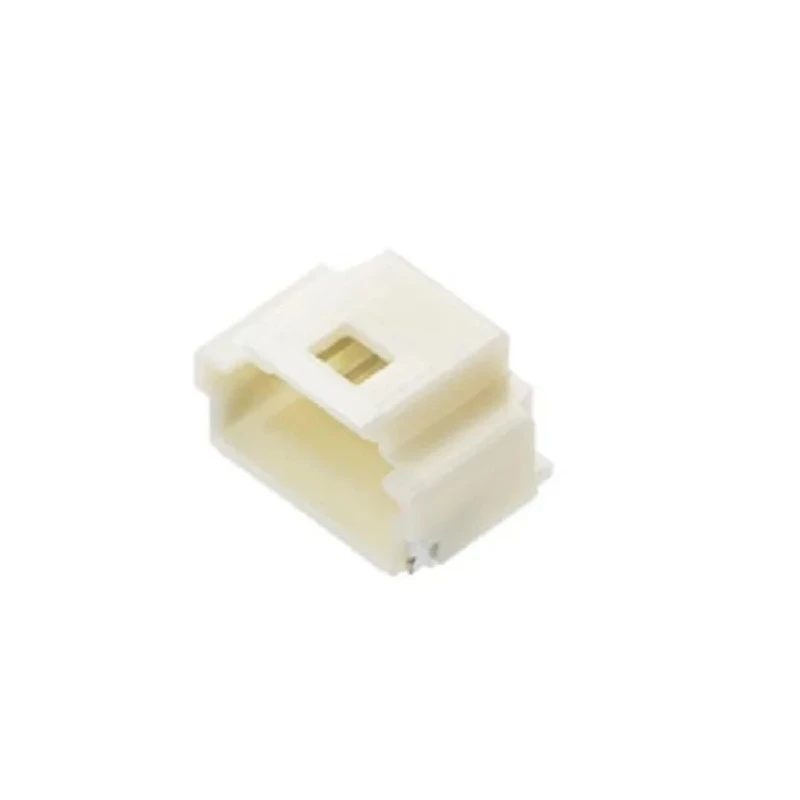

Molex Pico-Clasp PCB Header Right Angle Surface Mount, 7 Contacts, 1mm Pitch, Shrouded 501568-0707
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Pico-Clasp |
| Termination Type | Tin |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- Right angle surface mount PCB header designed for wire-to-board systems.
- Features 7 phosphor bronze contacts with tin plating for reliable connectivity.
- 1 mm pitch and single row configuration maximize space efficiency.
- Fully shrouded housing made from natural nylon enhances durability and safety.
- Supports up to 1A current and 100Vrms voltage for versatile applications.
- Operating temperature range from -40°C to 105°C suitable for demanding environments.
- Mating pin length of 2 mm for secure connections.
- Compliant with UL E29179 standards for quality assurance.
Product Description
Molex 501568-0707 Pico-Clasp Series PCB Header is a compact, right angle, surface mount connector designed for reliable wire-to-board connections in electronic assemblies. With its fully shrouded natural nylon housing and phosphor bronze contacts plated in tin, this header offers excellent durability and secure mating.
The 1 mm pitch and single row, 7-contact configuration allow high-density installation while minimizing footprint, making it ideal for space-constrained circuit boards. The header operates efficiently at currents up to 1A and voltages up to 100Vrms, providing robust performance in both industrial and commercial electronics.
Right angle orientation facilitates efficient PCB layout and assembly. Surface mount termination supports modern automated manufacturing processes. Shrouded housing prevents accidental shorting and ensures safe connections.
Operating temperature range from -40°C to 105°C supports use in harsh environments. Mating pin length of 2 mm ensures a secure fit with corresponding connectors. UL E29179 certification attests to the quality and safety of the product.
This PCB header is suitable for applications in industrial controls, instrumentation, consumer electronics, and automotive systems. Its wire-to-board design makes it perfect for signal connections where reliability is paramount. The natural nylon housing provides electrical insulation and mechanical protection, while the tin-plated phosphor bronze contacts ensure stable connectivity over time.
In manufacturing environments, the Molex Pico-Clasp header allows efficient reel packaging for automated insertion, improving production throughput. Typical industries utilizing these headers include electronics manufacturing, laboratory equipment, telecommunications, and embedded systems design.
Explore Molex's Pico-Clasp series for a variety of pitch, orientation, and contact count options. For more advanced PCB connectors, browse the EnvMart Electronics Components category to find solutions suited for your specific project needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 1A, making it suitable for various applications.
The operating temperature range is from -40°C to 105°C, allowing it to function in demanding environments.
It features 7 contacts, arranged in a single row configuration for efficient space utilization.
The pitch of this model is 1mm, which helps maximize space efficiency on circuit boards.
The housing is made from natural nylon, which enhances durability and safety.
Yes, it is compliant with UL E29179 standards, ensuring quality assurance.
It uses tin plating for the contacts, which provides reliable connectivity.
The mating pin length is 2mm, ensuring a secure connection with corresponding connectors.
This header utilizes a wire-to-board connector system, suitable for reliable connections in electronic assemblies.
The orientation is right angle, which facilitates efficient PCB layout and assembly.
The contacts are made of phosphor bronze and are plated with tin for enhanced connectivity.
The country of origin for this model is Japan.
