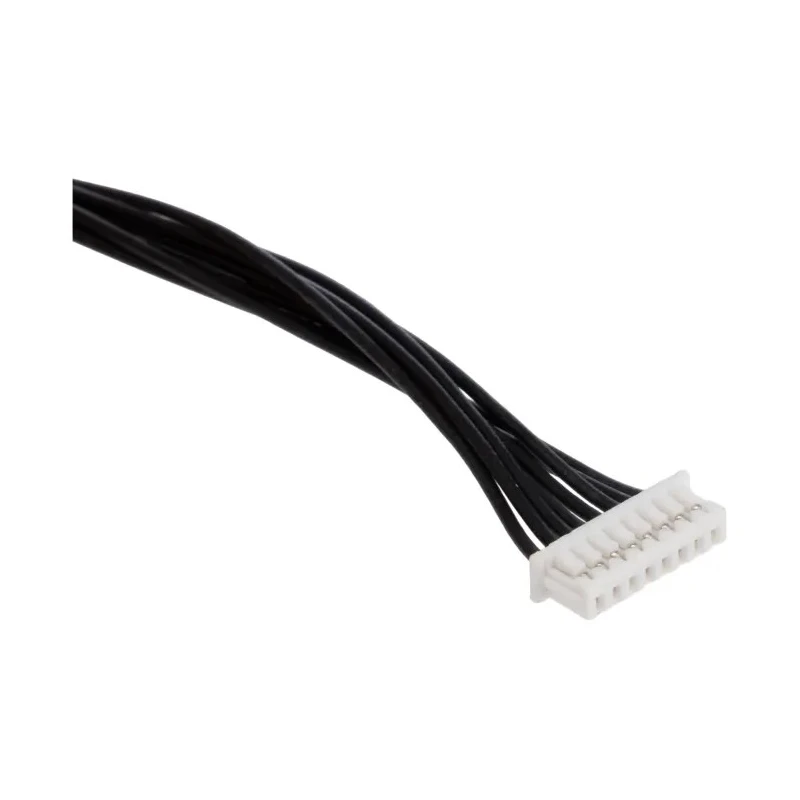

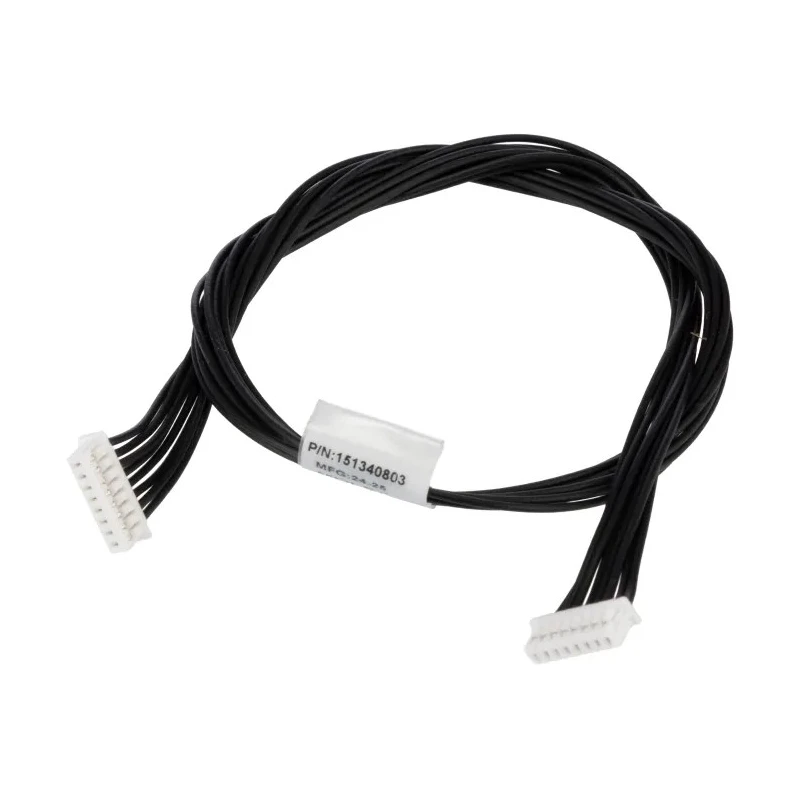

Molex 8 Way Female PicoBlade to 8 Way Female PicoBlade Wire to Board Cable, 300 mm, 125V, 15134-0803

Molex 15134-0803 8 Way Female PicoBlade to 8 Way Female Wire to Board Cable is engineered for dependable and space-efficient electrical connectivity across a range of applications. This assembly features dual female PicoBlade connectors, each offering eight contacts and a single row configuration, with a cable span of 300 mm to accommodate installations where compact wiring is paramount.

The cable is designed to support reliable signal and low-power transmission, rated for up to 125 V voltage and 1 A maximum current, making it suitable for the precise requirements of modern automation, control, and electronic equipment. The 1.25 mm pitch between contacts allows for dense circuit layouts and facilitates integration in devices where board space is a premium.

For durability and longevity, the cable features a robust black jacket and connectors made from phosphor bronze, which provide superior conductivity and corrosion resistance. Compliance with UL1061 and RoHS 2011/65/EU standards means the cable assures safety, quality, and environmental friendliness in demanding industrial or laboratory environments.

Features 8-way female PicoBlade connectors at both ends for secure wire-to-board and wire-to-wire connections. 300 mm cable length enables flexible routing and compact assembly configurations. Supports a working voltage of 125 V and a current of up to 1 A for diverse electronic applications.

UL1061 and RoHS certified for safety, quality, and compliance with European directives. Engineered for operation within a wide temperature range from -40°C to +85°C, ensuring performance in challenging environments.

This cable is particularly well suited to industrial automation systems, electronic device manufacturing, mechanical assemblies, and any project requiring reliable, space-saving wire-to-board interconnects. It is commonly used for connection between circuit boards, internal device wiring, and custom harnessing where compact form factor and reliable electrical transmission are critical.

The Molex 15134-0803 cable is part of the PicoBlade series, ensuring compatibility and integration within systems utilizing this connector standard. For engineers, system integrators, and assemblers, this cable provides an optimal balance of space-saving design, mechanical durability, and electrical performance.
