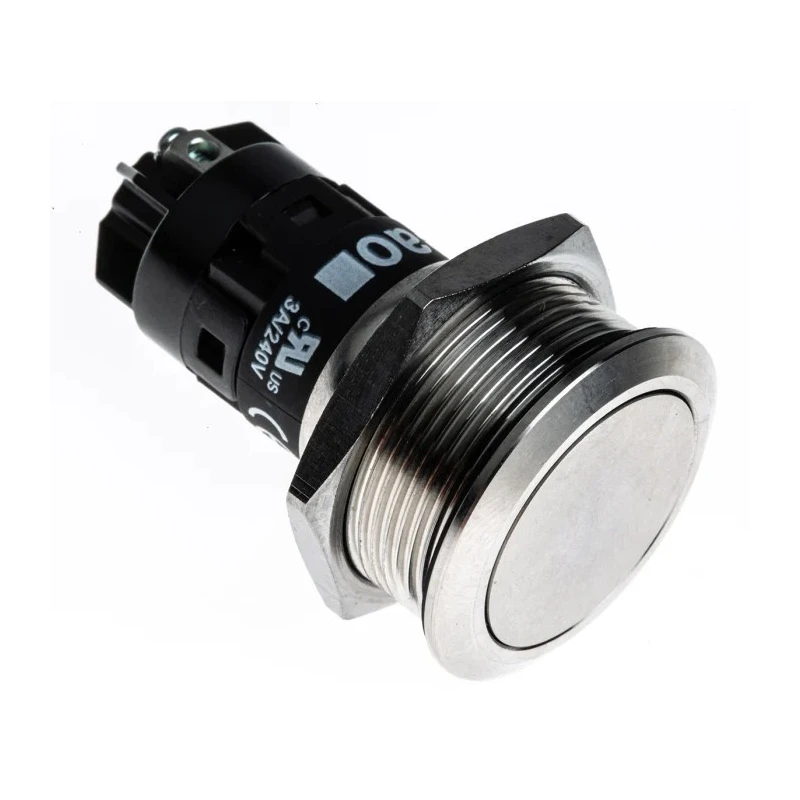

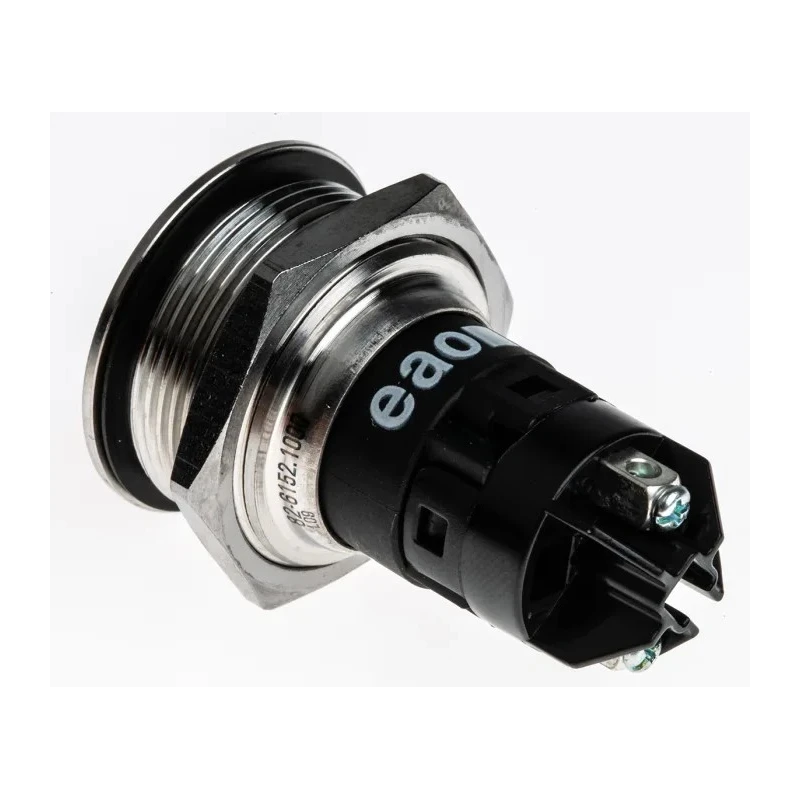

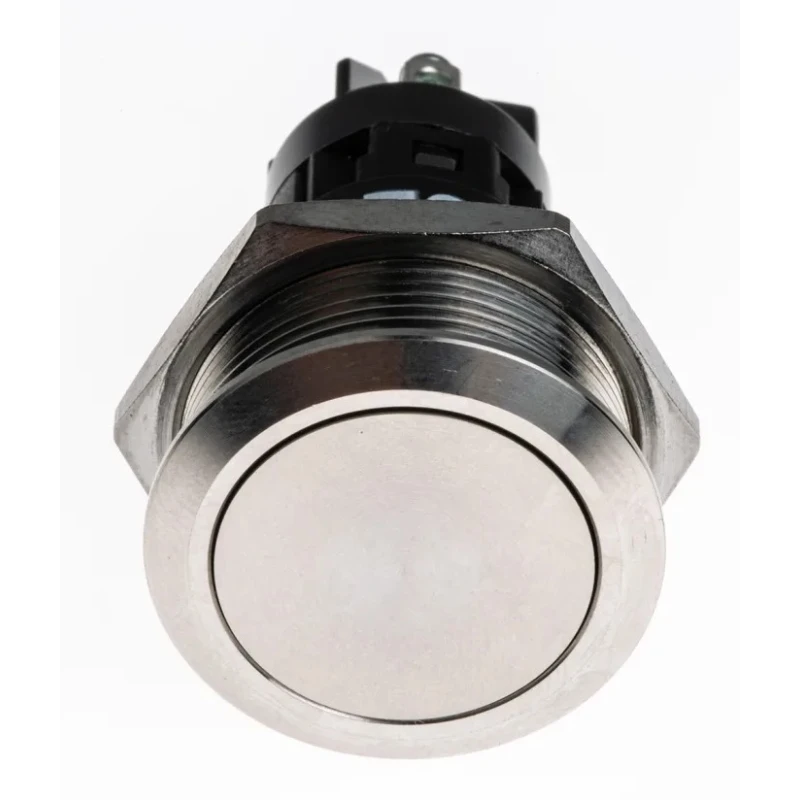

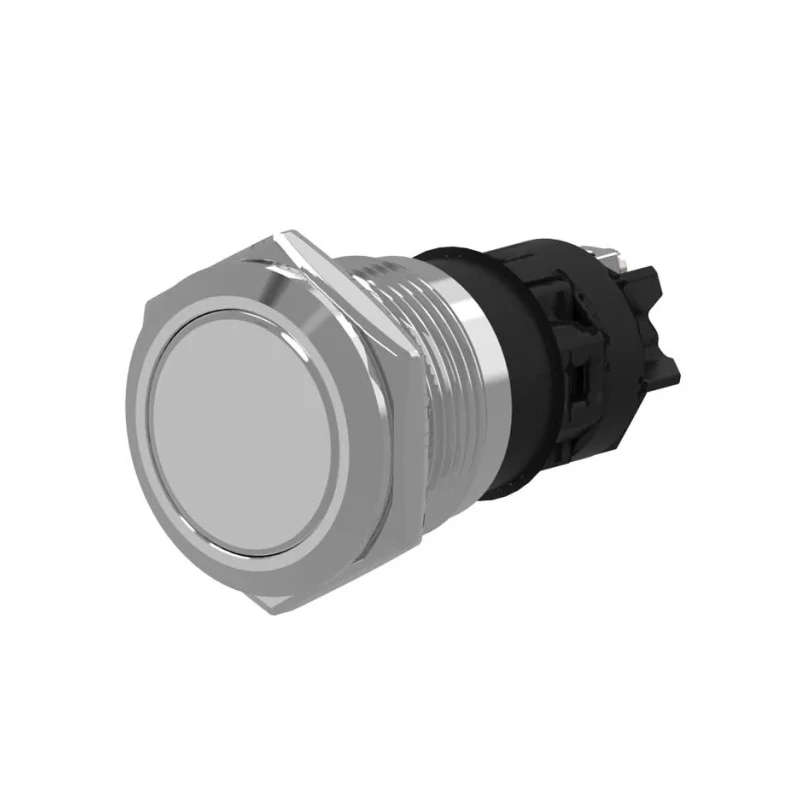

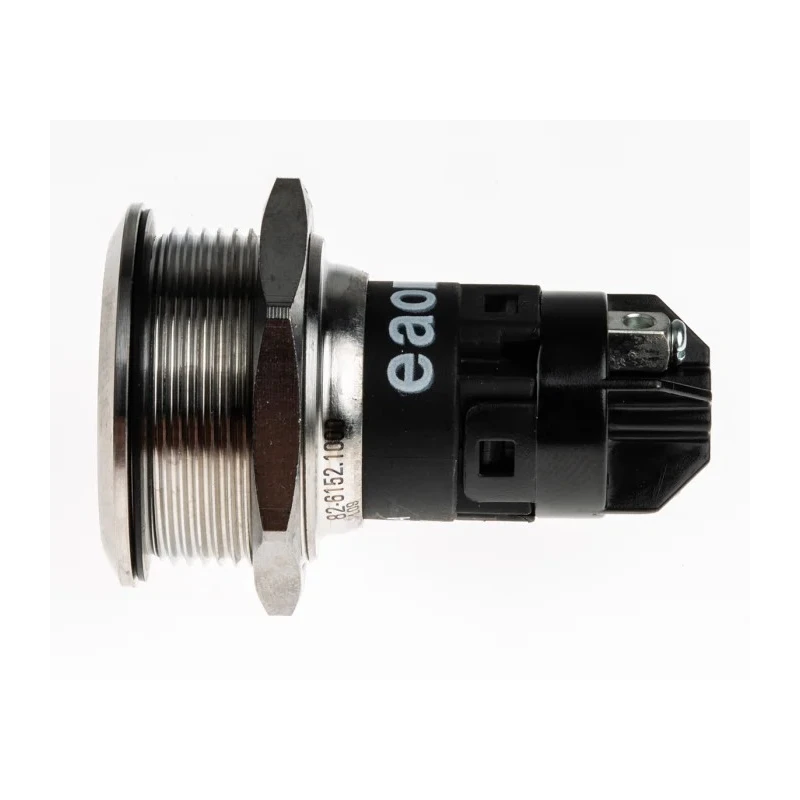

EAO 82 Series Push Button Switch Momentary Panel Mount SPDT 22 mm Cutout IP65 IP67 240V AC/DC Stainless Steel 82-6152.1000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Snap Action
Minimum Operating Temperature	-30°C
Panel Cutout Size	22 mm
Terminal type	Screw
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Designed for robust panel mounting applications requiring reliability.
Momentary operation provides direct, responsive control suited for temporary functions.
SPDT contact configuration for flexible circuit integration.
IP65 and IP67 ratings offer dust and water resistance for use in harsh environments.
Stainless steel round actuator is vandal resistant and corrosion proof.
Suitable for switching up to 240V AC and DC with a 3A rating.
Snap action mechanism delivers crisp tactile feedback and efficient switching.
Non-illuminated configuration for clear panel layout.

Product Description

EAO 82-6152.1000 Push Button Switch, Momentary, Panel Mount, SPDT, 240V AC/DC, IP65/IP67, 22 mm Cutout. This robust push button switch is engineered for demanding industrial, medical, and commercial environments where high reliability and durability are required. Featuring a stainless steel actuator in a round style, the switch resists corrosion, impact, and vandal damage, making it ideal for exposed installations.

With a momentary action, the button is only active while being pressed, providing precise user control for temporary operations. The SPDT contact configuration offers flexible circuit connectivity, suitable for machinery, panel controls, and automation systems. Its 22 mm cutout size supports compact panel designs, saving valuable space and allowing flush mounting to minimize accidental activations.

The switch is rated at IP65 and IP67, ensuring protection against dust ingress and immersion in water up to 1 meter for 30 minutes. This makes the unit appropriate for outdoor and industrial applications, including construction machinery, public kiosks, assembly lines, entertainment systems, and building management interfaces. The switch is also RoHS compliant, confirming adherence to international safety standards.

Designed for robust panel mounting in industrial, medical, and public applications. Momentary operation for temporary function control. SPDT contacts allow flexible integration into circuit designs. IP65/IP67 waterproof and dustproof for harsh environments.

Vandal resistant with IK10 impact rating and frontal protection. Supports switching voltages up to 240V AC and DC. Durable with snap action and tested for over 1 million cycles. Screw terminals enable easy wiring and secure connections.

Non-illuminated for simple interface design.

Applications include medical equipment, entertainment systems, commercial and industrial control panels, construction, and assembly lines. The snap action mechanism ensures rapid, reliable switching and tactile feedback, making it suitable for environments with high operational demands.
