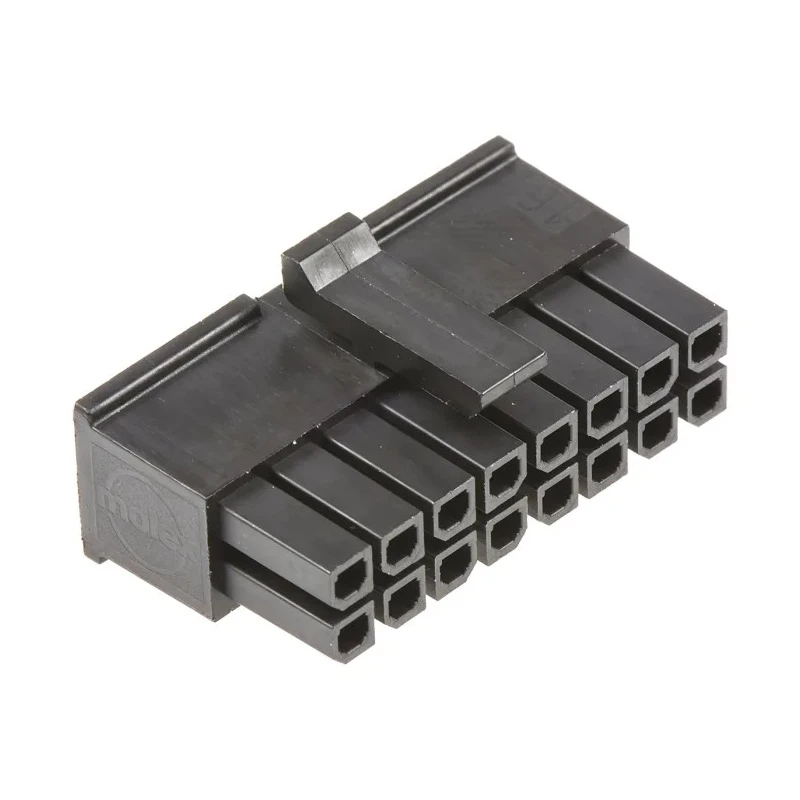

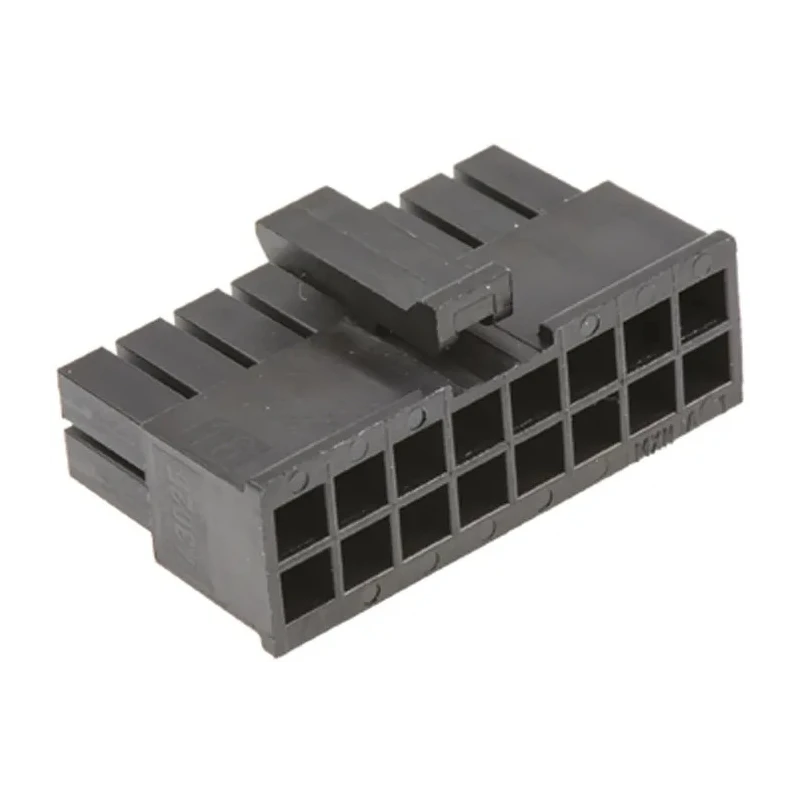

Molex Micro-Fit 3.0 Female Connector Housing, 3 mm Pitch, 16 Way, 2 Row Straight 43025-1600

Molex 43025-1600 Micro-Fit 3.0 Female Connector Housing is engineered for safe, reliable wire-to-wire and wire-to-board connections in industrial and electronics applications. With a 3 mm pitch and 16-way, 2-row straight configuration, this connector housing efficiently organizes signals while minimizing bulk on PCBs.

The robust housing is made from Polyethylene Terephthalate (PET), offering superior insulation and resistance against mechanical shocks and wear. This makes it an excellent choice for environments requiring durability and long-term performance.

16 contacts are arranged in a double-row design, providing flexible yet efficient wiring options for complex signal layouts. Its fully polarised design prevents incorrect mating and port damage, ensuring installation is straightforward and reliable, even by less experienced users.

With dimensions of 24.85mm (length) x 11.56mm (width) x 14mm (depth), the housing offers a compact footprint. Lightweight construction (1.68g) helps reduce strain on PCBs, supporting high-density assemblies without compromising mechanical integrity.

Durable Polyethylene Terephthalate housing offers exceptional insulation and mechanical strength. 16-way, double-row contacts enhance efficient wiring and signal organization. Compact dimensions: 24.85mm length, 11.56mm width, and 14mm depth, ideal for PCB applications.

Fully polarised design prevents mismating and misalignment, ensuring installation reliability. Supports maximum current up to 5A per contact for high-current demands. Straight cable mount orientation simplifies assembly for wire-to-board setups.

Wide operating temperature range from -40°C to +105°C suitable for harsh environments. Positive locking feature delivers a secure connection during use. Compatible with Micro-Fit 3.0 Receptacle series and panel mounting.

Practical applications include medical equipment, agricultural machinery, automotive industry, and diverse industrial use cases requiring robust PCB connectivity. Its broad temperature range makes it ideal for extreme environments, while the positive locking and polarization deliver added safety during installation.
