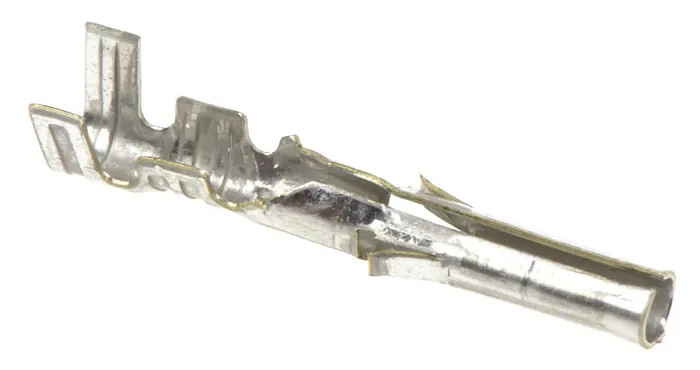

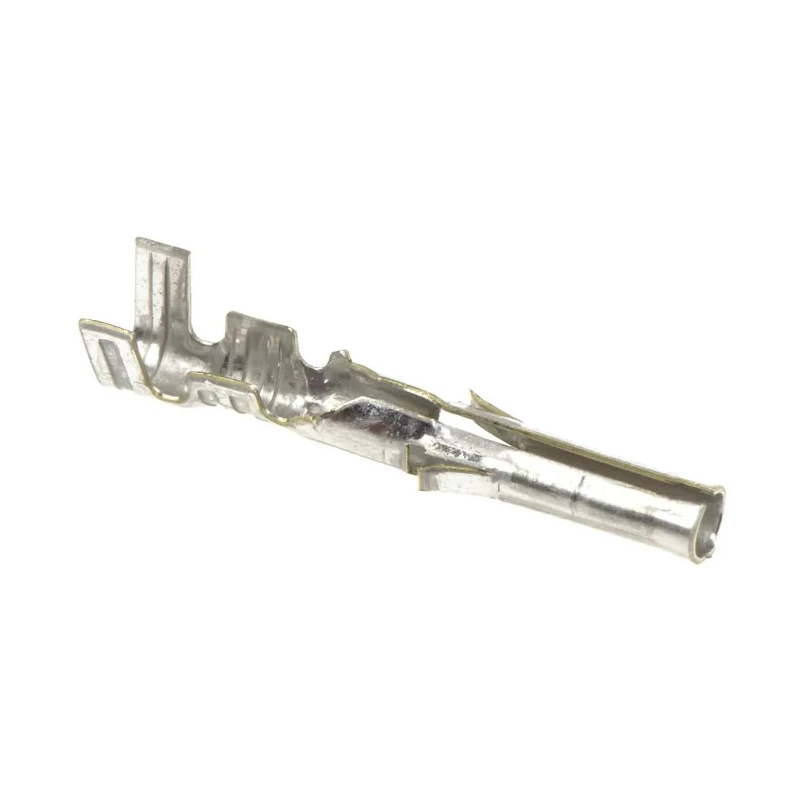

Molex Female Crimp Terminal 1561 Series 24 - 18 AWG Tin-Plated Brass 02-06-1103
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Colour | Neutral (natural nylon) |
| Gender | Female |
| Contact Material | Brass |
| Current Rating | 5V |
| Series | 1561 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Shell Material | Nylon UL 94-V2 |
| For Use With | STANDARD .062 in Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 3.2mΩ |
Key Features
- This female crimp terminal is part of Molex's 1561 series.
- Compatible with STANDARD .062 in connector housing for reliable connections.
- Supports wire sizes from 24 AWG minimum to 18 AWG maximum for flexible usage.
- Tin plating enhances durability and protects against corrosion.
- The brass contact material ensures strong conductivity and mechanical resilience.
- Rated for up to 250V and currents up to 5V maximum.
- Withstands operating temperatures from -40°C to 105°C for versatile environments.
- Designed for quick crimp installation without soldering.
Product Description
Molex 02-06-1103 Female Crimp Terminal is engineered for high performance and dependable connections in a variety of electronic and industrial setups. As part of Molex's 1561 series, this crimp terminal is suitable for wires ranging from 24 to 18 AWG, making it adaptable to different cable diameters and requirements. The tin-plated brass contacts offer an ideal balance between electrical conductivity and corrosion resistance, ensuring long-lasting operation.
Designed for use with STANDARD .062 in connector housings, this terminal features a passive friction lock mechanism that secures it within the housing and maintains a solid electrical connection. The crimp termination method allows for fast and airtight installation without the need for soldering, creating a robust bond that won’t degrade over time.
This crimp terminal is easy to install, requiring no soldering. Supports a wide range of wire sizes for flexible integration. Tin-plated contacts resist rust and enhance reliability. Brass material ensures both strength and conductivity.
Rated for adverse temperatures from -40°C to +105°C. Ideal for use in consumer electronics, telecom networks, automotive systems, and industrial automation. Compatible with up to 36 circuit housing configurations for scalable installations.
Neutral nylon shell provides insulation and meets UL 94-V2 standards.
The Molex 1561 Series is used across a variety of industries, including consumer electronics, telecommunications, automotive, and industrial automation. Its round terminal allows orientation in any direction, providing enhanced adaptability in assembly processes.
Whether used for power or signal transmission, the terminal guarantees a secure, corrosion-resistant interface. The product is suitable for demanding environments thanks to its wide operating temperature range and durable shell material.
Browse more Crimp Terminals and Molex components on EnvMart for reliable wiring and connector solutions suited to industrial, commercial, and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes from 24 AWG minimum to 18 AWG maximum, allowing for flexible usage in various applications.
It is rated for a maximum voltage of 250V, making it suitable for a variety of electrical connections.
The crimp terminal features brass contact material for strong conductivity, and it is tin-plated to enhance durability and protect against corrosion.
This model can operate within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
It is designed for use with STANDARD .062 in connector housings, ensuring reliable connections.
This terminal uses a crimp termination method, allowing for quick installation without the need for soldering.
The maximum current rating for this crimp terminal is 5V, suitable for various electrical applications.
The maximum contact resistance for this terminal is 3.2mΩ, ensuring effective electrical conductivity.
The shell is made from nylon that meets UL 94-V2 standards, providing insulation and protection.
The crimp terminal is manufactured in India, ensuring quality production standards.
This model is suitable for use in consumer electronics, telecommunications, automotive systems, and industrial automation.
The round terminal design allows for orientation in any direction, providing enhanced adaptability during assembly processes.
