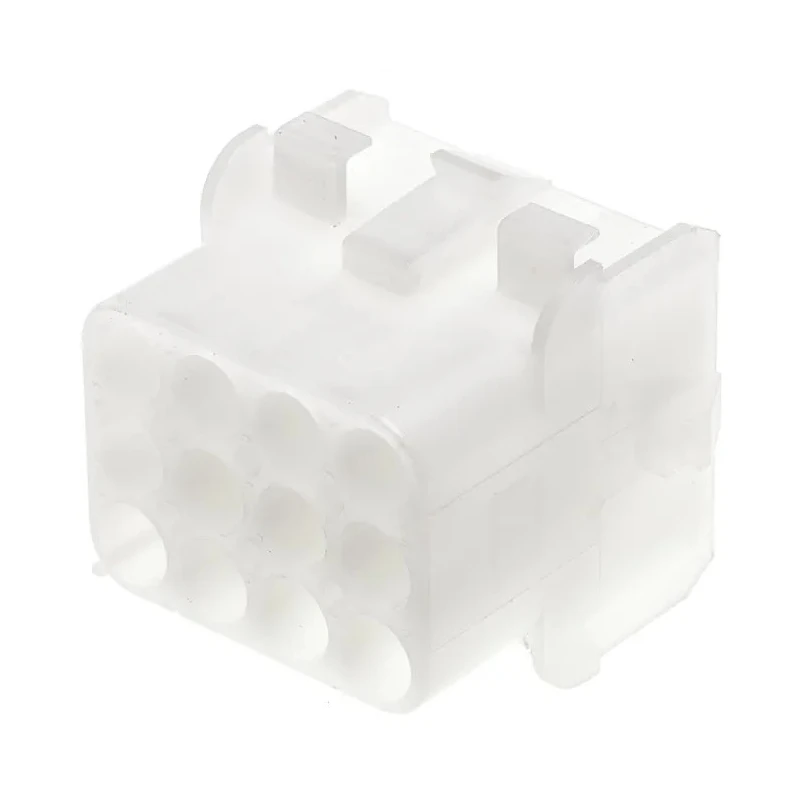

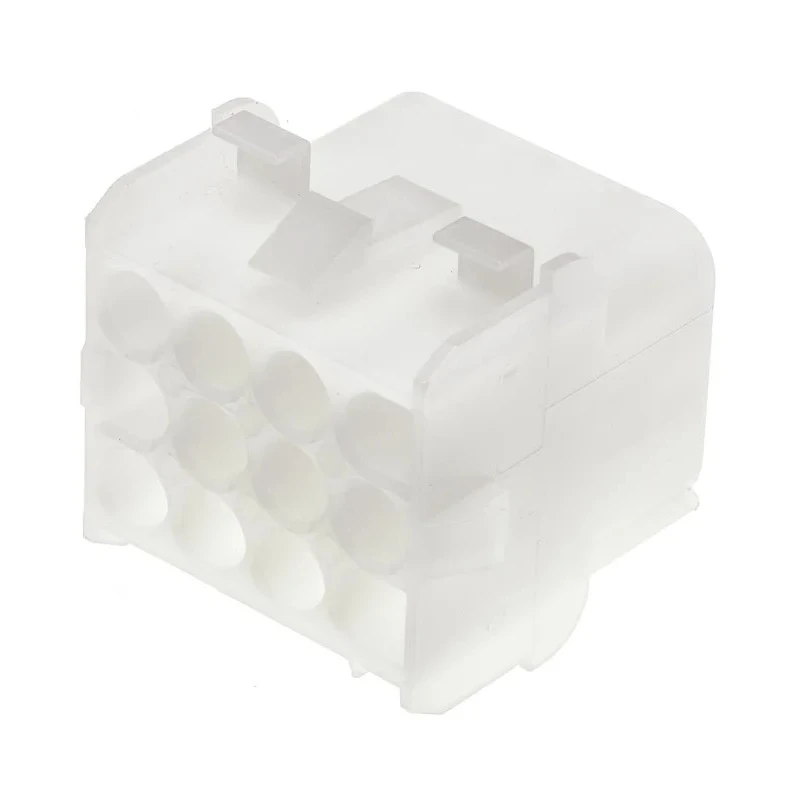

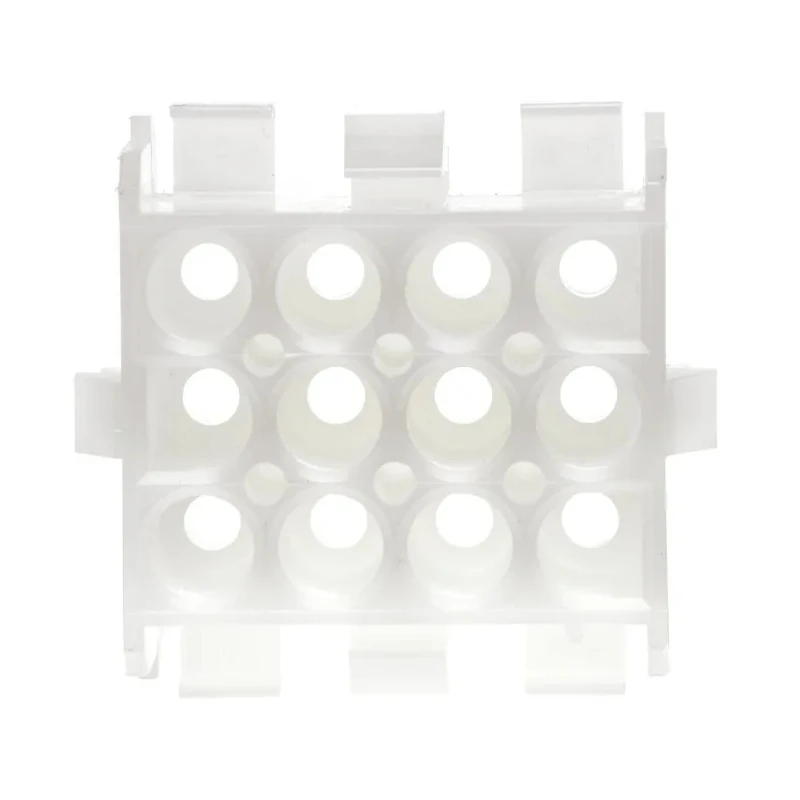

TE Connectivity Universal MATE-N-LOK Female Connector Housing, 6.35 mm Pitch, 12 Way, 3 Row Straight 1-480709
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 27.43mm |
| Model | 1-480709 |
| Width | 25.91mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Universal MATE-N-LOK |
| Number of Rows | 3 |
| Pitch | 6.35mm |
| For Use With | 6.35 mm Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
| TE Connectivity, MATE-N-LOK Female PCB Housing, 6.35mm Pitch, 12 Way, 3 RowBrand | TE Connectivity |
Key Features
- Female connector housing for wire-to-wire, wire-to-panel and wire-to-board connections.
- Accommodates 12 contacts in a 3 row straight configuration for robust power and signal distribution.
- Panel mount design with snap-lock latches enables secure installation and quick release.
- Made from strong nylon material, ensuring high mechanical durability.
- Polarisation ensures accurate mating and quick locking with an audible click.
- Suitable for 6.35 mm Centerline soft shell pin and socket connectors.
- UL94V-0 and UL94V-2 flammability rated for enhanced safety in applications.
- Widely used in consumer electronics, commercial power supply systems, HVAC, lighting, and portable devices.
Product Description
TE Connectivity presents the Universal MATE-N-LOK Female Connector Housing, model 1-480709, designed to offer a reliable and versatile solution for wire-to-wire, wire-to-panel, and wire-to-board applications. Featuring a pitch size of 6.35 mm, this connector housing accommodates 12 contacts arranged in a 3 row straight configuration, making it ideal for both power and signal distribution in advanced electronic setups.
The panel mount format, combined with snap-lock latches, ensures secure mating and convenient quick release during maintenance or reconfiguration. Manufactured from high-grade nylon, the housing material delivers outstanding durability, mechanical strength, and resistance to environmental stress. Polarisation and clear locking mechanisms guarantee proper, reliable connection every time.
Female housing with 12 contact capacity, arranged in 3 straight rows. Panel mount style with snap-lock latches and quick release features for operational ease. Durable nylon (Nylon 66) construction for long-lasting performance.
6.35 mm pitch supports compatibility with industry-standard pin and socket connectors. UL94V-0 and UL94V-2 flammability ratings for safety-conscious installations. Clear audible click for successful mating and reliable connection integrity.
Compact and robust format suitable for high-density PCB designs. Polarisation to prevent misalignment and ensure accurate mating every time.
This connector housing is suitable for a wide range of industrial environments, including consumer electronics, commercial power supply systems, HVAC installations, lighting fixtures, and portable electronic devices. It is also frequently used in manufacturing, laboratory, and automation applications that require reliable connector housings.
Applications include PCB connector housings, wire harness assembly, and robust power connections in industrial settings. The Universal MATE-N-LOK Series is recognized for ease of installation and production efficiency.
Explore more TE Connectivity connector solutions and PCB connector housings in the EnvMart Electronics & Electricals category.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 6.35 mm.
It accommodates 12 contacts arranged in a 3 row straight configuration.
The housing is made from nylon, specifically Nylon 66, ensuring high mechanical durability.
This model features a panel mount design with snap-lock latches for secure installation.
The dimensions are 27.43 mm in length and 25.91 mm in width.
The orientation of this connector housing is straight.
It is suitable for wire-to-wire, wire-to-panel, and wire-to-board connections in various applications including consumer electronics and HVAC systems.
Yes, it is designed for use with 6.35 mm centerline soft shell pin and socket connectors.
The housing has UL94V-0 and UL94V-2 flammability ratings for enhanced safety.
Polarisation features ensure accurate mating and an audible click confirms successful connection.
This model belongs to the Universal MATE-N-LOK series.
The country of origin for this connector housing is India.
