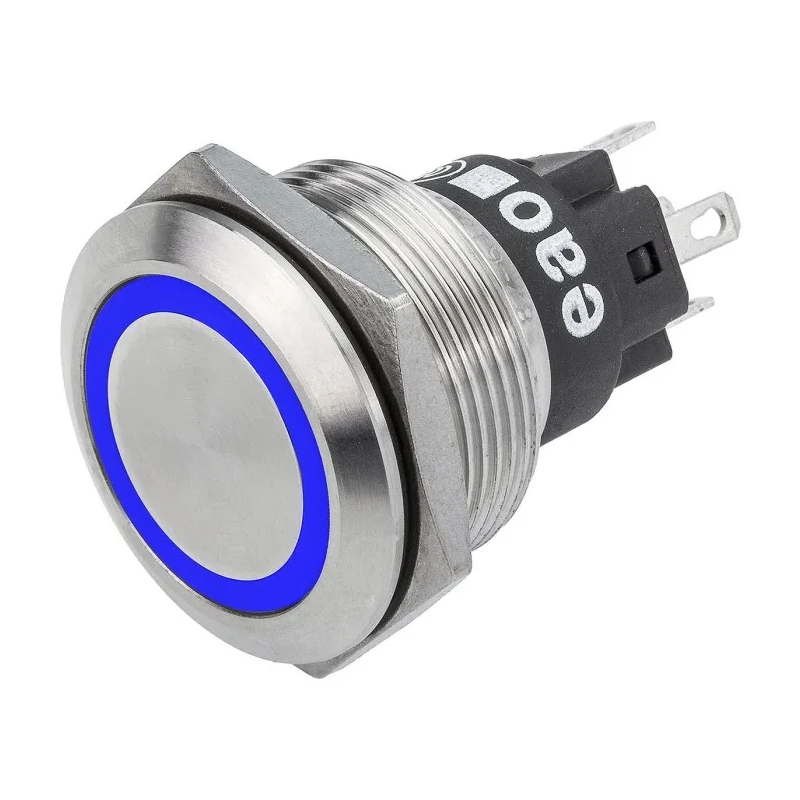

EAO 82 Series Illuminated Push Button Switch, SPDT, Blue LED, 22 mm Cutout, IP65/IP67, 240 V Momentary Panel 82-6151.1126

The EAO 82-6151.1126 is an industrial-grade illuminated push button switch engineered for panel mounting in demanding environments. Designed with a robust stainless steel housing, it features momentary switching, SPDT contact configuration, and a blue LED for clear status indication. This switch fits a standard 22 mm cutout and provides snap-action operation.

Built for exposure to dust, water and vandalism, it meets IP65 and IP67 requirements, ensuring durability against harsh installations both indoors and outdoors. The IK10 impact resistance further makes it highly suitable for exposed public areas or machinery that require reliable operation under frequent physical contact.

The switch operates at voltages up to 240 V DC and 240 V AC, with secure contacts and crisp tactile feedback every time it is actuated. The silver actuator and optional illumination make it easily identifiable in control panels, building management systems, audio/video equipment, and medical devices.

Installation is straightforward with a 34.5 mm length and optimal compatibility for most panel designs, thanks to its series 82 interface. The momentary action is ideal for applications requiring short, reliable impulses, such as control commands or emergency stops in industrial systems.

Additional technical benefits include wide temperature tolerance (from -30°C to 70°C), vandal-resistant construction, and proven high cycle life (over 1 million cycles). Contacts are silver alloyed or gold plated (optionally), ensuring reliable switching even at low voltages and currents.

Designed for panel mounting in industrial, commercial, public, and medical applications. Momentary operation for temporary control or signaling. SPDT contact system provides flexible integration in automation and control circuits.

Dust and moisture protection rated IP65/IP67 frontally, suitable for exposed environments. Robust stainless steel construction with IK10 impact resistance for anti-vandal installations. Blue LED illumination offers clear identifier for switch status.

Standard 22 mm cutout ensures compatibility with control cabinets and panels. Operating voltage: 240 V DC/AC, Snap Action mechanism. Rated for 3 A switch contact current. Wide temperature range: -30°C to +70°C supports both outdoor and indoor control systems.

Typical use cases include exposed public systems, medical equipment, building management installations, machinery and factory automation, audio/video device controls, and safety/emergency controls. Engineers, panel builders, and maintenance teams will appreciate its durability and reliability in high-cycle, demanding installations.
