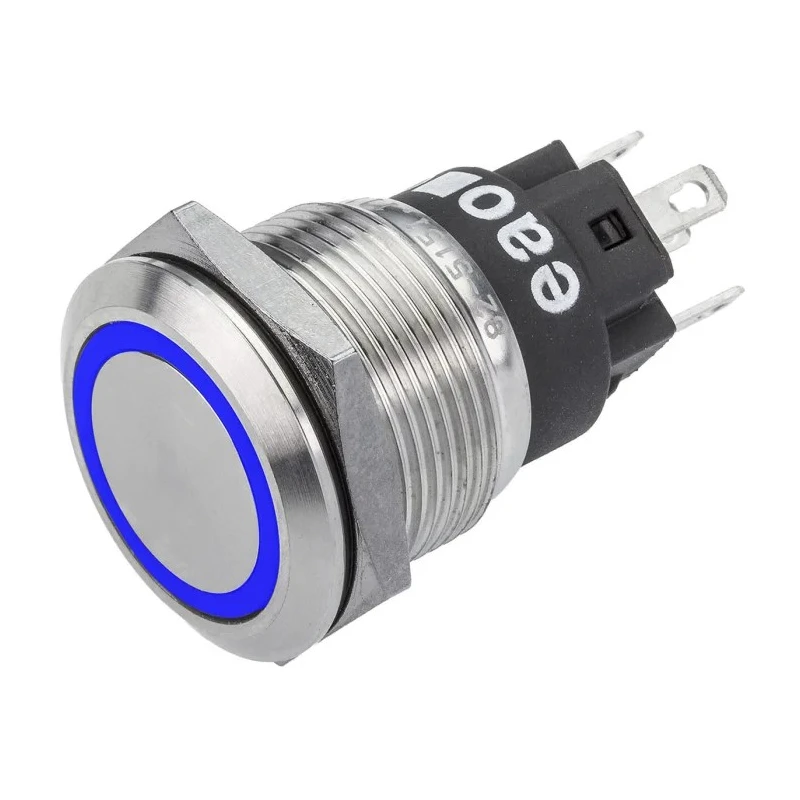

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19 mm Cutout, SPDT Blue LED, IP65, IP67 82-5151.1124



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	UL, cUL, CB, CCC
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Features momentary operation for temporary switching control.
Blue LED ring provides clear visual indication on control panels.
Round, silver actuator in robust stainless steel housing ensures durability.
IP65 and IP67 rated for dustproof and water-resistant performance under harsh environments.
SPDT contact configuration allows flexible circuit control.
Rated for 240V AC/DC operation and 3A switching current.
Flush mount style prevents accidental activation.
Vandal resistant with IK10 impact rating for exposed public installations.

Product Description

The EAO 82-5151.1124 is an illuminated push button switch engineered for reliable momentary switching in industrial and commercial panels. This Series 82 model offers robust stainless steel construction with a striking round silver actuator, making it suitable for demanding environments and exposed public applications.

Designed for flush mounting, the switch fits easily into a 19 mm cutout, preventing accidental actuation and maintaining clean panel aesthetics. The blue LED ring illumination ensures visibility, allowing operators to quickly locate the control function amongst crowded panels and machinery interfaces. The momentary operation provides enhanced control for processes requiring temporary engagement, such as resets and machine function triggers.

With SPDT contact configuration and a rated switching voltage of 240V AC/DC at 3A, this switch accommodates a wide range of high and low voltage applications. The solder terminals guarantee secure vibration-proof electrical connections, suitable for both factory automation and onsite equipment.

Environmental resilience is a core feature: the switch meets IP65 and IP67 ingress protection, meaning it is dustproof and fully protected against immersion in water up to 1 meter for 30 minutes, ideal for wash-down areas, outdoor kiosks, and chemical production facilities. Its vandal resistant IK10 impact rating makes it highly reliable for installations in public spaces, building management systems, medical equipment, and audio/video devices.

Additional benefits include crisp, tactile feedback, over 1 million cycles of operation, and flexible contact options for low voltage and low current control. The switch operates reliably from -30°C to 70°C, with a compact length of 32.5 mm minimizing strain on mounting surfaces.

This anti-vandal push button is used in industrial machinery, laboratory equipment, public kiosks, labeling machines, and audio-visual devices. Its UL, cUL, CB, CCC certifications further demonstrate suitability for regulated and international installations.
