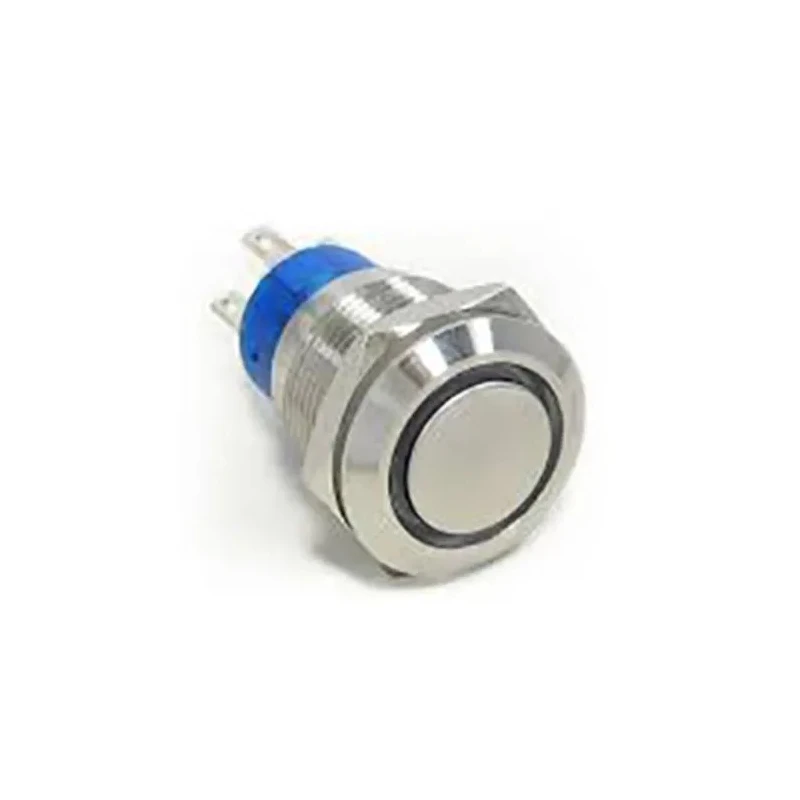

TE Connectivity AV22 Series Push Button Switch, Latching, Panel Mount, 22.2 mm Cutout, DPDT, IP67, Silver, 250V AC,
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Lug Ring |
| Standards/Approvals | UL (E46765), REACH Compliant, EU ELV Compliant |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Sturdy push button design with latching operation for secure actuation.
- Panel mount friendly with a 22.2 mm cutout size.
- Double pole double throw (DPDT) contact configuration ensures versatile circuit control.
- IP67 enclosure rating for dust and water resistance in industrial applications.
- 250V AC contact voltage supports high voltage switching needs.
- Silver actuator provides a modern, vandal-resistant appearance.
- Operating temperature range from -20°C to 55°C.
- Suitable for control panels, elevators, instrumentation, and communication equipment.
Product Description
TE Connectivity AV2221000Q04 Push Button Switch is a high-performance panel-mount switch engineered for durable, reliable operation in demanding industrial and commercial environments. With latching actuation, this switch maintains its position after being pressed, making it ideal for applications requiring maintained electrical states without continuous operator involvement.
The AV22 Series is renowned for its robust construction, combining a silver-colored actuator with anti-vandal design, offering both security and premium aesthetics for control panels and communication systems. The 22.2 mm panel cutout allows straightforward integration into existing equipment, while the DPDT contact configuration expands circuit flexibility, making it suitable for complex control schemes.
This switch is equipped with IP67 sealing, providing outstanding protection against dust, water, and harsh conditions. It is UL, REACH, and EU ELV compliant, ensuring global standards for safety and environmental stewardship. Operating reliably from -20°C to 55°C, the AV2221000Q04 adapts to a wide range of environmental settings.
Rated for 250V AC and a 3A contact current, this switch accommodates moderate voltage requirements found in control and instrumentation panels. The lug ring terminal supports secure wiring, reinforcing long-term operational reliability. Its anti-vandal features and rear-mounting jam nut offer additional protection against tampering and external damage.
Typical use cases include control panels for industrial plants, elevator and escalator systems, instrumentation devices, and communication equipment. The versatile DPDT configuration enables precise switching for multifaceted circuits, making the AV2221000Q04 a preferred solution for engineers seeking a dependable and adaptable push button switch.
Explore more industrial switches and control components from TE Connectivity in the Push Button Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The switch requires a panel cutout size of 22.2 mm for proper installation.
It has an IP67 rating, providing excellent protection against dust and water ingress.
The operating temperature range is from -20°C to 55°C, making it suitable for various environments.
It features a silver push button actuator, designed for a modern and vandal-resistant appearance.
The maximum contact current rating is 3A, suitable for moderate voltage applications.
Yes, it is UL, REACH, and EU ELV compliant, ensuring adherence to global safety and environmental standards.
It uses a lug ring terminal type for secure wiring connections.
The switch is rated for a contact voltage of 250V AC, accommodating high voltage switching needs.
It is suitable for control panels, elevators, instrumentation, and communication equipment.
This model operates with a latching mechanism, maintaining its position after being pressed.
The product is manufactured in China.
