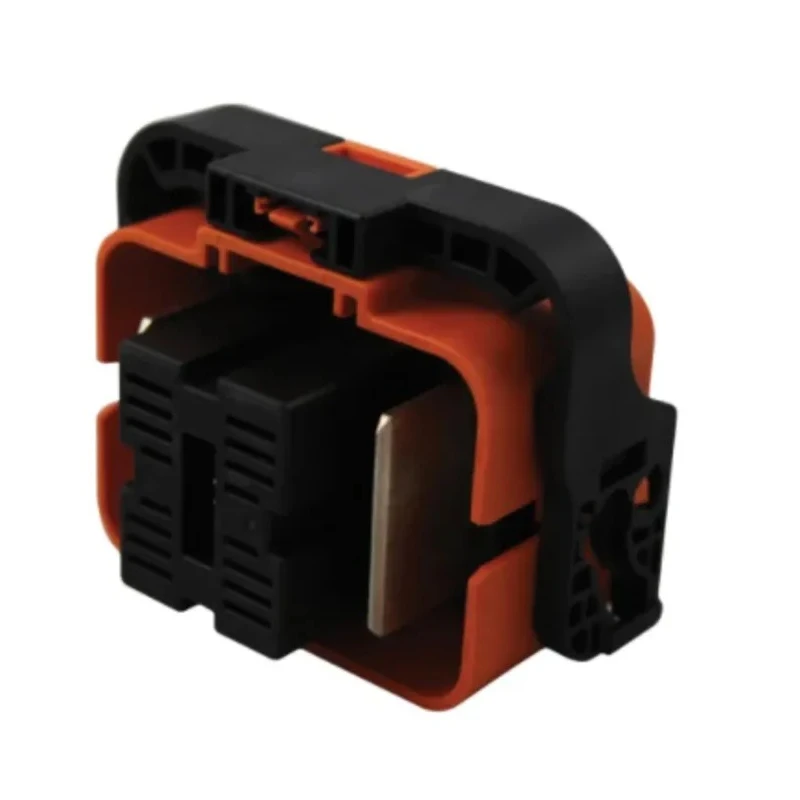

Amphenol Industrial Plug-In EV Service Disconnect, 350A, 690V, Mini Manual, HVIL, IP69K/IP67, HV Battery Pack, MINIMSDM350

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial Plug-In EV Service Disconnect, 350A, 690V, Mini Manual, HVIL, IP69K/IP67, HV Battery Pack, MINIMSDM350

Name: Amphenol Industrial Plug-In EV Service Disconnect, 350A, 690V, Mini Manual, HVIL, IP69K/IP67, HV Battery Pack, MINIMSDM350
Brand: Amphenol Industrial
SKU: 88523



Category Automotive Electrical Connectors Brand Amphenol Industrial Condition New

Specifications

Country of Origin	Germany
Voltage	690V
Brand	Amphenol Industrial
Colour	Orange
Orientation	Straight
Height	73.5mm
Model	MINIMSDM350
Depth	47.9mm
IP Rating	IP69K, IP67
Connector Type	Mini Manual Service Disconnect
Width	91mm
Mount Type	Flange
Standards	USCAR-2. USCAER-37, LV-215
Current Rating	350A
Series	MSD
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
For Use With	HV Battery Pack
Contact Gender	Male
Connector Gender	Male
Better World Claim	Renewable Energy Solution
Termination Method	Plug-In

Key Features

Designed for use with HV battery packs in plug-in hybrid and electric vehicles.
Rated for 350A and 690V maximum operation, supporting high-power automotive systems.
Mini manual service disconnect with integrated HVIL for enhanced safety.
IP69K and IP67 ingress protection ensures durability under harsh conditions.
Operates within a wide temperature range of -40°C to 70°C.
Flange mount and plug-in termination method for easy installation.
Durable over 50 mating cycles for long service life.
Dual-channel cooling structure reduces temperature rise during operation.

Product Description

The Amphenol Industrial MINIMSDM350 Plug-In EV Service Disconnect is a specialized connector designed for high voltage battery pack isolation within plug-in hybrid and fully electric vehicles. Engineered to support a current rating of 350A at voltages up to 690V, this unit ensures safe service operations and robust power delivery.

This mini manual service disconnect features a high voltage interlock loop (HVIL) that adds a critical safety measure, guaranteeing the HV circuit is interrupted before separation. Its two-stage lever mechanism simplifies servicing and minimizes the risk of accidental short circuits or operator exposure to high voltage.

The connector is constructed for automotive environments requiring strong ingress protection, with certified IP69K and IP67 ratings to resist dust, high-pressure water, and industrial contaminants. Its dual-channel design and unique cooling structure promote lower temperature rises during extended operation, while flange mount and plug-in termination facilitate easy integration.

The MINIMSDM350 offers a compact footprint (height 73.5mm, depth 47.9mm, width 91mm) and high durability for more than 50 mating cycles. Suitable for renewable energy systems where reliability is essential, it can be front- or rear-mounted depending on your installation requirements. The vibrant orange colour aids visibility and compliance with EV safety standards.

Key features include male contact/connector gender, straight orientation, and compatibility with MSD series. Standards compliance includes USCAR-2, USCAER-37, and LV-215. The operating temperature range of -40°C to 70°C ensures performance in extreme automotive settings and laboratory testing scenarios.

Applicable uses encompass industrial electrical systems, EV manufacturing, battery pack servicing, renewable energy installations, and laboratory prototyping of high-power automotive connectors.

350A, 690V rated for robust electric vehicle battery pack isolation. Mini manual service disconnect with HVIL safety system. IP69K and IP67 for best-in-class ingress protection. Front/rear mounting, plug-in connection for flexible installations.

Dual-channel design lowers operating temperatures, improving connector longevity. Over 50 mating cycles with reliable operation in demanding environments. Suited for automotive, renewable energy, laboratory, and industrial use.

Browse more Automotive Electrical Connectors and Amphenol Industrial products in the EV Service Disconnect category on EnvMart.
