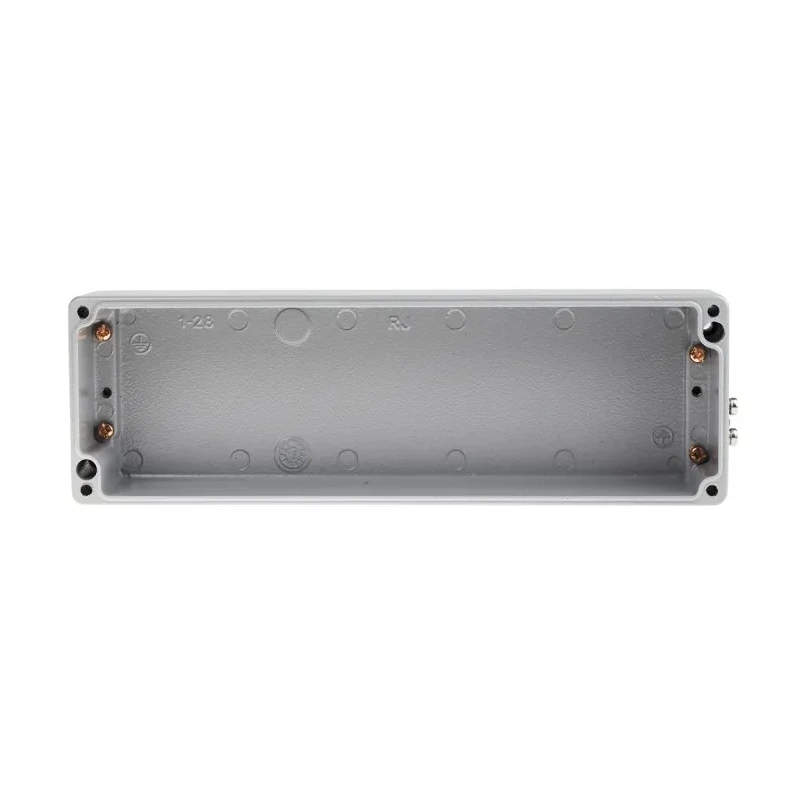

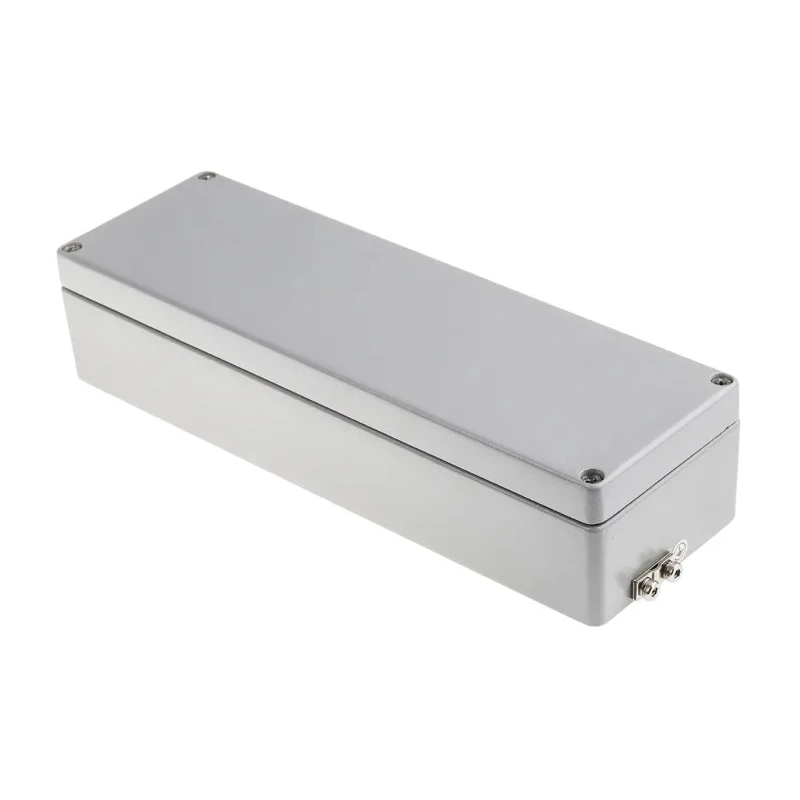

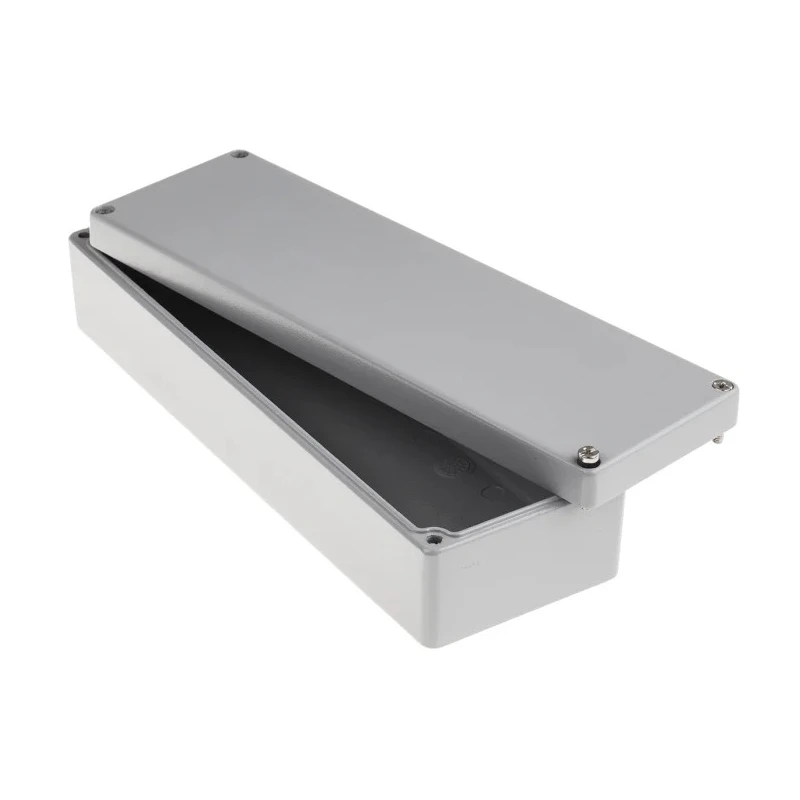

RS PRO RJ Series Aluminium Enclosure 122-8924, Grey Lid, IP66, IP67, IP68, IP65, IK09, 57mm Height, 250mm Width, 250mm Length
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | 122-8924 |
| IP Rating | IP66, IP67, IP68, IP65 |
| Service Temperature | -50°C to 135°C |
| Series | RJ |
| External Width | 250mm |
| External Height | 57mm |
| Shielding | Unshielded |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | RoHS Compliant |
| External Length | 250mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
Key Features
- Diecast aluminium body with durable grey powder coat finish.
- Rated IP66, IP67, IP68, IP65 for superior protection against dust and water.
- IK09 impact resistance for enhanced mechanical strength and safety.
- ATEX and IECEx approved for use in hazardous and explosive atmospheres.
- Suitable for process control, automation, mining, solar panels, load cells, oil meters, and high torque brakes.
- Silicon gasket for secure sealing and optimal performance in extreme temperatures.
- Stainless steel captive lid screws and internal/external earthing from 4 mm² to 120 mm².
- Service temperature range from -50°C to 135°C, RoHS compliant.
Product Description
The RS PRO RJ Series Aluminium Enclosure, model 122-8924, is a robust industrial-grade solution designed for reliable protection of electrical components. Featuring a diecast aluminium body finished in grey, this enclosure ensures durability and corrosion resistance suitable for demanding environments.
This enclosure is tested and certified with IP66, IP67, IP68, and IP65 ratings, providing an exceptional barrier against dust ingress and powerful water jets, immersion, and moisture exposure. The IK09 mechanical impact resistance further enhances its suitability for rugged applications. ATEX and IECEx approvals make it compliant for use in hazardous and explosive atmospheres, making it ideal for process control, mining, automation, locomotives, crane hoists, solar panels, load cells, oil meters, and high-torque brake systems.
Additional technical features include a silicon gasket for secure sealing, stainless steel captive lid screws, unshielded design, and internal/external earthing support from 4 mm² up to 120 mm². Its service temperature range extends from -50°C to 135°C for reliable operation in extreme conditions. The enclosure's dimensions are 57mm in height, 250mm in width, and 250mm in length, allowing space for a variety of installations or control equipment.
Compliance standards include IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, and EN60529 for protection class. It is RoHS Compliant and approved under mechanical strength standards (impact energy 7 Nm). Additional certifications: cULus, CE, GOST-R.
This enclosure is supplied with the body and cover along with four cover screws. The overall construction and standards ensure reliability in industrial, laboratory, commercial, and heavy-duty outdoor applications, particularly where hazardous conditions are anticipated.
Diecast aluminium construction with grey powder coated finish, designed for demanding industrial environments. Multiple IP ratings (IP66/IP67/IP68/IP65) and IK09 mechanical impact resistance for extreme protection. ATEX and IECEx certified for hazardous environments and explosive atmospheres.
Wide service temperature; silicon gasket and captive lid screws for secure closure and sealing. Internal/external earthing provisions to accommodate diverse installation requirements. Ideal for automation, mining, process control, solar panels, load cells, oil meters, and more.
Browse more RS PRO enclosures and protection solutions in the General Purpose Enclosures category at EnvMart.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has external dimensions of 250mm in width, 250mm in length, and 57mm in height.
The service temperature range for this enclosure is from -50°C to 135°C, allowing it to operate in extreme conditions.
It is rated IP66, IP67, IP68, and IP65, providing excellent protection against dust and water ingress.
This enclosure has an IK09 rating, indicating its resistance to mechanical impact.
The enclosure is made of diecast aluminium with a durable grey powder coat finish.
Yes, it is ATEX and IECEx approved for use in hazardous and explosive atmospheres.
It features a silicon gasket for secure sealing and optimal performance in extreme temperatures.
It supports internal and external earthing from 4 mm² to 120 mm², accommodating diverse installation requirements.
It complies with RoHS standards and is certified under IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, and EN60529.
It is suitable for process control, automation, mining, solar panels, load cells, oil meters, and high torque brakes.
The enclosure comes with stainless steel captive lid screws for secure closure.
This model is designed as unshielded, which is suitable for various applications.
