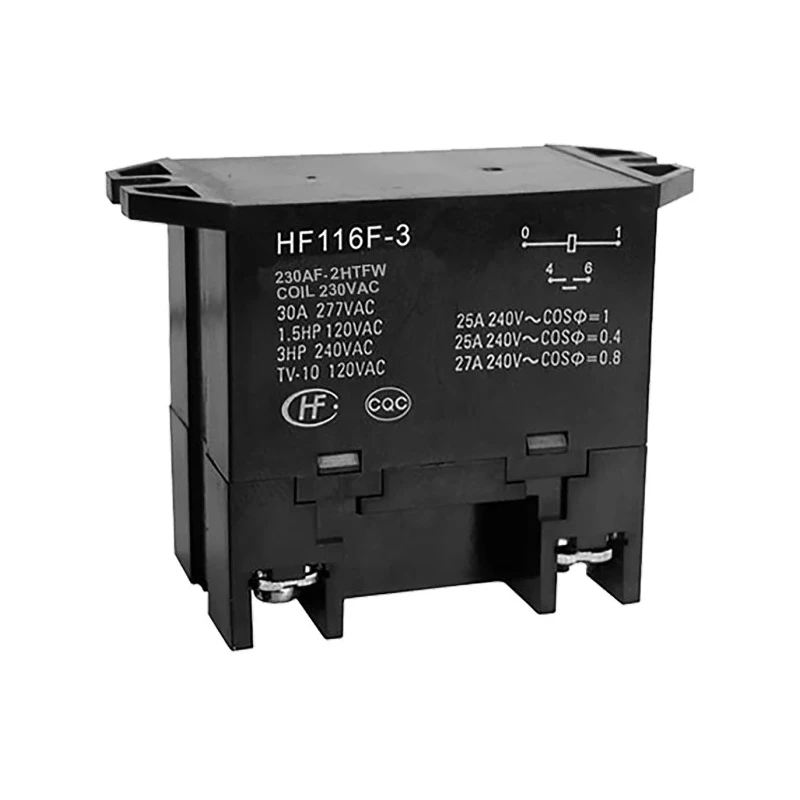

Hongfa Europe GMBH Flange Power Relay 230V AC Coil, 25A Switching Current, DPST, Screw Terminal, HF116F-3/230AF-2HTFW
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 51mm |
| Length | 68mm |
| Model | HF116F-3/230AF-2HTFW |
| Width | 32.9mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF116F-3 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Dielectric strength | 4 kV |
| Minimum Operating Temperature | -55°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, CQC |
| Coil Resistance | 20.8kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 277V ac |
| Coil Power | 2.7W |
| Contact Gap | 3 mm |
Key Features
- Flange mount power relay suitable for high-power switching applications.
- 230V AC coil voltage ensures reliable switching performance.
- DPST contact configuration enables versatile control of circuits.
- Handles up to 25A switching current for demanding loads.
- Screw terminals provide secure and easy wiring installation.
- Silver alloy contacts offer high conductivity and durability.
- Wide operating temperature range from -55°C to 70°C.
- Plastic sealed flange housing protects relay internals.
Product Description
Hongfa Europe GMBH HF116F-3/230AF-2HTFW is a flange power relay designed for efficient and reliable high-current switching in industrial electrical systems. With a 230V AC coil voltage and a DPST contact configuration, this relay is engineered to handle demanding loads up to 25A.
The relay's screw terminal interface allows for secure, easy installation, making it an excellent choice for maintenance and new builds alike. The use of silver alloy contact material delivers strong conductivity and wear resistance, helping to ensure long-term durability in commercial and facility power control applications.
The HF116F-3/230AF-2HTFW features a compact and robust plastic sealed flange mount housing, contributing to environmental protection for its internal components. It is capable of operating in extreme temperature conditions from -55°C up to 70°C, lending versatility for various HVAC, automation, or manufacturing environments.
Additional technical features include a coil resistance of 20.8 kΩ, switching power up to 6.9 kVA, dielectric strength rated at 4kV, and a 3 mm contact gap for secure switching isolation. The relay supports screw terminals and is approved to cULus and CQC safety standards, confirming its suitability for industrial and laboratory installations.
Typical use cases for this relay include switching electric motors, lighting circuits, heating elements, and circuit automation controls in industrial, commercial, HVAC, manufacturing, and laboratory settings.
Hongfa Europe GMBH is recognized for quality and reliability in relay technology, and this model continues that tradition. This product is readily suited for inclusion in power distribution panels and signal conditioning cabinets, and its compliance credentials ensure engineering confidence.
Browse more industrial-grade Power Relays from Hongfa Europe GMBH and related categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay can handle a maximum switching current of 25A, making it suitable for demanding loads.
This model operates with a coil voltage of 230V AC, ensuring reliable switching performance.
It features a DPST (Double Pole Single Throw) contact configuration, allowing for versatile control of circuits.
The dimensions of the relay are 68mm in length, 32.9mm in width, and 51mm in height.
The dielectric strength is rated at 4 kV, providing secure switching isolation.
It operates within a temperature range from -55°C to 70°C, making it suitable for various environments.
This relay is equipped with screw terminals, allowing for secure and easy wiring installation.
The contacts are made from silver alloy, which offers high conductivity and durability.
It is approved to cULus and CQC safety standards, confirming its suitability for industrial and laboratory installations.
The coil resistance is 20.8 kΩ, which is essential for its operation.
This relay is typically used for switching electric motors, lighting circuits, heating elements, and circuit automation controls in various settings.
The contact gap is 3 mm, which helps to ensure secure switching isolation.
