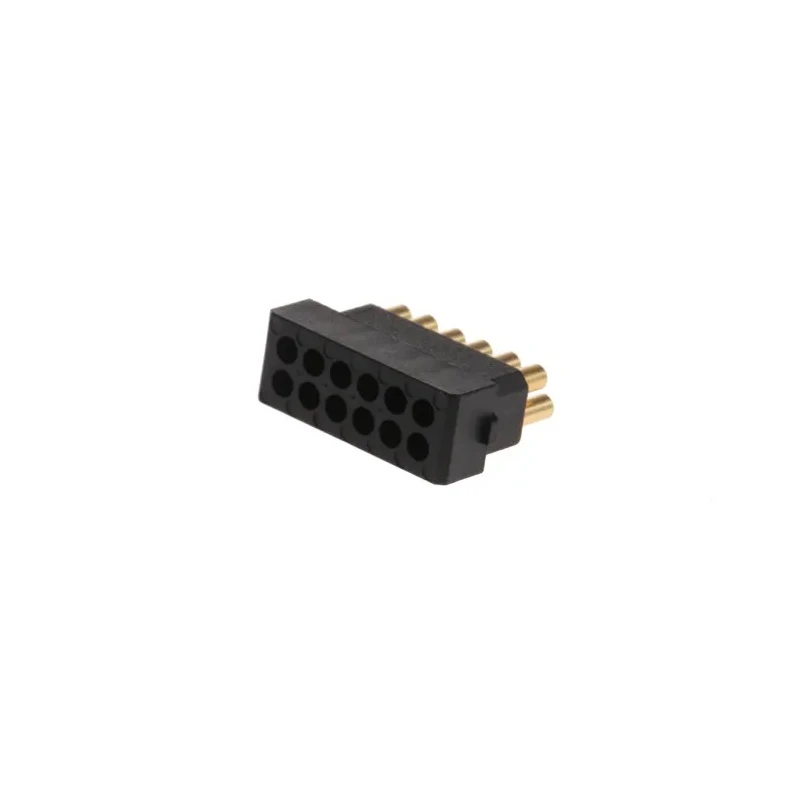

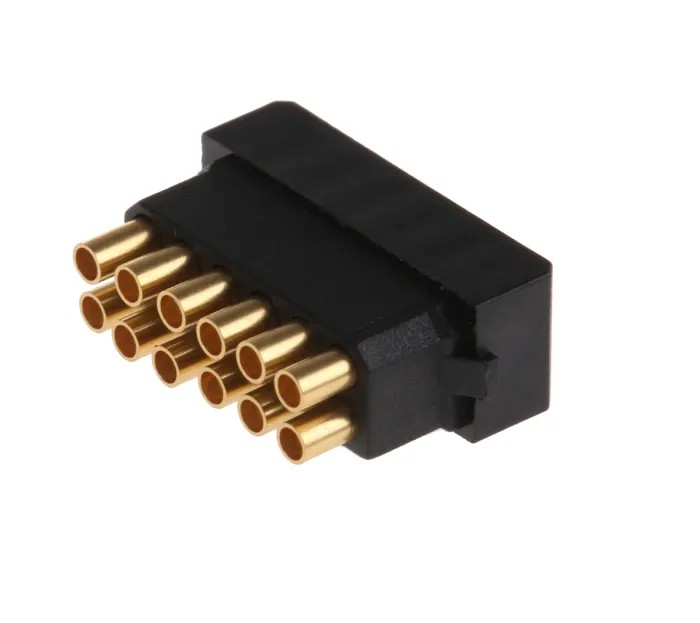

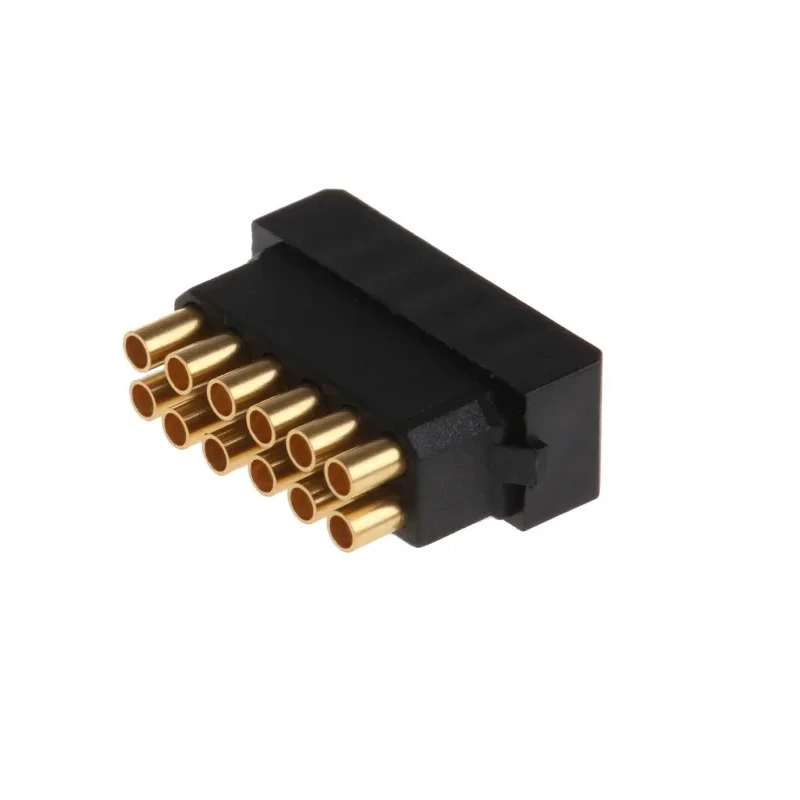

Harwin Datamate PCB Connector Kit 12-way DIL Female Shell, Crimps M80-8881205
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Model | M80-8881205 |
| Series | Datamate |
| Kit Type | Connector Kit |
| Kit Contents | 12 way DIL Female Shell, Crimps |
Key Features
- Kit includes a 12-way DIL female shell and loose crimp contacts for versatile connection needs.
- 2mm pitch Datamate series designed for military, aerospace, and industrial use.
- High reliability beryllium copper crimp contacts with four-finger design for durability in harsh environments.
- Polarised mouldings ensure proper mating and prevent misalignment during installation.
- Suitable for applications requiring resistance to vibration, shock, and frequent mating cycles.
- Fully shrouded housing protects contacts, supporting safe and reliable connections.
- Compatible with COTS programs and industry standard equivalents for broad utility.
- Complies with BS9525-F0033/MIL C 55302/CECC 75101-008 standards for quality assurance.
Product Description
The Harwin M80-8881205 Datamate PCB Connector Kit is a robust solution for demanding electronic applications requiring high reliability and durability. This connector kit features a 12-way DIL female shell paired with loose crimp contacts, suitable for rear insertion and offering flexibility during assembly.
Designed as part of the Datamate series, it maintains a compact 2mm pitch, enabling use in environments where space and performance are critical. Harwin’s Datamate connectors are internationally recognised and widely implemented in military, aerospace, industrial, and COTS (Commercial-Off-The-Shelf) programs.
The crimp contacts are made from beryllium copper and utilise a four-finger design, providing exceptional conductivity and resilience under extreme temperature, vibration, and shock conditions. The connector housing is fully shrouded, offering contact protection and incorporating polarisation features to ensure correct alignment throughout mating operations.
Polarised mouldings bolster reliability, preventing mis-mating and ensuring secure connection integrity even during repeated connection cycles. The kit is engineered to withstand high loads, frequent mating cycles, and harsh environmental challenges, making it ideal for applications such as industrial automation, robotics, data communication, medical devices, aeronautics, and oil & gas equipment.
The L-Tek Datamate connectors are available with or without latches, which increases installation versatility. This connector kit is compatible with industry equivalents and adheres to standards BS9525-F0033, MIL C 55302, and CECC 75101-008, underlining its suitability for mission-critical projects. Typical wire size support is between 24 to 28 AWG for relevant Datamate part numbers, ensuring adaptability for a range of cable types.
Harwin Datamate products are chosen for their high reliability connector system, featuring shrouded housings and industry-proven performance, enabling safe, repeatable connections in environments subject to vibration, shock, acceleration, or exposure to challenging operational conditions.
At EnvMart, you can explore the extensive range of Harwin Datamate connector kits and related components under the Electronics & Electricals category. Discover precision connection solutions for industrial, laboratory, and aerospace applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The kit includes a 12-way DIL female shell and loose crimp contacts, allowing for versatile connection needs.
The Datamate connectors feature a compact 2mm pitch, making them suitable for environments where space is critical.
The crimp contacts are made from beryllium copper, which provides high conductivity and durability under extreme conditions.
This connector kit is ideal for applications in military, aerospace, industrial automation, robotics, data communication, medical devices, and oil & gas equipment.
Yes, the mouldings are polarised to ensure proper mating and prevent misalignment during installation.
It complies with BS9525-F0033, MIL C 55302, and CECC 75101-008 standards, ensuring quality assurance for mission-critical projects.
The typical wire size supported is between 24 to 28 AWG for relevant Datamate part numbers, providing adaptability for various cable types.
The connector housing is fully shrouded, which protects the contacts and supports safe and reliable connections.
The crimp contacts utilize a four-finger design, which enhances their durability and resilience under harsh conditions.
The Harwin Datamate PCB Connector Kit is manufactured in the United Kingdom.
The Datamate series includes connectors available with or without latches, increasing installation versatility.
These connectors are primarily used in environments subject to vibration, shock, and frequent mating cycles, making them suitable for demanding applications.
