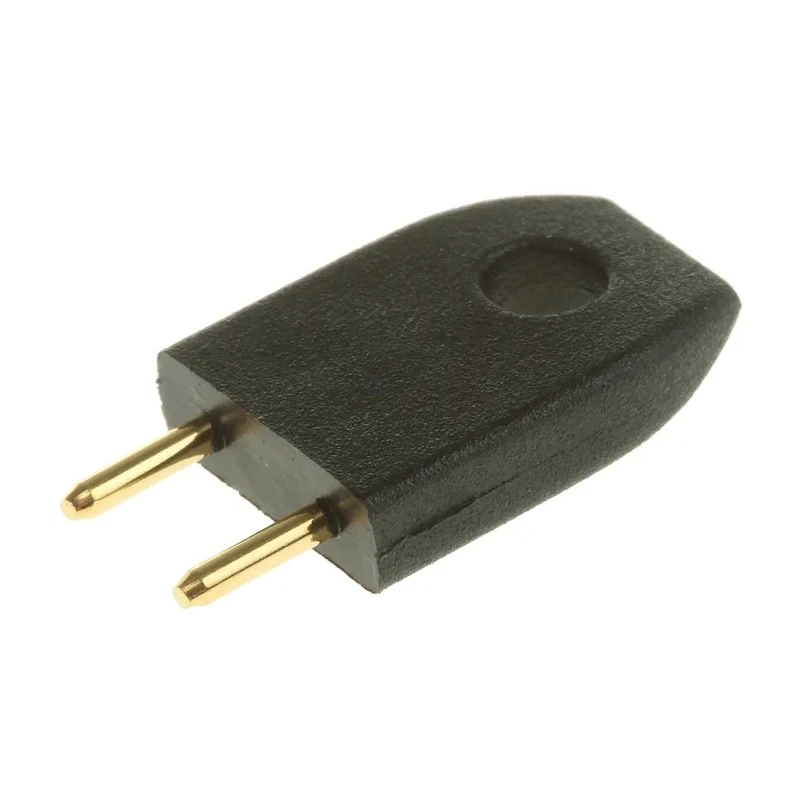

Harwin D3086-98 Shorting Link Straight Male Black Closed Top, 2 Way, 1 Row, 5.08 mm Pitch, 10A, Polybutylene Terephthalate
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Black |
| Orientation | Straight |
| Current | 10A |
| Length | 9.5mm |
| Model | D3086-98 |
| Depth | 3.2mm |
| Width | 12.7mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
| HARWIN Shorting Link Male Straight Red Closed Top 2 Way 1 Row 5.08mm PitchBrand | HARWIN |
Key Features
- Closed top shorting link plug for reliable PCB interconnection.
- Designed with 2 contacts in a single row for efficient circuit bridging.
- Features 5.08 mm pitch, suitable for standard PCB layouts.
- Male connector orientation, black color coded, straight configuration.
- Gold plated brass contacts ensure enhanced conductivity and corrosion resistance.
- Polybutylene Terephthalate (PBT) housing provides strength and thermal stability.
- Rated at 10A for high current capacity in electronic applications.
- Meets industrial programming and hardware bridging requirements.
Product Description
The Harwin D3086-98 Shorting Link is a straight male connector, engineered for secure and optimal performance in PCB assemblies. With a closed top design and black color-coded housing, this shorting link facilitates reliable circuit bridging within electronic hardware.
It comprises 2 contacts arranged in a single row, offering easy integration into standard PCB sockets. The 5.08 mm pitch aligns with industry PCB spacing requirements, ensuring compatibility and flexibility in hardware programming applications. The gold plated brass contacts deliver superior electrical conductivity, minimize resistance, and provide corrosion protection for long-term use.

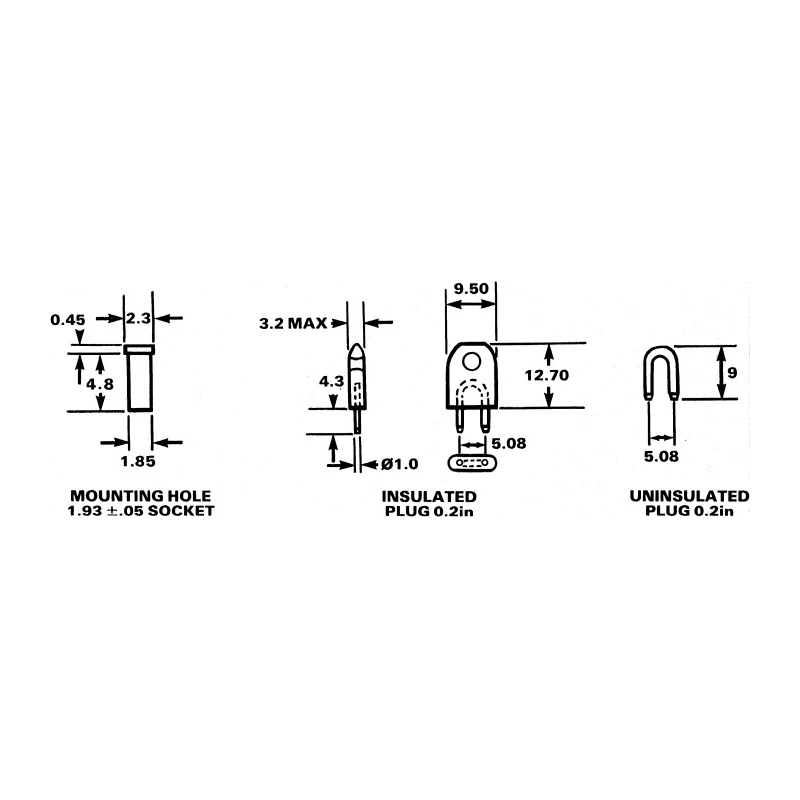

The housing is made of high quality Polybutylene Terephthalate (PBT), rated UL94V-0 for flame resistance and durability. Its straight, male orientation simplifies insertion into PCB sockets or connectors, while the compact size - length 9.5 mm, depth 3.2 mm, width 12.7 mm - enables space-saving installation within densely populated circuit boards.
Rated for 10A current, the D3086-98 is suitable for hardware programming, signal routing, and temporary or permanent circuit linking in industrial, instrumentation, automation, and commercial applications. The insulated version is not designed for direct soldering; it is intended for use with PCB sockets where frequent bridging or programming is needed.
Applications include industrial PCB programming, hardware development, electronics manufacturing, laboratory circuit prototyping, and commercial device assembly. Closed top design for enhanced safety and connection integrity.
Brass contacts with gold plating for long-lasting electrical performance. PBT housing ensures resistance to mechanical and thermal stresses. Ideal for industrial, laboratory, and commercial PCB programming use cases. Length 9.5 mm, depth 3.2 mm, width 12.7 mm for flexible layout.
Discover more in the PCB Connectors & Wire Housings category at EnvMart, and explore the full Harwin lineup for advanced PCB interconnection solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Harwin D3086-98 shorting link features a pitch of 5.08 mm, which aligns with standard PCB layouts for compatibility.
This model is rated for a maximum current of 10A, making it suitable for high current applications in electronic circuits.
The housing of this shorting link is made from Polybutylene Terephthalate (PBT), while the contacts are made of brass with gold plating for enhanced conductivity.
The dimensions of this model are 9.5 mm in length, 3.2 mm in depth, and 12.7 mm in width, allowing for flexible installation in PCB assemblies.
The Harwin D3086-98 shorting link has 2 contacts arranged in a single row, facilitating efficient circuit bridging.
This model features a straight male orientation, which simplifies insertion into PCB sockets or connectors.
No, this insulated version is not designed for direct soldering; it is intended for use with PCB sockets for frequent bridging or programming.
It is suitable for applications such as industrial PCB programming, hardware development, electronics manufacturing, and laboratory circuit prototyping.
This shorting link has a closed top design, enhancing safety and connection integrity during use.
The Harwin D3086-98 shorting link is manufactured in India.
The contacts of this shorting link are gold plated, which helps improve electrical conductivity and provides corrosion resistance.
