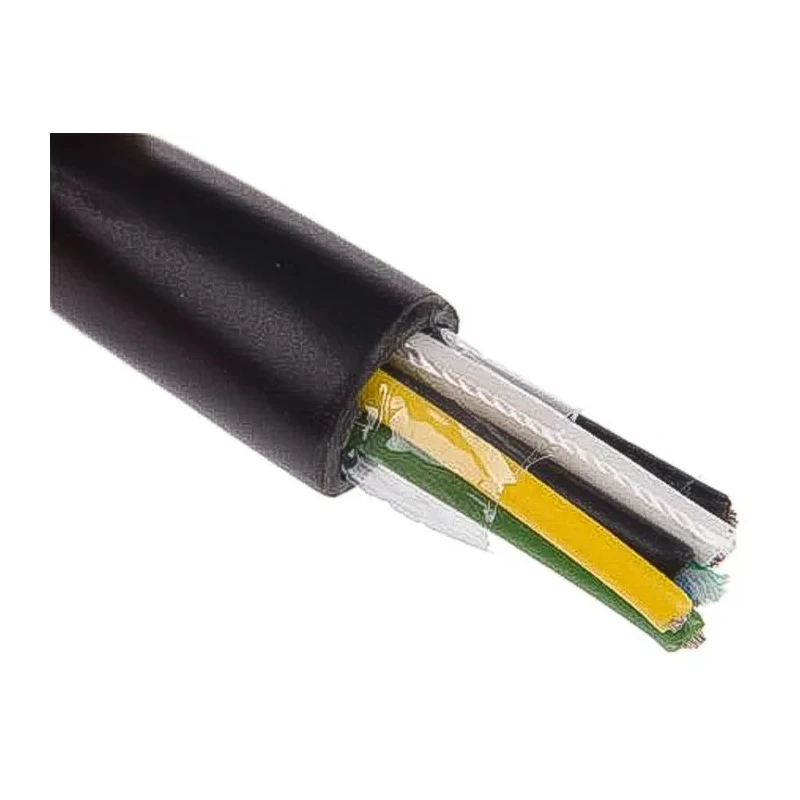

Alpha Wire XTRA-GUARD 2 Control Cable 6 Cores 0.81mm² 18 AWG Unscreened Black 30m Polyvinyl Chloride 300V 25066 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 25066 BK005 |
| Cable Length | 30m |
| Series | XTRA-GUARD 2 |
| Outside diameter | 7.8mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Number of Strands | 16 |
| Core Strands | 16 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.81mm² |
Key Features
- Provides 6 conductors of tinned copper wire for reliable electrical performance.
- Features a robust black polyvinyl chloride sheath offering chemical, oil and abrasion resistance.
- Armoured and flame retardant for increased durability and safety in demanding environments.
- Rated for 300V operation with an outside diameter of 7.8mm and up to 90°C maximum temperature.
- Unscreened design ensures flexibility and ease of installation for control systems.
- Color-coded conductors and nylon ripcord facilitate straightforward jacket stripping and wiring identification.
- Meets international standards including CSA, CE, and UL for wide industrial compliance.
Product Description
The Alpha Wire XTRA-GUARD 2 Control Cable model 25066 BK005 is engineered for dependable operation in challenging industrial settings. This armoured cable consists of six color-coded, tinned copper conductors, each with a cross-sectional area of 0.81mm² (18 AWG), providing both flexibility and robust electrical performance for control and automation systems.
The cable is constructed with a durable black polyvinyl chloride (PVC) sheath, conferring abrasion, chemical, oil, and UV resistance. The armoured configuration and flame retardant characteristics enhance its suitability for environments where mechanical abuse and safety are key considerations. An overall outside diameter of 7.8mm allows the cable to be routed easily through cableways or conduits in control panels and machinery.
This model is unscreened, contributing to greater flexibility and ease of handling during installation while supporting a variety of industrial control, instrumentation, and automation applications. Capable of withstanding operating voltages up to 300V, it features a wide temperature range from -30°C to 90°C, ensuring reliable performance in diverse electrical installations.
Additional technical features include 16 strands of 0.25mm tin copper per core, low temperature flexibility, and a convenient nylon ripcord for fast, efficient stripping. The 30 metre cable length is suitable for large installations or field repairs. Compliance with CSA, CE, and UL standards supports global deployment.
Typical industrial use cases include integration within CNC machinery, automotive plants, packaging equipment, petrochemical facilities, and geophysical instruments - wherever rugged multi-core cables are required for control and signaling.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 90°C.
This model is rated for operation at 300V.
This control cable features six cores.
The outside diameter of this cable is 7.8mm.
The cable is constructed with tinned copper wire conductors and a black polyvinyl chloride (PVC) sheath.
This model operates within a temperature range of -30°C to 90°C.
This control cable is unscreened, which enhances its flexibility and ease of installation.
The cable meets international standards including CSA, CE, and UL.
The length of this control cable is 30 meters.
Each core of the cable consists of 16 strands of 0.25mm tinned copper.
This cable is suitable for industrial control, instrumentation, and automation applications, particularly in environments such as CNC machinery and automotive plants.
The cable features a robust PVC sheath that offers chemical, oil, and abrasion resistance, along with flame retardant properties.
