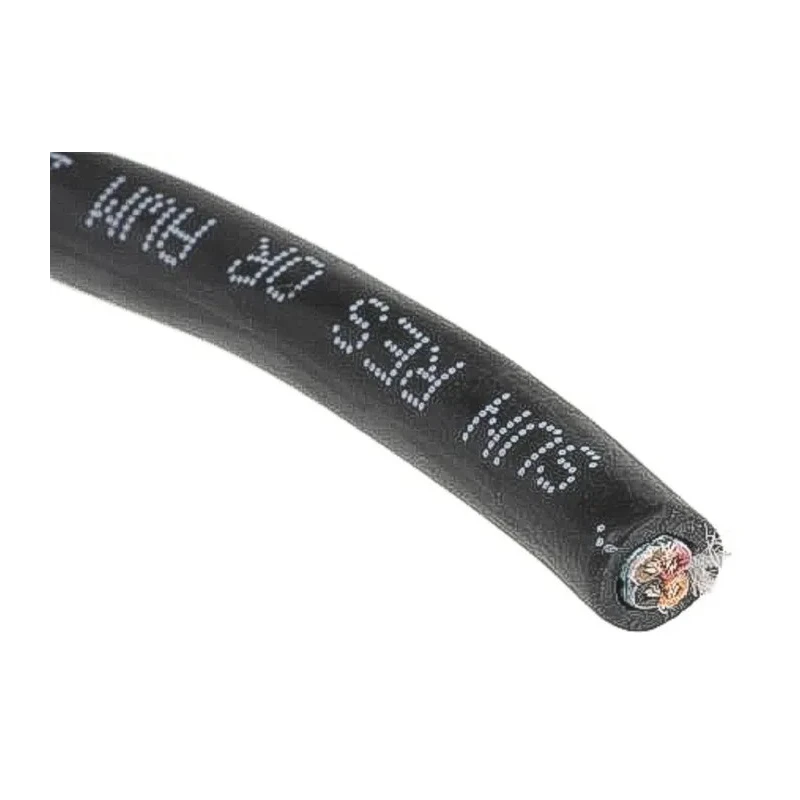

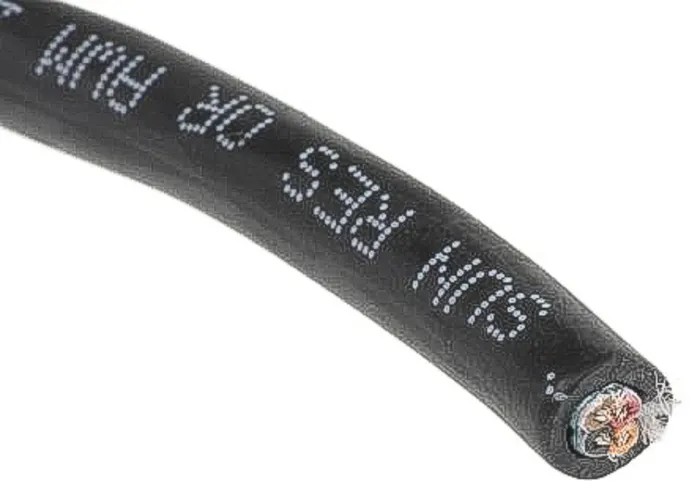

Alpha Wire XTRA-GUARD 2 Control Cable, 4 Cores, Screened, 30m, Black PVC Sheath, 300V, 22AWG, Armoured 25194 BK005

Alpha Wire’s 25194 BK005 XTRA-GUARD 2 Control Cable is a specialized screened cable designed for reliable industrial signal and automation wiring. As a 4-core solution, it features individually insulated tinned copper conductors bundled within a robust polyvinyl chloride (PVC) sheath, delivering flexibility and protection for complex electrical systems. With an operating voltage of 300V and an American Wire Gauge of 22AWG, this cable suits a broad range of control and automation equipment.

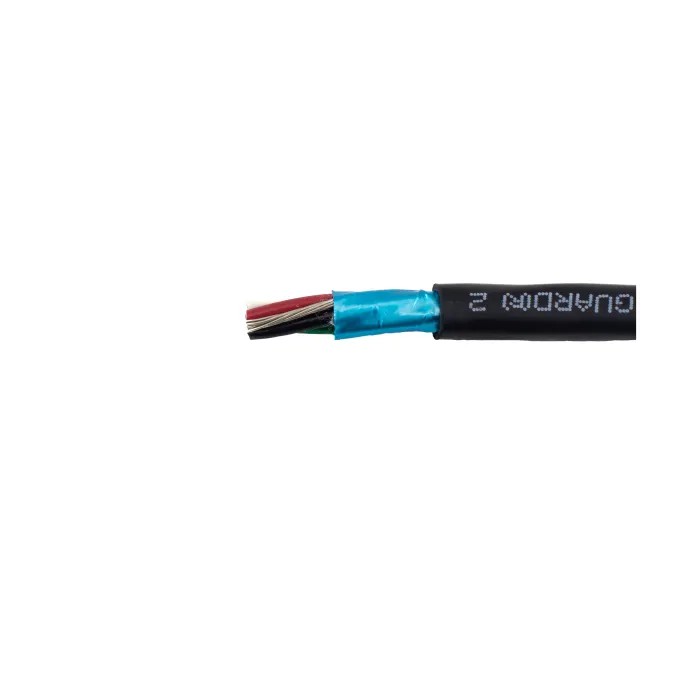

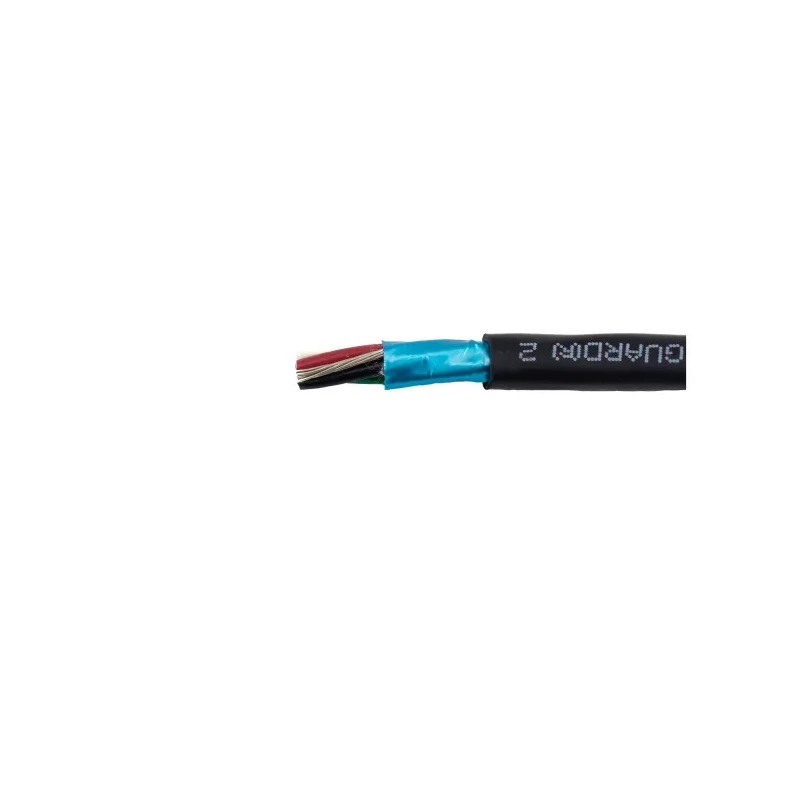

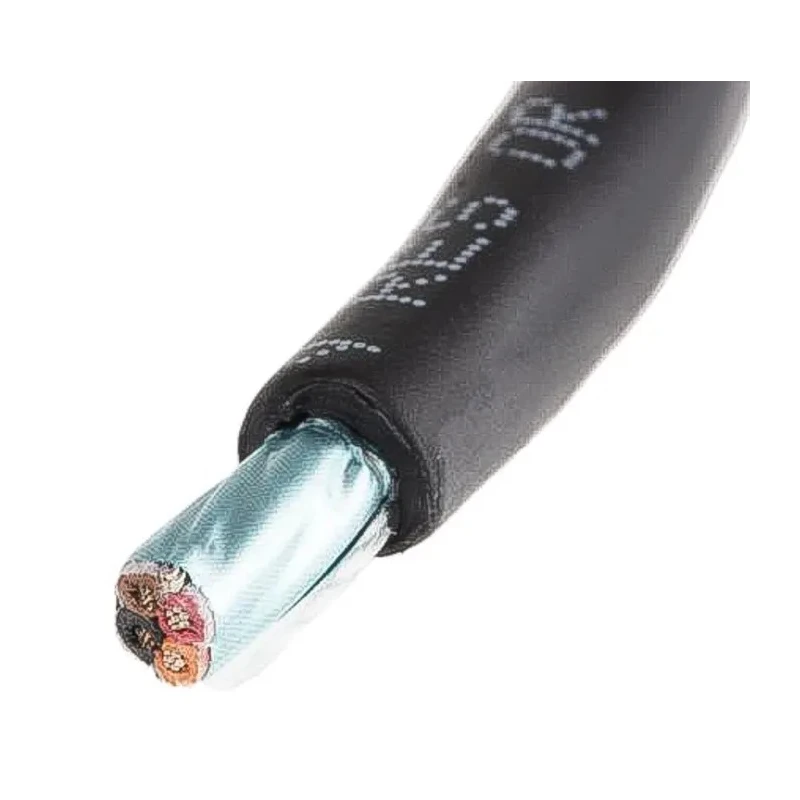

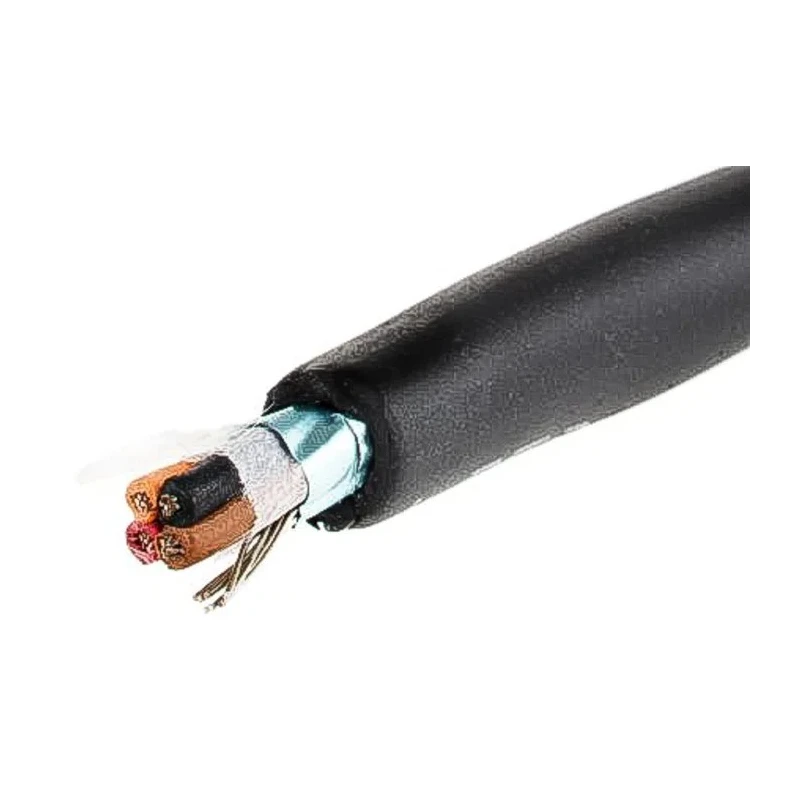

The cable employs seven-strand tin copper conductors for each core, maximizing flexibility and resilience against repeated movements. A screened aluminium/Mylar foil shield and a tinned copper drain wire protect against electromagnetic interference, ensuring stable signal transmission for critical industrial applications.

The cable is armoured, providing enhanced mechanical protection from external stress or impact, important in heavy-duty manufacturing and automation environments.

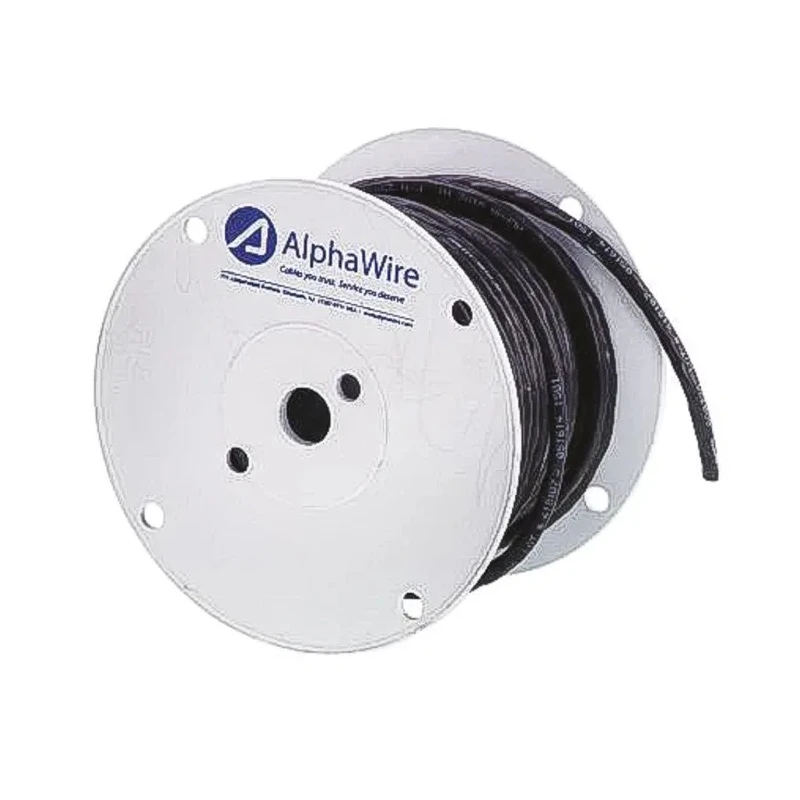

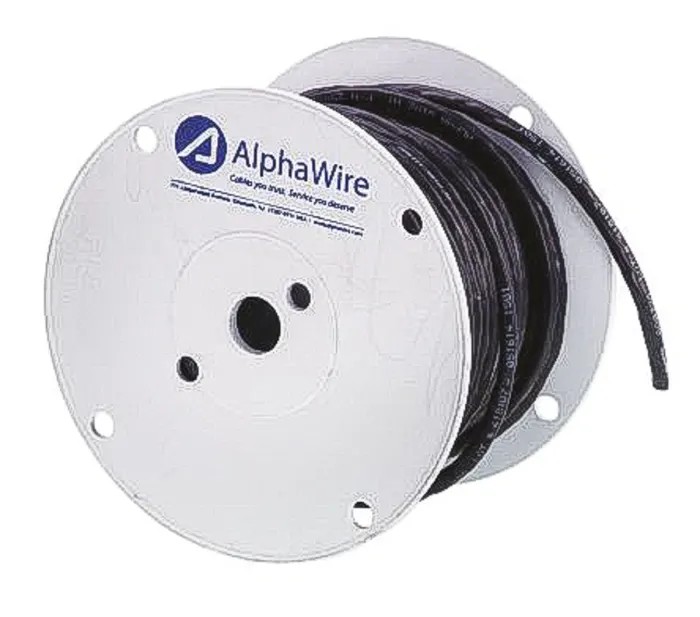

Alpha Wire 25194 BK005 delivers consistent performance across wide environmental conditions, with an operating range from -30°C to 90°C. The 30 meter reel supports long cable runs, suitable for linking sensors and actuators, wiring control panels, distribution blocks, or motor controls in factories and commercial facilities.

Applications include motor control wiring in automation systems, sensor and actuator interconnections, panel wiring, EMI-protected cable runs in machinery, and other industrial environments requiring durable, high-performance cabling. Installers should adhere to the recommended bend radius of 10x cable diameter and limit pull tension to approximately 27 lb for optimal longevity.

Four-core construction supports segmented control signals and power distribution. Screened and armoured design provides reliable EMI shielding and physical protection. PVC sheath ensures lasting abrasion resistance and installation clarity.

Flexible tinned copper conductors offer robust repeated flexing without breakage. 30 meter cable length is well-suited for machinery and factory automation cable runs. Meets strict UL, CE, CSA compliance requirements for industrial deployment.

Operating range from -30°C to 90°C enables deployment in varied environments. Armoured build secures cable integrity under physical stress. Clear marking supports easy verification and installation safety. Suitable for electrical panels, automation systems, machinery wiring, and commercial installations.
