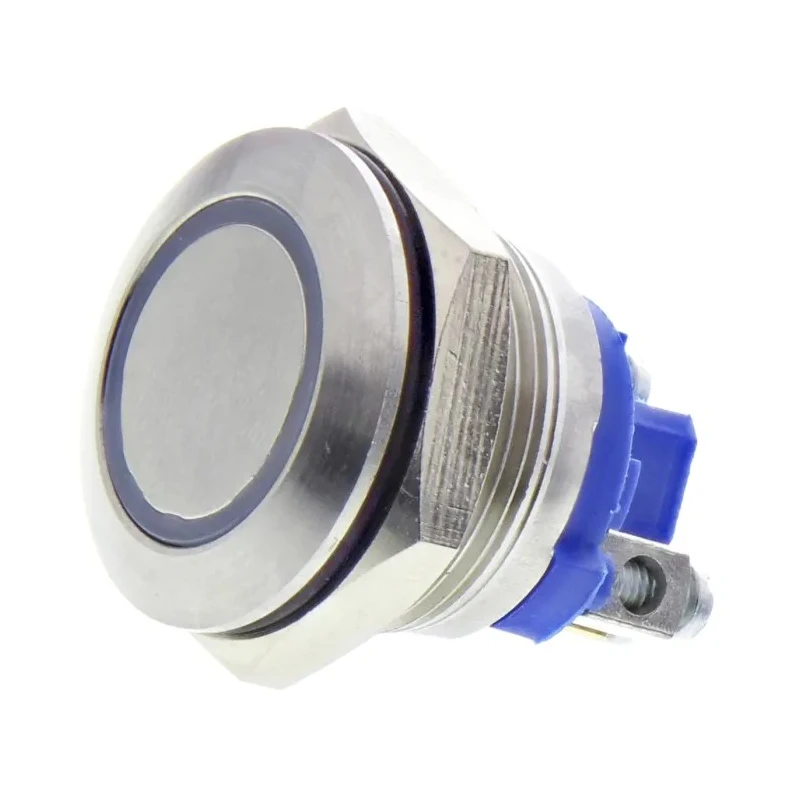

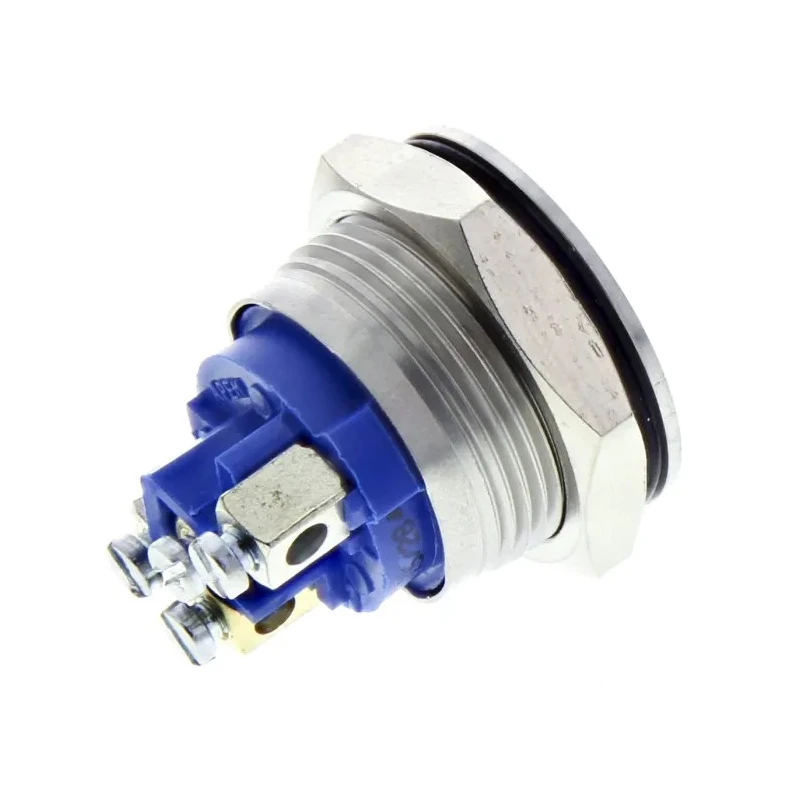

APEM AV Series Illuminated Push Button Switch, Momentary, 19.2 mm Cutout, SPST, Blue LED, IP67 AV9SLD9481002K

APEM AV9SLD9481002K is a high-performance illuminated push button switch engineered for demanding industrial and commercial applications requiring durability and reliable tactile feedback. This model is part of the APEM AV Series, recognized for its robust construction and advanced features.

The switch incorporates a momentary action mechanism, meaning the circuit is completed only while the actuator is pressed, thus providing precise control in machine interfaces, operator panels, and instrumentation. Its 19.2 mm cutout design allows easy integration into standard control panel layouts, facilitating upgrades and replacements in existing installations.

With a Single-Pole Single-Throw (SPST) contact configuration, the AV9SLD9481002K can be used for simple on/off switching applications. The blue LED ring illumination enhances operational clarity, giving status feedback or visibility in low-light industrial environments. The screw terminal type ensures stable and secure connections, minimizing downtime during maintenance.

The flat actuator style offers both modern aesthetics and ease of operation, while the anti-vandal design with sealed stainless steel or nickel-plated brass construction ensures resistance to rough handling, dust, and water. The IP67 rating confirms the switch is protected against total dust ingress and immersion in water up to 1m for 30 minutes, suitable for outdoor and harsh industrial areas.

Operational reliability is emphasized with a service life rated at 1 million cycles and support for panel thicknesses from 1 mm up to 6 mm. The switch maintains performance between temperatures of -30°C to 70°C, covering a variety of environmental conditions. The LED operates at a low voltage of 3 VDC with a 10 mA draw, contributing to energy-efficient panel solutions.

APEM AV9SLD9481002K meets RoHS compliance standards, ensuring safety and environmental stewardship. Typical application areas include control panels for factory automation, public access terminals, transportation control systems, and laboratory devices. Its rugged build and reliable performance make it ideal for installations requiring frequent operation and exposure to challenging conditions.

Explore the full range of professional-grade Push Button Switches in the Switches & Sockets category or browse other APEM AV Series models for tailored control interfaces.
