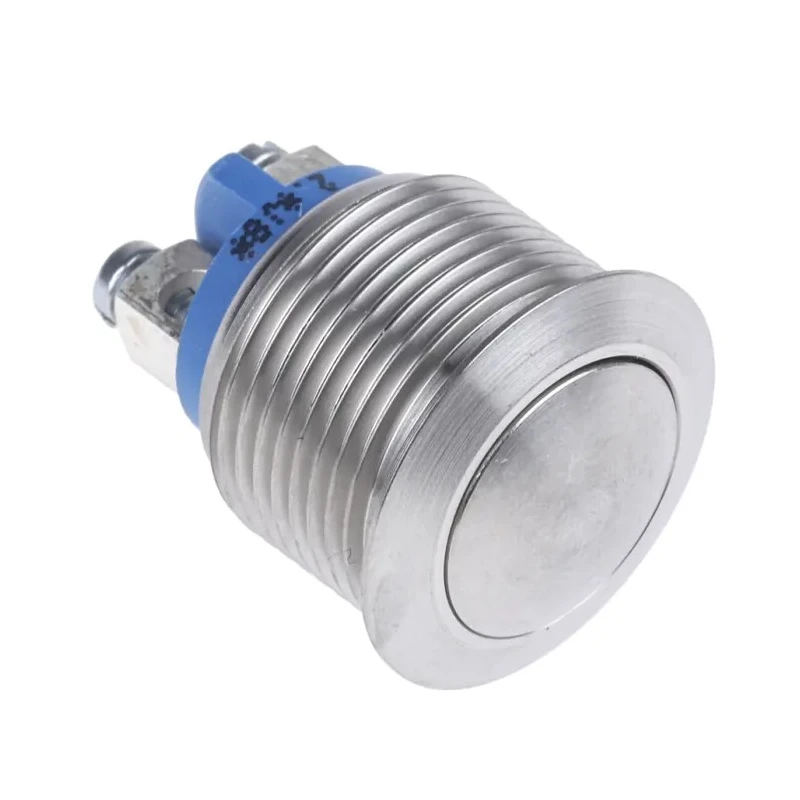

APEM AV Series Push Button Switch Momentary Panel Mount, 19.2 mm Cutout, Silver, SPST, IP65 AV1630C940K

The APEM AV1630C940K is a compact anti-vandal push button switch designed for panel mounting in a variety of industrial and commercial control applications. Its momentary operation delivers immediate switching action when pressed, ideal for secure access, machinery control, and user interfaces requiring a robust operator control.

This switch features a high-quality stainless steel bushing and actuator, offering impact resistance and anti-jamming performance. The device is sealed to IP65, providing reliable protection against dust and water ingress, making it suitable for both indoor and outdoor environments.

The silver round actuator delivers a modern aesthetic and ergonomic user experience, while maintaining a mechanical life of up to 1,000,000 operations. With a panel cutout size of 19.2 mm and screw terminals, integration into standard control panels is straightforward and ensures stable electrical connections.

The AV1630C940K operates in temperatures ranging from -30°C to 70°C, supporting installations in demanding environments including manufacturing facilities, access control systems, public terminals, and industrial machinery.

Thanks to its SPST (Single Pole Single Throw) contact arrangement, this switch is ideal for simple circuit control functions and low-power applications up to 200 mA. The device meets RoHS standards and exhibits insulation resistance of 1000 MΩ at 500 V DC, emphasizing its electrical reliability and safety compliance.

Common uses include industrial control panels, kiosks, instrumentation, elevator panels, and security systems where durable, tamper-resistant switching is essential. Its anti-vandal design ensures resistance to mechanical abuse and extends lifespan in public or high-use installations.

Compact and robust panel-mount Push Button Switch for industrial and commercial environments. Sealed IP65 for dust and water resistance in exposed locations. Stainless steel construction with chamfered actuator and contemporary silver finish.

Wide temperature operational range for reliability in varied climates. Screw terminal design simplifies installation and maintenance. Suitable for manufacturing, transportation, public terminals, building automation, and access control.

Explore more APEM push button products and compatible panel-mount switches in Electronics & Electricals categories on EnvMart. For applications requiring high reliability and anti-vandal performance, the AV Series offers an ideal solution.
