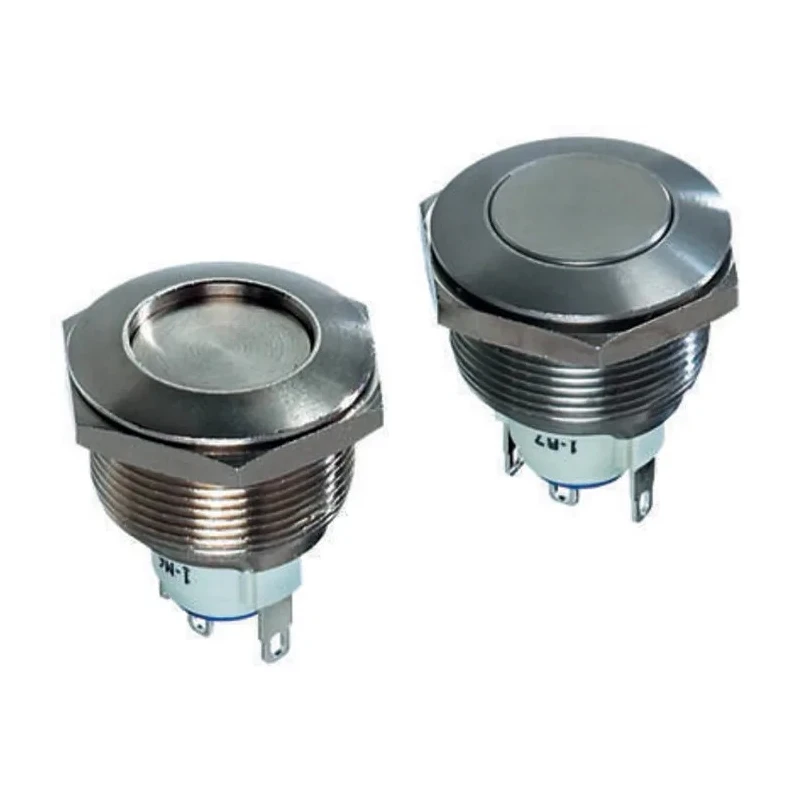

APEM AV Series Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, IP65, 48V DC 250V AC AV03100EA240K

The APEM AV03100EA240K Panel-mount Push Button Switch is engineered to provide dependable latching operation for demanding industrial and automation applications. This anti-vandal switch belongs to the AV series, renowned for robust construction and high performance in harsh environments.

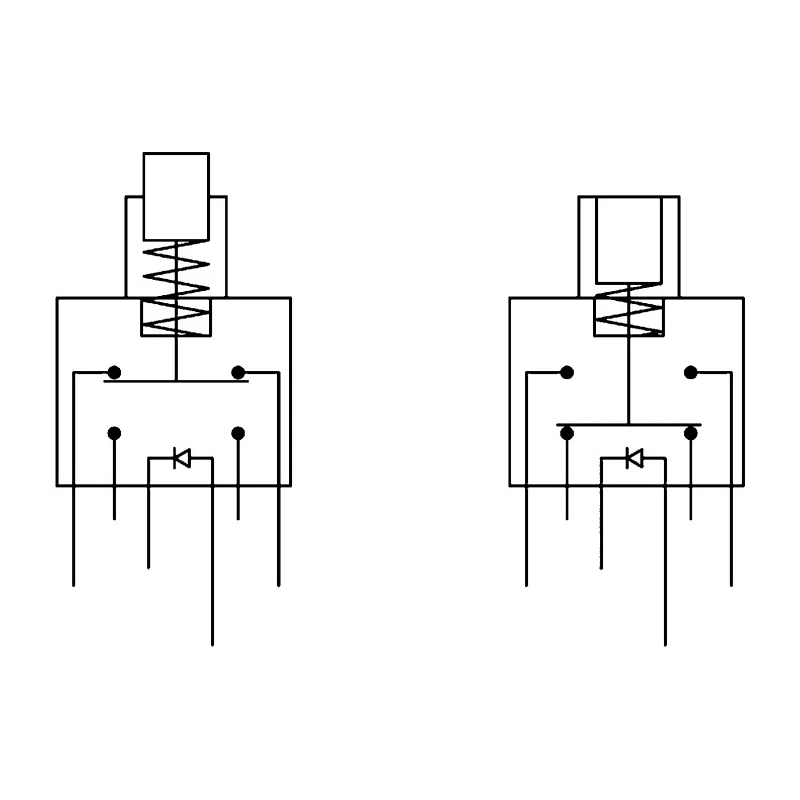

The switch is designed for latching operation, meaning a press toggles the electrical contact and maintains the state until pressed again - ideal for ON/OFF control in equipment, panels, and machinery. Its panel cutout size of 19.2 mm supports both retrofit and new installation requirements on control panels and operator interfaces.

With IP65-rated protection, the switch is capable of resisting dust and direct water jets, ensuring reliable operation in industrial, manufacturing, and commercial settings. The round actuator offers ergonomic operation, while the solder terminal type guarantees secure and permanent wiring connections.

The AV03100EA240K operates across a dual voltage regime of 48V DC and 250V AC, supporting a rated contact current of 2A. This flexibility makes it suitable for both low-voltage DC and standard AC circuits, accommodating various industrial requirements. The switch functions within a wide temperature range from -30°C to 70°C, ensuring robust performance under extreme conditions.

Constructed from durable materials such as stainless steel or nickel-plated brass, the AV Series switches are designed to prevent damage and tampering. The product complies with RoHS environmental standards and is well-suited for use in electrical control panels, automation systems, HVAC units, machinery, and equipment requiring reliable latching switches.

Latching operation suitable for ON/OFF control tasks. Panel-mount design supports ease of installation and replacement. 19.2 mm standard cutout size compatible with industry panels. Rated for 48V DC and 250V AC operation, 2A contact current.

IP65 ingress protection for challenging environments. Round actuator style for intuitive handling. Solder terminal connection for secure installation. Temperature range from -30°C to 70°C broadens application scope. RoHS compliant, supporting environmental standards.

Common industrial applications include machine control panels, process automation interfaces, HVAC controls, and commercial equipment. Browse more industrial Push Button Switches and APEM AV series solutions on EnvMart to match specific control and reliability requirements.
