APEM IP Series Momentary Push Button Switch, Panel Mount, Square Actuator, SPST, IP67, 24V DC, Yellow, 13.6 mm IPC3FAD5
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPC3FAD5 |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On, NO, NC |
| Minimum Operating Temperature | -40°C |

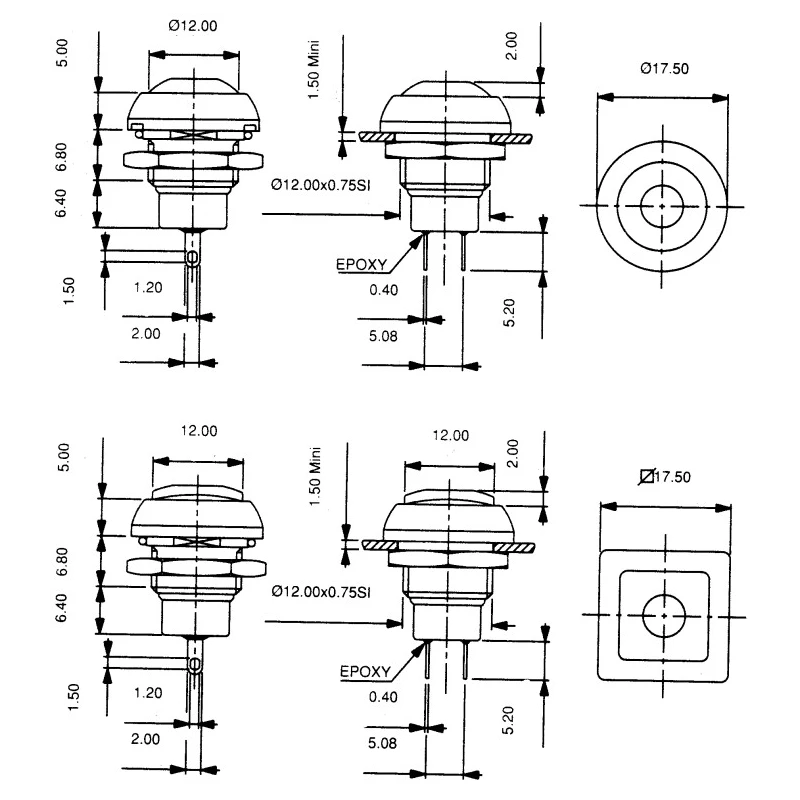

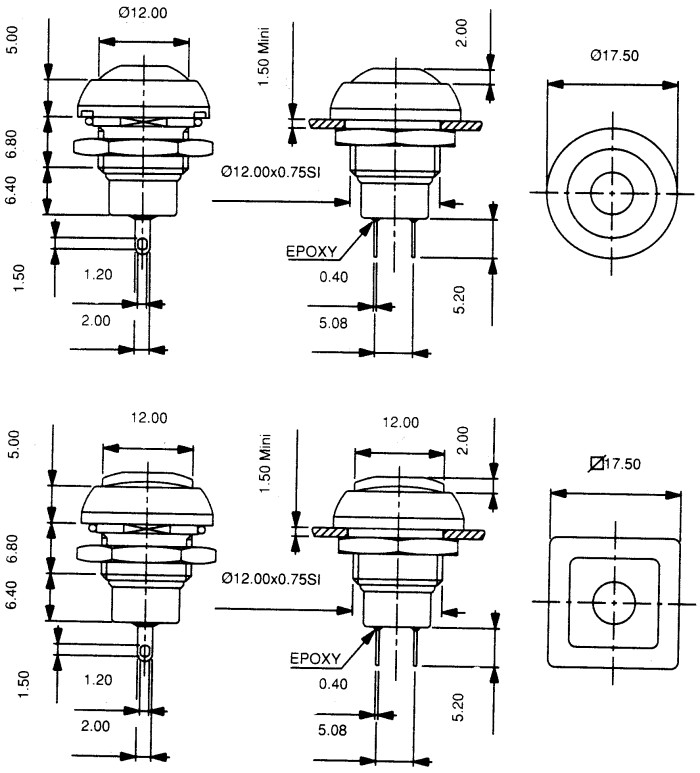

| Panel Cutout Size | 13.6 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 24V dc |
| Actuator Style | Square |
| Switch Contact Current | 5A |
| Very robust | IK06 |
Key Features
- Momentary push button switch designed for panel mounting applications.
- Features a square actuator in yellow for high visibility and easy operation.
- Offers IP67 protection, suitable for harsh and demanding environments.
- SPST contact configuration for simple on/off control circuits.
- Operates at 24V DC with a maximum contact current of 5A.
- Robust IK06 mechanical rating for impact resistance.
- Panel cutout size is 13.6 mm, ideal for standard installations.
- Through-hole terminals with 500 mm wire lead for flexible integration.
Product Description
The APEM IPC3FAD5 is a high-quality momentary Push Button Switch built for panel mounting in industrial and commercial applications. It is part of the IP Series, engineered for durability and reliability with an IP67 ingress protection rating, making it highly resistant to dust and water.
This switch features a vibrant yellow square actuator that provides clear indication and tactile feedback. The momentary operation ensures the switch returns to its original position after actuation, suitable for control panels, machinery starts, or signal triggering in automation systems.
Its robust SPST contact configuration allows straightforward on/off functionality, while the 24V DC operating voltage and 5A contact current rating ensure compatibility with a wide range of circuits. The configuration is complemented by through-hole terminals and 500 mm wire leads, simplifying panel integration and facilitating secure mechanical connections.
The switch's panel cutout size of 13.6 mm and compact dimensions (height 16 mm, width 12 mm) make it suitable for modern equipment layouts. The IK06 mechanical robustness means it can withstand impacts and vibrations, and the device is resistant to salt spray, ideal for harsh environments.

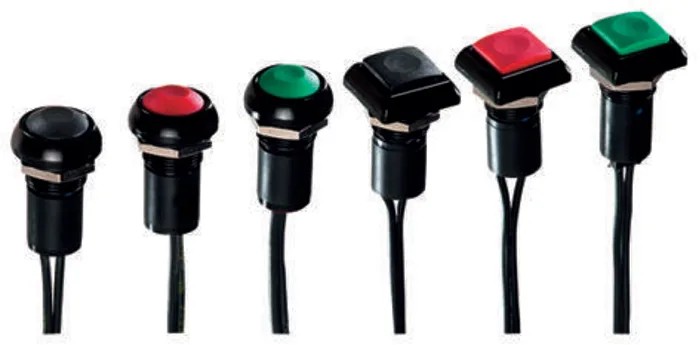

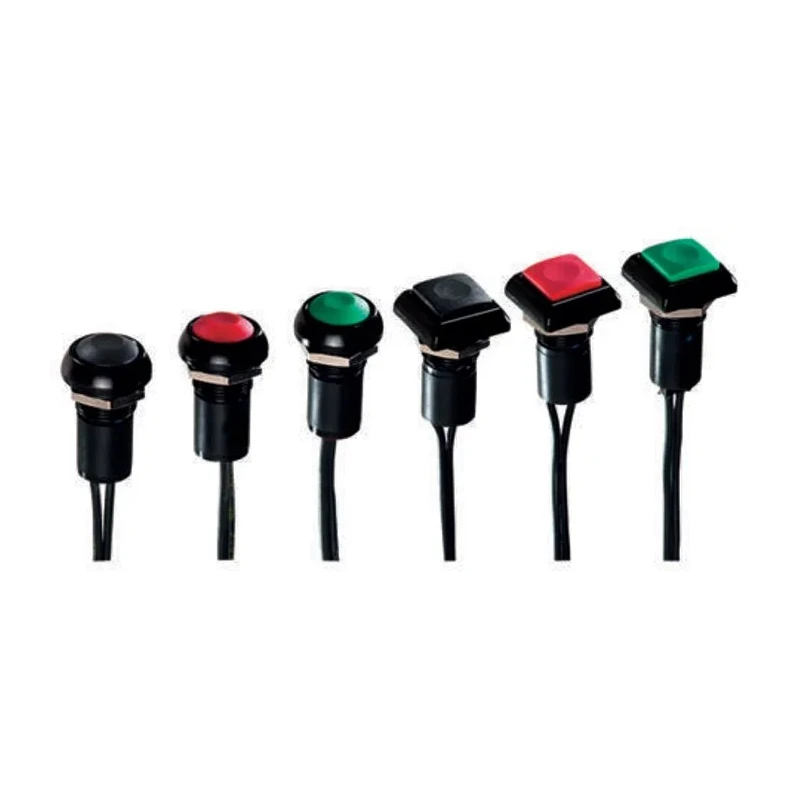

Additional features include excellent tactile feedback and RoHS compliance, ensuring safety and environmental standards are met. The product is available in round or square actuator versions and is certified under EN 50102, IEC 512-4, and IEC 512-6 standards.
Typical use cases are industrial control panels, laboratory automation, test benches, commercial machinery interfaces, and equipment in manufacturing, water treatment, and HVAC sectors where momentary triggering and visual identification are needed.
Explore more APEM switch solutions and related categories for reliable, high-performance components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM IPC3FAD5 has an IP67 rating, making it highly resistant to dust and water, suitable for harsh environments.
This model can handle a maximum contact current of 5A.
It operates at a contact DC voltage of 24V.
The required panel cutout size for this switch is 13.6 mm.
The switch has a height of 16 mm and a width of 12 mm.
It features through-hole terminals for flexible integration.
The switch operates within a temperature range of -40°C to 85°C.
The contact configuration is SPST, allowing for simple on/off control circuits.
This model features a square actuator in yellow for high visibility.
It is RoHS compliant and certified under EN 50102, IEC 512-4, and IEC 512-6 standards.
The switch has an IK06 mechanical rating, indicating good impact resistance.
Typical applications include industrial control panels, laboratory automation, and commercial machinery interfaces.
