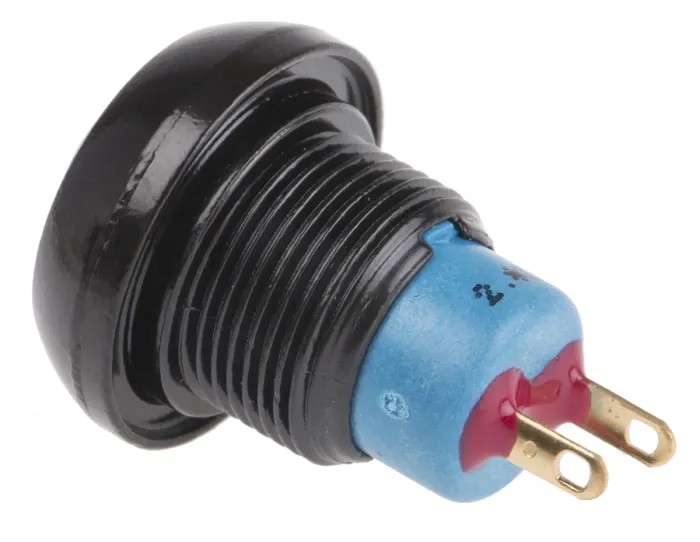

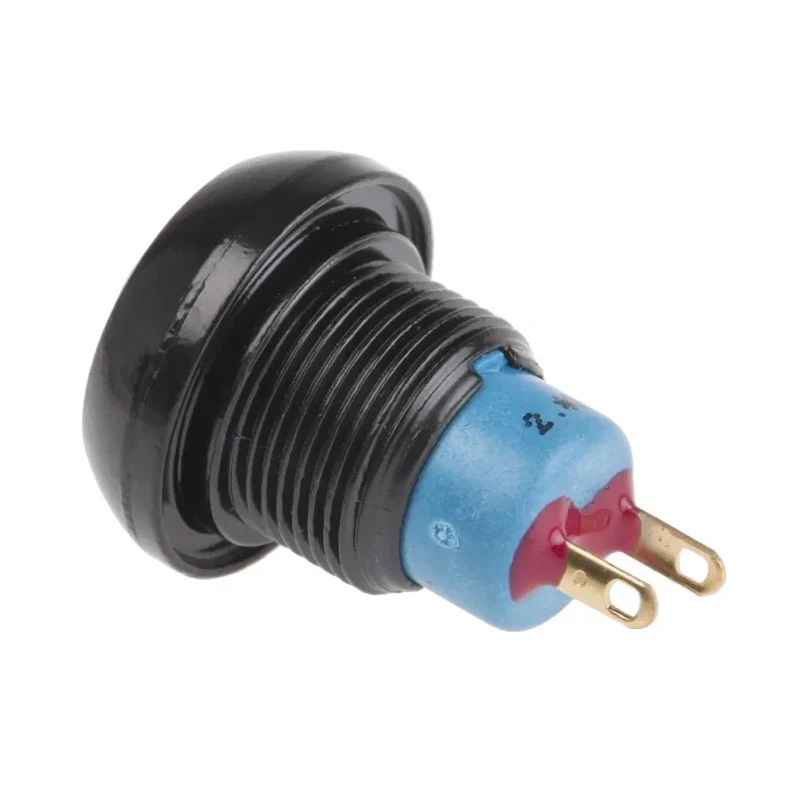

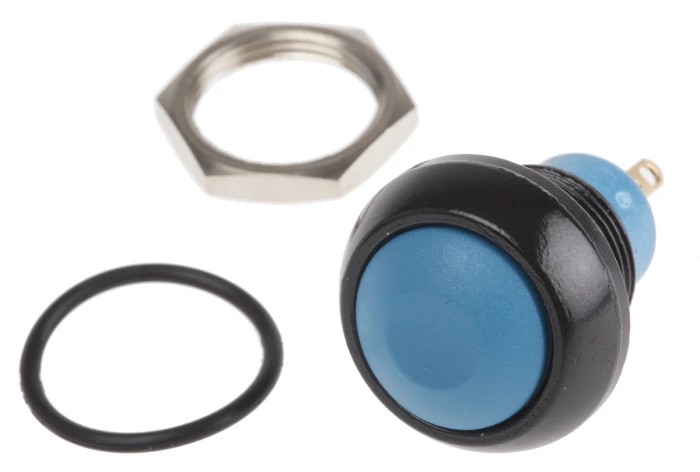

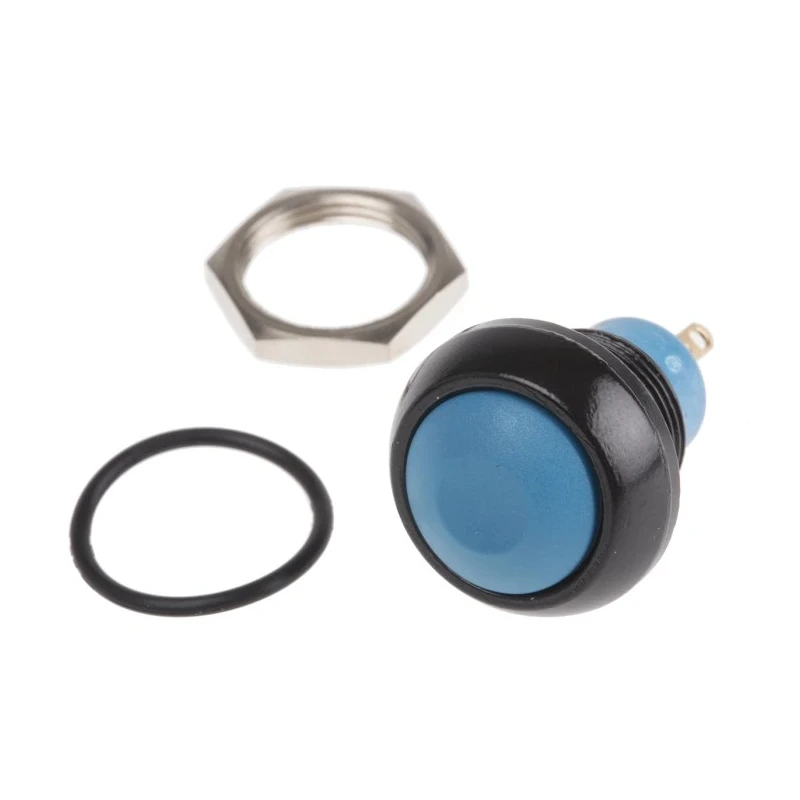

APEM IP Series Push Button Switch, Momentary, Panel Mount, SPST, Blue, 13.6 mm Cutout, IP67, 28 V DC 250 V AC IPR3SAD1
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IPR3SAD1 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SP (NO) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 28V dc |
| Actuator Style | Dome |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Very robust | IK06 |
Key Features
- Designed for reliable panel mounting with SPST contact configuration.
- Features momentary operation and excellent tactile feedback.
- Rugged IP67 protection for harsh environments.
- Blue dome actuator for easy visual identification.
- Suitable for 13.6 mm panel cut-outs with solder terminal connections.
- Handles up to 250 V AC or 28 V DC and 5A switching current.
- Operating temperature from -40°C to 85°C suitable for industrial applications.
- No illumination ensures high longevity and simple integration.
Product Description
APEM IPR3SAD1 is a robust momentary push button switch engineered for demanding industrial and automation applications. This panel-mount switch features a SPST contact configuration, ensuring straightforward on-off switching where only a single operation is required. The blue dome actuator offers clear and quick distinction in control panels, while the tactile touch feedback guarantees reliable actuation.
With a cutout size of 13.6 mm, this switch is ideal for standard panel installations, and the solder terminal type provides easy and secure connectivity during setup. The device is capable of handling both AC and DC voltages up to 250 V AC and 28 V DC, making it versatile for a wide range of electrical systems. Its switching capability supports a maximum current of 5A, ensuring compatibility with typical control circuits.
Constructed to withstand harsh environmental conditions, the switch offers IP67 sealing against dust and moisture, making it suitable for outdoor or wet-area installations. It is resistant to salt spray and provides enhanced mechanical robustness, rated at IK06 for impact durability.
Operating temperatures span from -40°C up to 85°C, ensuring stable performance in extreme climates and in industrial settings. The actuator is not illuminated, which simplifies maintenance and increases reliability in high-duty-cycle installations.
Applications include industrial automation panels, HVAC control, machinery, construction vehicles, marine controls, and environments where reliable operator interface devices are required. With EN 50102, IEC 512-4, and IEC 512-6 standards compliance, this switch is suitable for safety-critical or quality-sensitive installations.
Browse more momentary panel-mounted Push Button Switches from APEM and similar categories at EnvMart for advanced, reliable interface solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP67 rating, providing protection against dust and moisture, making it suitable for harsh environments.
It can handle a maximum switching current of 5A, ensuring compatibility with typical control circuits.
This switch is rated for 250V AC and 28V DC, making it versatile for various electrical systems.
The required panel cutout size for installation is 13.6 mm.
It uses solder terminal connections, which provide secure connectivity during setup.
The operating temperature range is from -40°C to 85°C, suitable for extreme climates and industrial settings.
This model features a SPST (Single Pole Single Throw) contact configuration for straightforward on-off switching.
The actuator style is dome, and it is colored blue for easy visual identification.
It complies with RoHS standards, ensuring it meets environmental and safety regulations.
The switch has an IK06 rating for impact durability, indicating its robustness against mechanical impacts.
It is suitable for applications in industrial automation panels, HVAC control, machinery, construction vehicles, and marine controls.
This model features momentary operation, which means it only remains active while being pressed.
