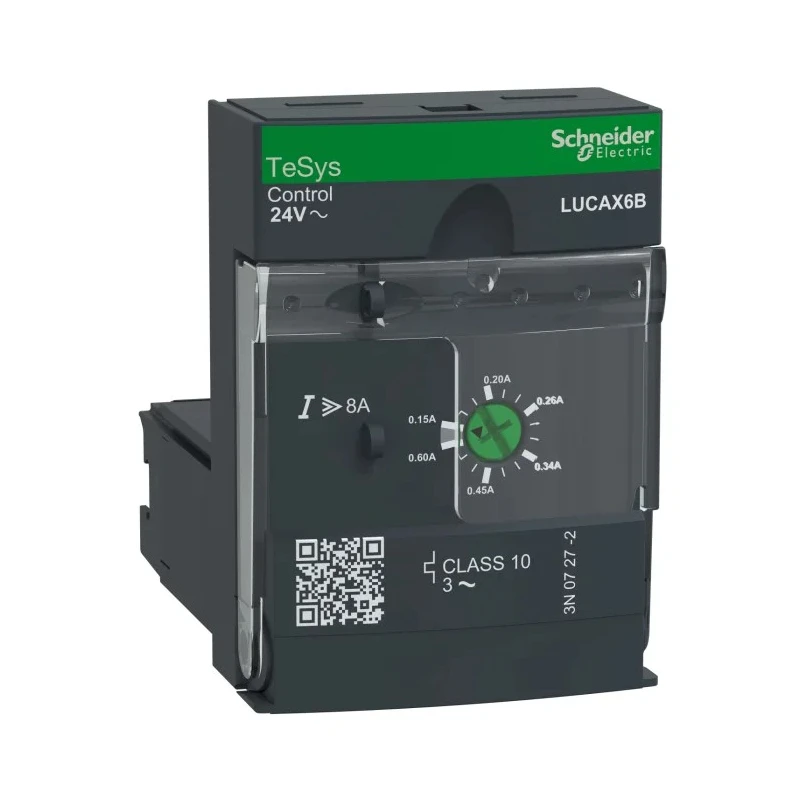

Schneider Electric DOL Motor Starter, 440V AC, 90W, 3 Phase, IP40, Class 10, Compact LUCAX6B

The Schneider Electric LUCAX6B is a direct-on-line (DOL) motor starter engineered for the dependable starting and protection of three-phase electric motors in industrial, manufacturing, and automation applications. It is built to operate at a maximum voltage of 440V AC with a 90W power rating, supporting motor loads up to 32A and utilizing three separate poles for precise phase management.

Its compact body measures 66mm in length, 45mm in width, and 60mm in depth, easily fitting into modern control panels and space-constrained installations. The LUCAX6B starter provides an IP40 enclosure rating, ensuring good protection from solid objects and basic protection against accidental contact, suitable for standard industrial environments.

This unit is designed with advanced safety features, including integrated thermal overload and short-circuit protection, phase-failure and phase-imbalance protection, and insulation break detection (equipment protection only). The manual reset and class 10 trip functions ensure quick intervention and operational continuity after faults, helping to protect motors and connected devices from unexpected damage or downtime.

The LUCAX6B is part of Schneider Electric's TeSys U modular system, offering plug-and-play flexibility for motor control and protection. Users can select and change plug-in protection modules to meet evolving control voltage and motor protection needs, enabling rapid configuration and upgrade. Compatible with LU9 type auxiliary contacts, this unit allows efficient wiring, easy diagnostics, and a streamlined design process, saving assembly time and reducing wiring complexity.

Its broad-band electronic control enables improved overload protection with fewer components, maintaining total coordination for fast service restoration after a short circuit. The space-saving 45mm width is maintained even for reversing applications, permitting smaller panels and greater design flexibility.

Certified for hazardous areas (ATEX) and compliant with EN 60947-6-2, UL 508 Type E, CSA C22.2 No. 14 type E, and IEC 60947-6-2 standards, the LUCAX6B starter is suitable for demanding environments in industrial automation, manufacturing, water treatment, and commercial motor control installations.

Offers direct-on-line starting for motors, essential for operational reliability in industries. Protects against overloads, short circuits, phase failure, and insulation breaks. Modular design allows rapid assembly and customization using plug-in modules.

Manual reset and class 10 trip ensure swift motor protection response. Broad-band electronic control unit optimizes overload protection. Space-saving design ideal for compact panels and flexible installations. Compliant with global industrial safety and performance standards.

Applications include industrial automation, HVAC, manufacturing, and water treatment motor control. Discover more advanced motor starters and automation solutions from Schneider Electric on EnvMart’s Motor Starters category.
