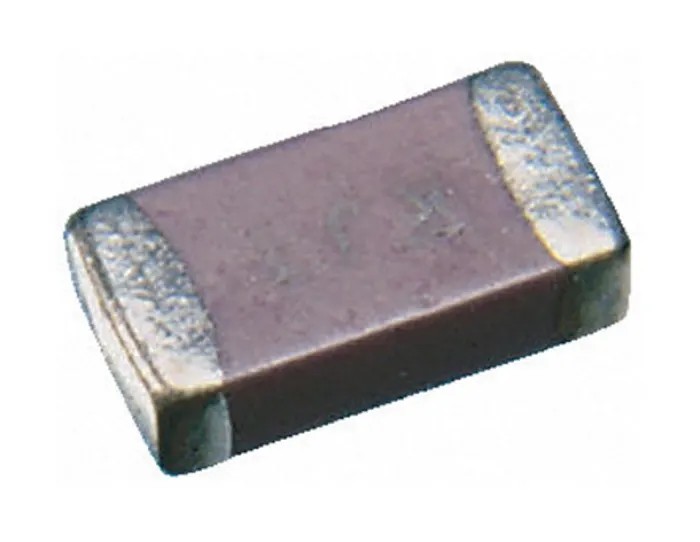

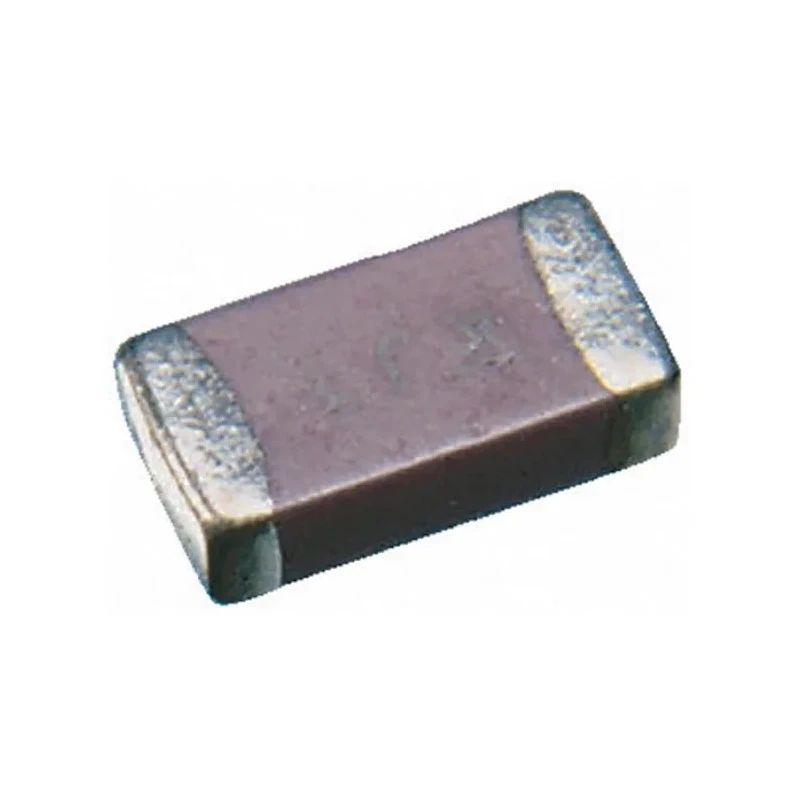

KEMET Multilayer Ceramic Capacitor 1 pF, 200V DC, ±0.25 pF, C0G Dielectric, Surface Mount, 0805 Case, C0805C109C2GACTU
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V dc |
| Brand | KEMET |
| Height | 0.78mm |
| Length | 2mm |
| Model | C0805C109C2GACTU |
| Packaging | Tape & Reel |
| Width | 1.25mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±0.25 pF |
| Capacitance | 1pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0805 |
| Dielectric | C0G |
| EPCOS 1pF MLCC, 50V dc V, ±0.25pFBrand | Epcos |
Key Features
- Ultra-stable, low loss Class I multilayer ceramic capacitor for demanding circuits.
- Precisely rated with 1 pF capacitance and ±0.25 pF tolerance for high-frequency applications.
- Robust voltage handling up to 200V DC ensures reliable performance in various electronic circuits.
- Compact 0805 package with 2 mm length, 1.25 mm width, and 0.78 mm height for efficient PCB assembly.
- Surface mount design supports automatic placement using tape and reel, ideal for modern manufacturing.
- Constructed with C0G (NPO) dielectric for excellent temperature stability between -55°C and +125°C.
- Solder termination and nickel barrier plated tin finish for secure connections and durability.
- Complies with EIA 481, EIA 624, EIA 556, J-STD-020, and IPC-7351 standards.
Product Description
KEMET C0805C109C2GACTU Multilayer Ceramic Capacitor is engineered for precision and reliability in demanding electronic applications. Featuring a 1 pF capacitance with a tight ±0.25 pF tolerance, this capacitor delivers stable and consistent performance suited for high-frequency circuits and timing applications. It operates at a maximum voltage of 200V DC, making it adaptable for a wide range of signal and decoupling tasks where robust voltage handling is crucial.
The surface mount configuration, using a compact 0805 package (2 mm × 1.25 mm × 0.78 mm), supports streamlined PCB assembly and manufacturing productivity. The tape and reel packaging is tailored for automated insertion into machinery, facilitating bulk production requirements. The capacitor employs a C0G dielectric, well-known for its excellent stability, negligible capacitance change over temperature, and ultra-low loss; these characteristics are especially advantageous for mobile, video, and RF tuner designs.
For reliability and durability, the component is built with stacked construction and nickel barrier terminations finished with plated tin (NiSn), ensuring solid solder joints and corrosion resistance. Its operating temperature range spans from -55°C to +125°C, ideal for environments exposed to varying thermal conditions. This capacitor meets multiple industry standards including EIA 481, EIA 624, EIA 556, J-STD-020, and IPC-7351, confirming its suitability for sophisticated industrial and commercial electronic systems.
Applications include decoupling, timing, filter networks, resonant circuits, and any scenario requiring ultra-stable capacitive elements. Its low loss and Class I formulation (COG/NPO) position it as a preferred choice for critical signal paths and environments demanding minimal drift.
Industrial sectors benefiting from this capacitor include electronics manufacturing, telecommunications, instrumentation, automotive electronics, and consumer device assembly. The surface mount design simplifies integration into modern Automated Assembly lines and supports high-speed production.
Explore more high-performance passives and electronic components from KEMET in the Multilayer Ceramic Capacitors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 1 pF with a tolerance of ±0.25 pF.
It has a maximum voltage rating of 200V DC, making it suitable for various electronic circuits.
The dimensions of the 0805 package are 2 mm in length, 1.25 mm in width, and 0.78 mm in height.
It uses a C0G (NPO) dielectric, which provides excellent temperature stability and low loss characteristics.
This capacitor operates within a temperature range of -55°C to +125°C.
It is packaged in tape and reel format, which facilitates automated insertion in manufacturing processes.
It features solder termination, which ensures secure connections during installation.
It complies with several standards including EIA 481, EIA 624, EIA 556, J-STD-020, and IPC-7351.
The capacitor is constructed using a stacked method, enhancing its performance and reliability.
It is suitable for applications such as decoupling, timing, filter networks, and resonant circuits.
The C0G dielectric is known for its stability and negligible capacitance change over temperature, making it ideal for high-frequency applications.
Industries such as electronics manufacturing, telecommunications, instrumentation, and automotive electronics can benefit from this capacitor.
