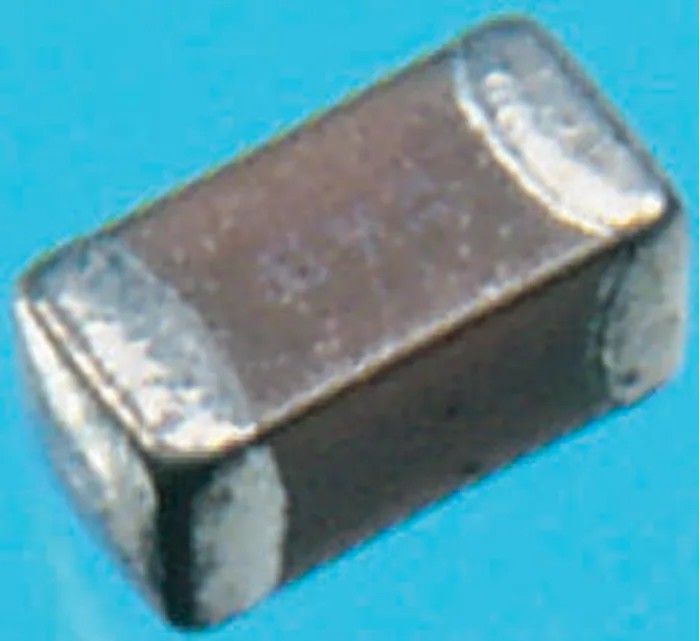

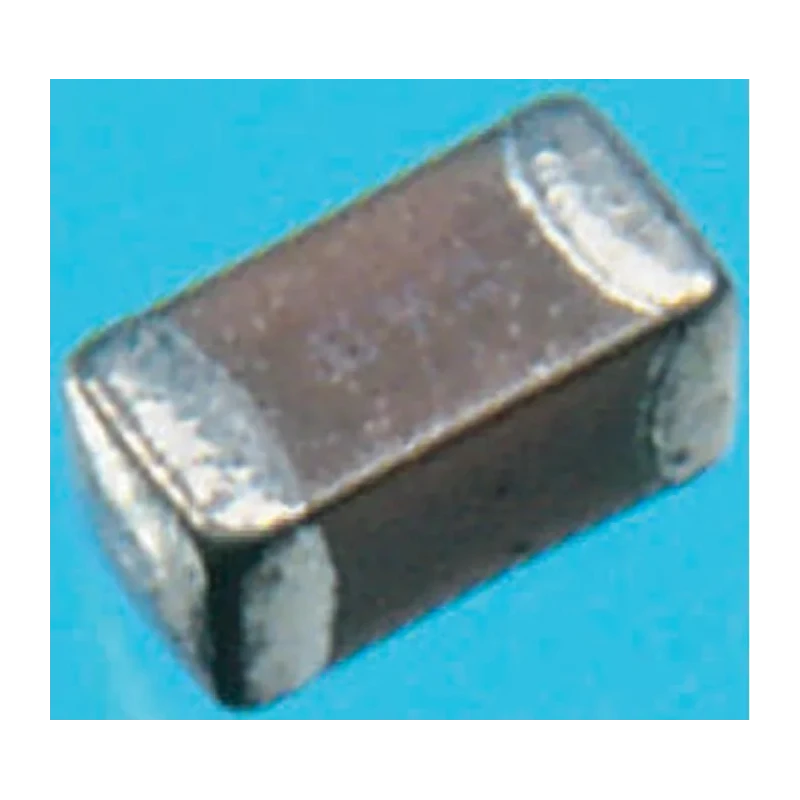

KEMET Multilayer Ceramic Capacitor 560pF 25V DC ±5% C0G 0603 Surface Mount C0603C561J3GACTU
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 25V dc |
| Brand | KEMET |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | C0603C561J3GACTU |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 560pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Suppression Class | Class II |
Key Features
- Features a 560pF capacitance value with ±5% tolerance for accurate filtering and timing circuits.
- Rated for 25V DC operation to support a wide range of low voltage electronic circuits.
- Constructed with a temperature-stable C0G (NP0) dielectric material ensuring minimal change in capacitance across wide temperature and voltage ranges.
- Compact 0603 surface mount package optimizes PCB space and supports automated assembly.
- Stacked construction with solder termination for reliable board integration in professional and industrial designs.
- Wide operating temperature range from -55°C to +125°C expands suitability for demanding environments.
- Supplied in tape and reel packaging ideal for high-volume PCB manufacturing.
- Certified to standards including EIA 556, EIA 624, IPC-7351, J-STD-020, and EIA 481 for quality assurance.
Product Description
The KEMET C0603C561J3GACTU is a Multilayer Ceramic Capacitor designed for applications requiring precise and stable capacitance performance. This SMD capacitor delivers a 560pF value with a tight ±5% tolerance and supports operation up to 25V DC. It utilizes a C0G (NP0) dielectric system, ensuring superior temperature compensation and stable electrical properties over the -55°C to +125°C range, making it ideal for high-reliability, precision electronic circuits.
The device is manufactured in the compact 0603 (1608 metric) surface mount format. Its dimensions (1.6mm length x 0.8mm width x 0.8mm height) allow for high-density PCB placement, supporting efficient board design and automated assembly processes. The solder termination further enhances secure and durable integration onto printed circuit boards.
C0G dielectric is recognized for almost negligible change in capacitance over time, voltage, and temperature variations, with a capacitance drift limited to ±30ppm/°C from -55°C to +125°C. This makes the capacitor exceptionally suitable for use in resonant circuits, timing, filtering, bypassing, and decoupling applications, as well as for frequency control where the Q factor and capacitance stability are crucial.
The capacitor is produced following strict industry standards including EIA 556, EIA 624, IPC-7351, J-STD-020, and EIA 481, assuring high quality and reliability. The tape and reel packaging supports efficient pick-and-place operations in mass production environments. While primarily suited for industrial and professional applications, its robust construction also benefits commercial, telecommunications, and automotive electronics, though it is not qualified to automotive standards for functional safety-critical circuits.
Due to its minimal size, low ESR, and high reliability, the KEMET C0603C561J3GACTU improves PCB design flexibility and performance consistency. It plays a critical role in circuits demanding stable capacitance, such as analog and digital signal chains, RF coupling and decoupling, and high-frequency tuning. With a country of origin listed as Mexico, this component can be deployed in global electronic assembly supply chains with confidence.
For more ceramic capacitor options, you can browse the full range of MLCCs within the electronics components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 560pF with a tolerance of ±5%.
It is rated for a maximum operating voltage of 25V DC.
It utilizes a C0G (NP0) dielectric material, which provides minimal change in capacitance across temperature and voltage variations.
The capacitor has dimensions of 1.6mm in length, 0.8mm in width, and 0.8mm in height.
It operates within a temperature range of -55°C to +125°C.
It is supplied in tape and reel packaging, which is ideal for high-volume PCB manufacturing.
This unit features solder termination for secure integration onto printed circuit boards.
It is certified to several standards including EIA 556, EIA 624, IPC-7351, J-STD-020, and EIA 481.
It is suitable for use in resonant circuits, timing, filtering, bypassing, decoupling, and frequency control applications.
It features a stacked construction, which enhances its performance and reliability in electronic circuits.
This model has a low equivalent series resistance (ESR), which improves performance consistency in circuits.
The country of origin for this capacitor is Mexico.
