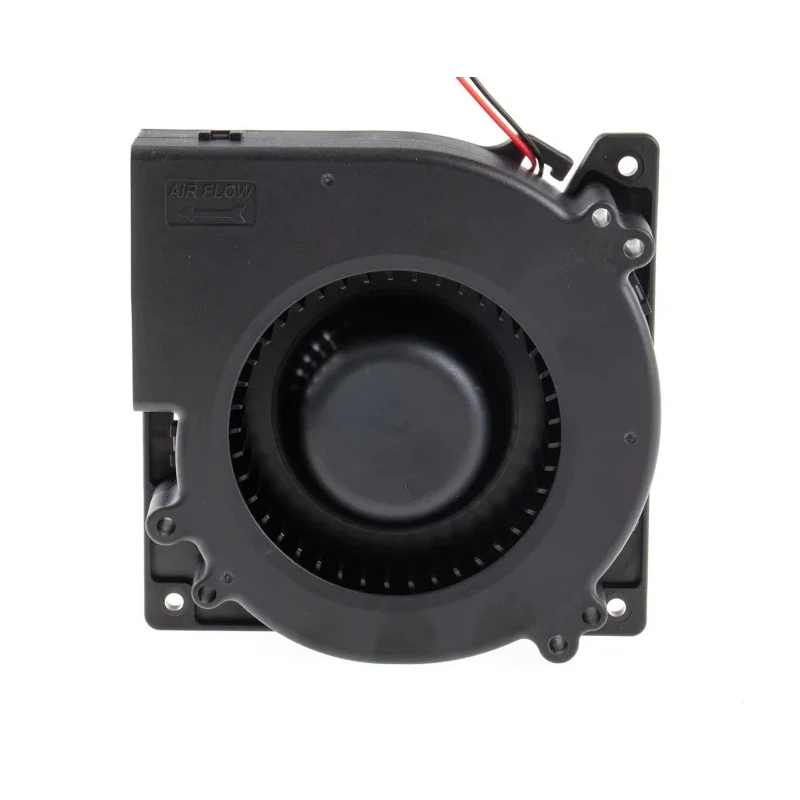

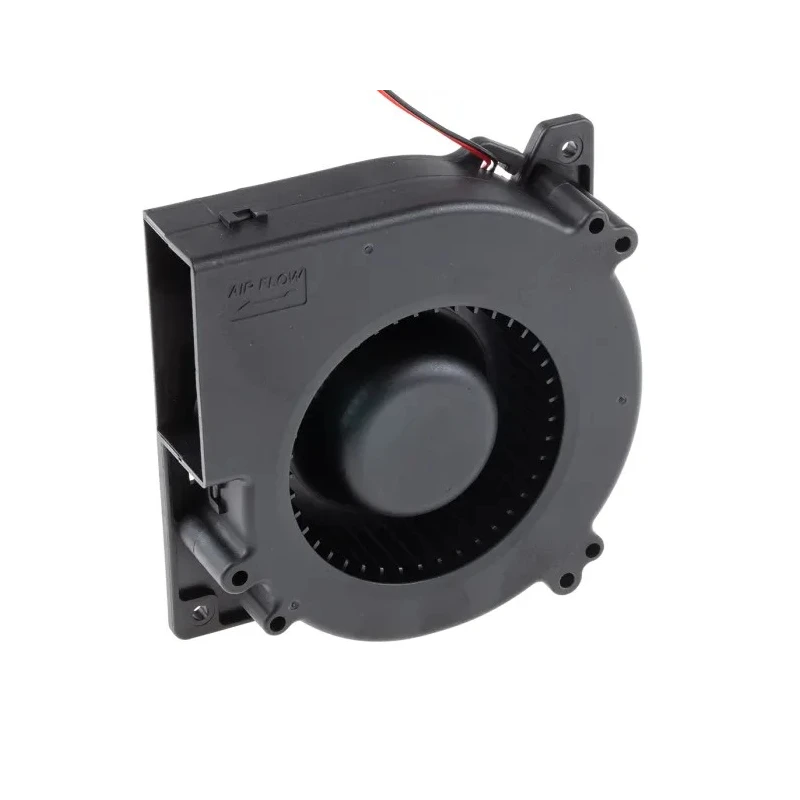

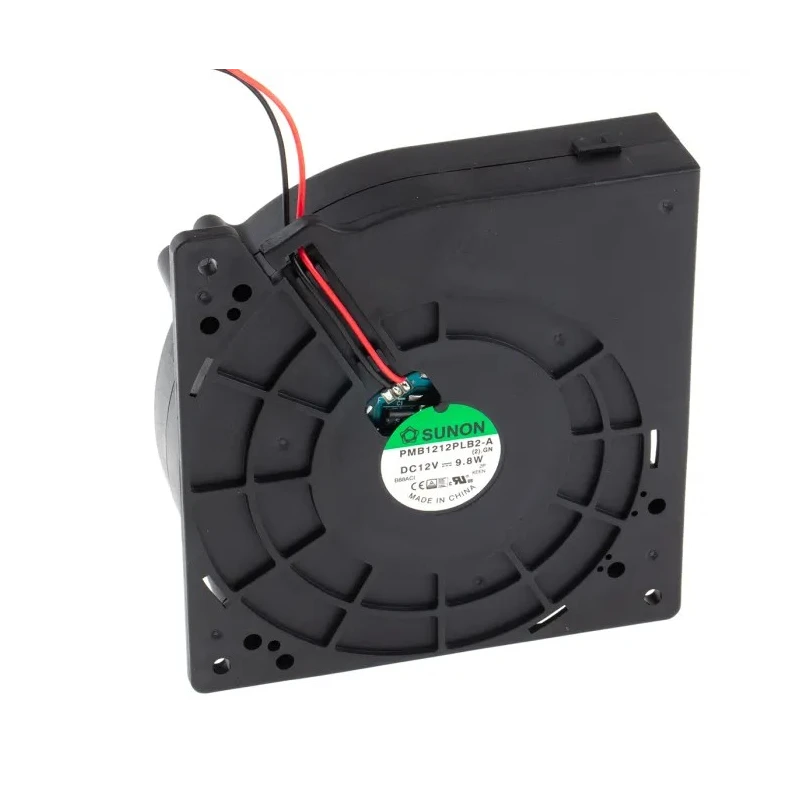

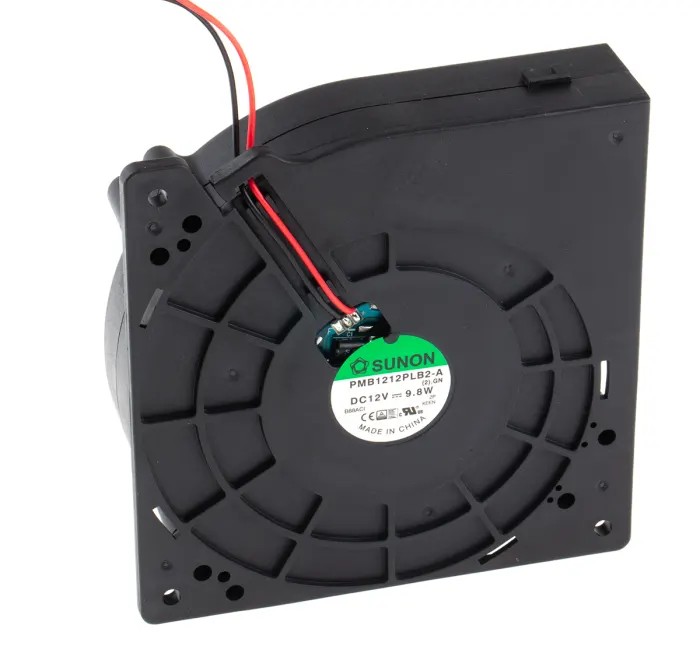

Sunon PMB Series Centrifugal Blower Fan 12V DC, 35.9 CFM, Ball Bearing, Brushless, 120x120x32mm PMB1212PLB2-A(2).GN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Sunon |
| Blower Type | Blower |
| Height | 120mm |
| Fan Speed | 2500rpm |
| Air Flow | 35.9cfm |
| Model | PMB1212PLB2-A(2).GN |
| Certifications | CE, UL, VDE, cUR, RoHS, ISO, TUV, CSA, CCC |
| Depth | 32mm |
| Noise Level | 53.8dBA |
| Width | 120mm |
| Static Pressure | 0.89in/H2O |
| Series | PMB |
| Maximum Current | 820mA |
| Terminal type | Wire |
| Inlet Diameter | 16.6mm |
| Outlet Diameter | 16.6mm |
| Supply Voltage | 12V dc |
| Bearing Type | Ball |
| Standards/Approvals | CE, UL, VDE, cUR, RoHS, ISO, TUV, CSA, CCC |
| AC or DC Operation | DC |
| Commutation Type | Brushless |
| Mounting Hole Diameter | 105 mm |
| NMB Centrifugal Fan, 12 V dc, 32.86m³/h, DC Operation, 120 x 120 x 32mmBrand | NMB |
Key Features
- Delivers a maximum airflow of 35.9 CFM for effective ventilation and cooling.
- Operates at 12V DC supply voltage, suitable for electronic and HVAC systems.
- Incorporates a brushless DC motor with ball bearing for durability and quiet operation.
- Auto restart function and high-temperature endurance ensure reliable performance.

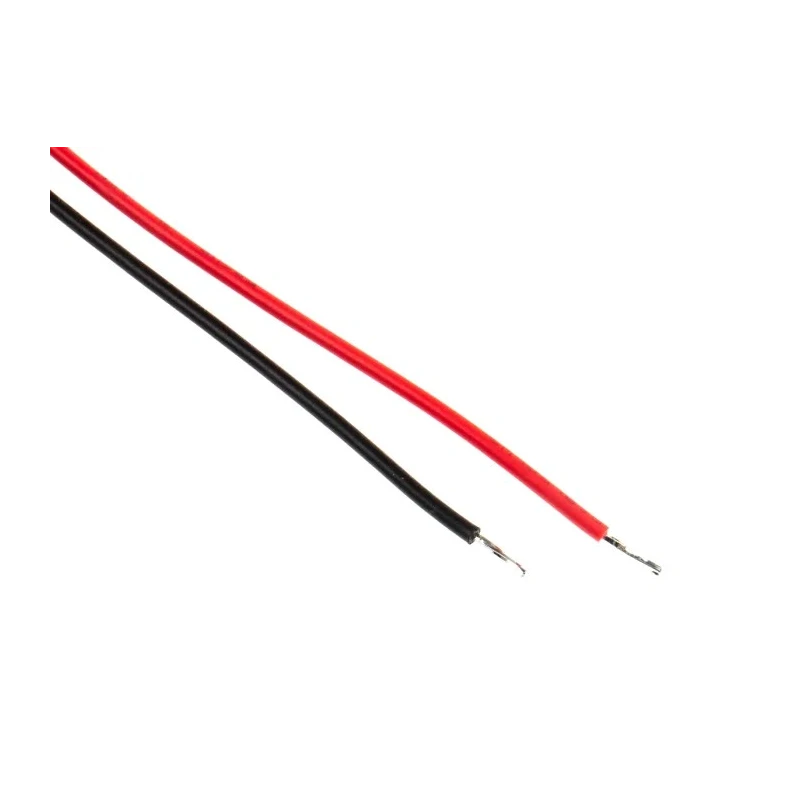

- Wire terminal type provides easy connectivity and integration.
- Low acoustic noise level of 53.8 dBA for minimal disturbance.
- Certified to multiple safety and quality standards including CE, UL, VDE, CSA, RoHS, ISO, TUV, and CCC.
Product Description
The Sunon PMB1212PLB2-A(2).GN is a highly efficient centrifugal blower fan, engineered for continuous industrial and HVAC ventilation tasks. Designed to operate at 12V DC, it delivers a powerful airflow of up to 35.9 CFM while maintaining a compact profile of 120 mm x 120 mm x 32 mm. The advanced brushless DC motor with ball bearing construction ensures durability, reliability, and low noise during prolonged operation.
Optimal for air conditioning units, building ventilation, electronic equipment cooling, and railway and automotive applications, this blower features an axial air intake and centrifugal exhaust with a backwards-curved impeller. Its robust thermoplastic enclosure and impeller enhance heat tolerance and performance stability across demanding environments.
The fan offers an auto restart function, class E insulation, and a wide operating temperature range from -10°C to 70°C. Noise levels are kept to a professional minimum at 53.8 dBA, making it suitable for settings where low acoustic impact is desirable. Wire terminals allow for straightforward electrical integration.
Multiple certifications guarantee compliance with safety and quality standards, including CE, UL, VDE, cUR, RoHS, ISO, TUV, CSA, and CCC. With a maximum current draw of 820 mA and static pressure of 0.89 in/H2O, the PMB1212PLB2-A(2).GN is ideal for technical installations requiring precise airflow and reliable performance.
Industrial use cases include HVAC installations, commercial ventilation, electronic component cooling, transportation environments, and precision air handling applications. The compact form factor enables easy mounting, with a mounting hole diameter of 105 mm, and inlet/outlet ports of 16.6 mm each.
Explore more Centrifugal Fans and industrial cooling solutions from Sunon and other leading brands in the HVAC and air handling category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a maximum airflow of 35.9 CFM, making it suitable for effective ventilation and cooling applications.
It operates at a supply voltage of 12V DC, which is compatible with various electronic and HVAC systems.
This blower fan is certified to multiple safety and quality standards, including CE, UL, VDE, RoHS, ISO, TUV, CSA, and CCC.
The noise level is rated at 53.8 dBA, allowing for minimal disturbance during operation.
The dimensions are 120 mm in width, 120 mm in height, and 32 mm in depth, making it compact for various installations.
It has a static pressure rating of 0.89 in/H2O, suitable for applications requiring precise airflow control.
It incorporates a brushless DC motor with ball bearing construction, providing durability and quiet operation.
The maximum current draw is 820 mA, which should be considered during installation to ensure proper power supply.
The mounting hole diameter is 105 mm, facilitating easy installation in various setups.
It operates effectively within a temperature range of -10°C to 70°C, suitable for diverse environmental conditions.
This model is optimal for HVAC installations, commercial ventilation, electronic equipment cooling, and various precision air handling applications.
It features wire terminals, allowing for straightforward electrical connectivity and integration into systems.
