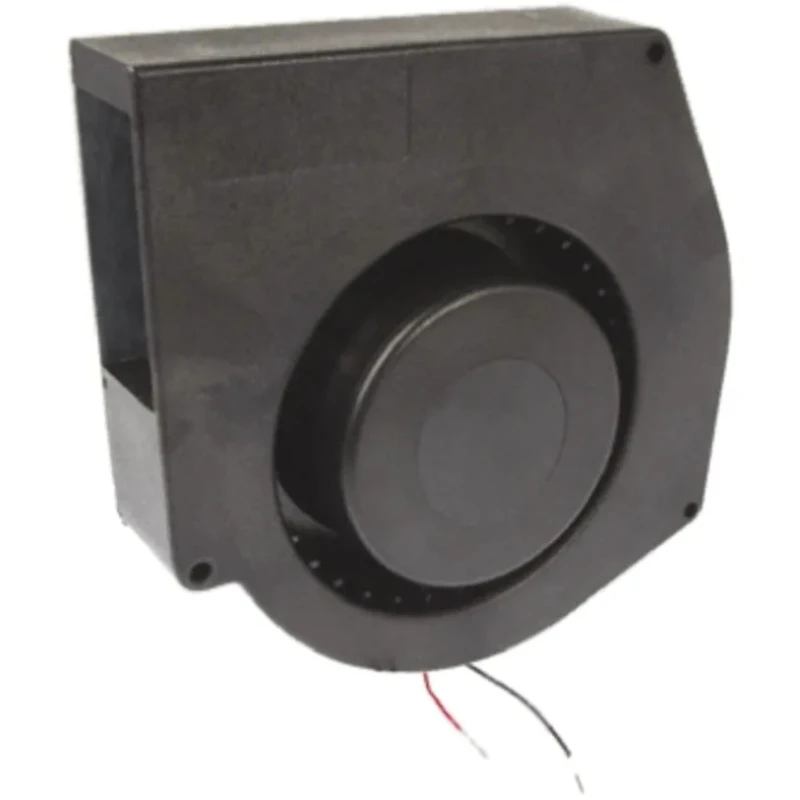

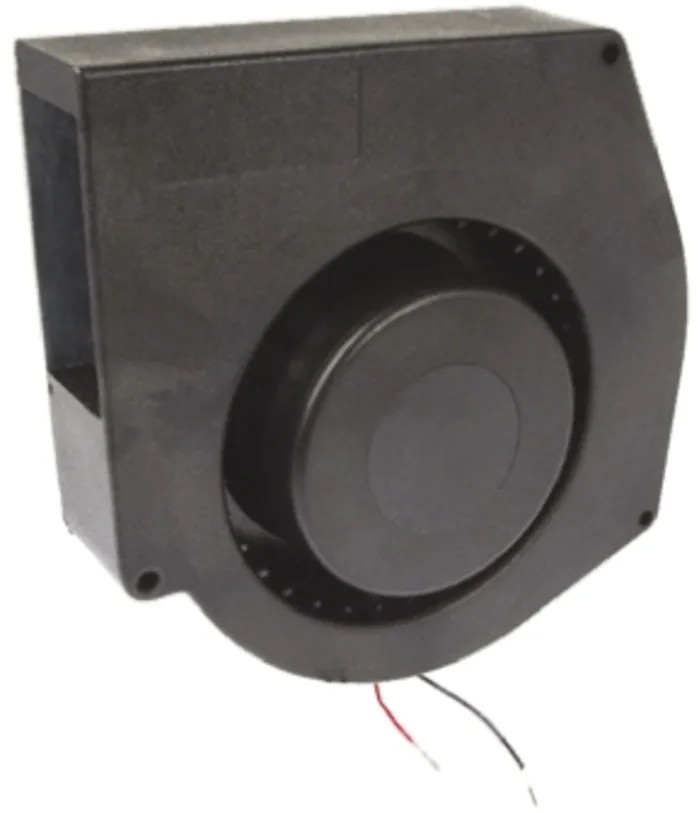

COMAIR ROTRON Spinnaker Series Brushless Centrifugal Blower Fan 24V DC 60 CFM 2500 RPM SPD24B1 19032183A
Specifications
| Country of Origin | China |
|---|---|
| Brand | COMAIR ROTRON |
| Blower Type | Blower |
| Height | 161mm |
| Fan Speed | 2500rpm |
| Air Flow | 60cfm |
| Model | SPD24B1 19032183A |
| Depth | 50mm |
| Noise Level | 57dBA |
| Width | 161mm |
| Static Pressure | 1.1in/H2O |
| Series | Spinnaker |
| Maximum Current | 1.25A |
| Terminal type | Wire |
| Inlet Diameter | 101.6mm |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | RoHS, TUV, CE, UL |
| AC or DC Operation | DC |
| Commutation Type | Brushless |
| Mounting Hole Diameter | 4.77 mm |
| Sensor Output Type | Tachometer |
Key Features
- Operates at 24V DC with a maximum current of 1.25A.
- Provides an airflow rate of 60 cubic feet per minute for effective ventilation.
- Features a brushless motor with electronically locked rotor protection and auto-restart capability.
- Compact dimensions of 161 mm width, 161 mm height, and 50 mm depth for versatile installation.
- Noise level measured at 57 dBA ensuring quiet operation.
- Fan speed of 2500 RPM with ball bearing type for reliable and long-lasting service.
- Includes tachometer sensor output for precise speed monitoring.
- Static pressure rating of 1.1 in/H2O suitable for various industrial and HVAC applications.
Product Description
COMAIR ROTRON SPD24B1 19032183A centrifugal blower fan is a high-performance Spinnaker series blower offering efficient air movement for industrial and HVAC applications. It operates on 24V DC power and delivers a stable airflow of 60 cubic feet per minute with a fan speed of 2500 RPM powered by a brushless motor. The fan includes electronically locked rotor protection via a current limiter and automatic restart capability, enhancing operational safety and reliability.
The fan construction is robust with black housing and features a compact footprint measuring 161 mm by 161 mm by 50 mm, making it suitable for space-constrained environments. Noise emission is limited to 57 dBA, ideal for environments where quiet operation is important. The ball bearing design ensures durability and sustained performance over continuous use.
Additional technical features include a tachometer sensor output enabling precise speed monitoring and control, a static pressure rating of 1.1 in/H2O to support various ventilation needs, and compliance with international safety and environmental standards including RoHS, TUV, CE, and UL. The inlet diameter is 101.6 mm with mounting holes sized at 4.77 mm, facilitating straightforward installation.
Designed for use across industrial settings such as manufacturing facilities, HVAC systems, laboratory environments, and commercial equipment cooling, this centrifugal blower fan meets rigorous demands with reliable power and airflow management.
Key benefits include enhanced energy efficiency through brushless commutation, reliable automatic restart after fault conditions, and broad operating temperature range from -40°C to +85°C. The origin of manufacture is China.
Operates at 24V DC with a maximum current of 1.25A. Delivers 60 cfm airflow at 2500 rpm fan speed. Brushless motor with electronically locked rotor protection. Compact dimensions: 161x161x50 mm (WxHxD). Noise level of 57 dBA for quiet operation.
Ball bearing construction for durability. Tachometer sensor output for speed monitoring. Static pressure rating of 1.1 in/H2O. Compliant with RoHS, TUV, CE, UL standards. Suitable for industrial, HVAC, and laboratory applications.
Explore the complete range of Centrifugal Fans and industrial cooling solutions at EnvMart for all your industrial ventilation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an airflow rate of 60 cubic feet per minute (CFM).
It operates at a supply voltage of 24V DC.
The maximum current draw is 1.25A.
The fan speed is rated at 2500 RPM.
The dimensions are 161 mm in width, 161 mm in height, and 50 mm in depth.
The noise level is measured at 57 dBA, ensuring quiet operation.
It has a static pressure rating of 1.1 in/H2O.
Yes, it includes a tachometer sensor output for precise speed monitoring.
It features a brushless motor with electronically locked rotor protection.
It complies with RoHS, TUV, CE, and UL standards.
The inlet diameter is 101.6 mm.
It is suitable for various industrial and HVAC applications, including manufacturing facilities and laboratory environments.
