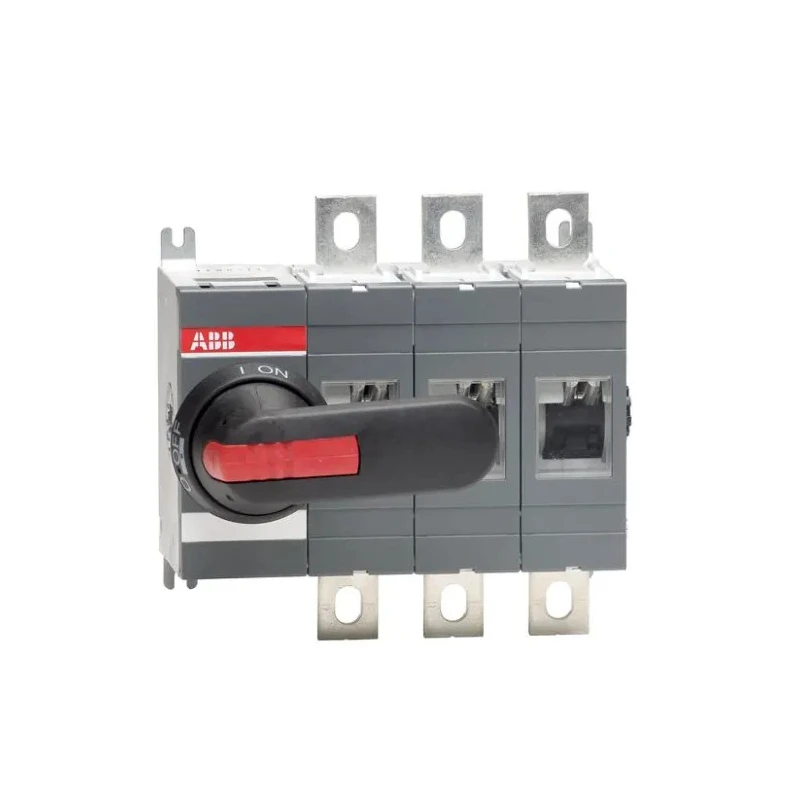

ABB 3-Pole Base Isolator Switch 16A 690V AC IP00 Lug Terminal 191x107x185mm

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Base Isolator Switch 16A 690V AC IP00 Lug Terminal 191x107x185mm



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	191mm
Model	IP00
Depth	185mm
IP Rating	IP00
Width	107mm
Mount Type	Base
Power Rating	400 kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Switching Current	16A
Terminal type	Lug Terminal
Electrical Phase	3
Handle Colour	Black
Number of Poles	3
Standards/Approvals	CE, RoHS
Switching AC Voltage	690V ac

Key Features

Three-pole isolator switch designed for industrial electrical isolation applications.
Rated for 16A and 690V AC operation, suitable for demanding power supplies.
Base-mounted unit with lug terminals for straightforward bolt or stud installation.
Compliant with IP00 rating; suitable for protected installation environments.
Features black ergonomic handle for easy switching between on/off positions.
Supports padlock compatibility to ensure safe isolation during maintenance.
Auxiliary contacts available for integration with automated systems.
Wide operating temperature range from -25°C to 70°C for reliable performance.

Product Description

ABB 1SCA022718R8780 3-Pole Base Isolator Switch is engineered for precision electrical disconnection in industrial and commercial power supply setups. This switch is ideal for controlling and isolating three-phase circuits, providing a robust solution for multitasking in complex environments.

With a rated capacity of 16A and ability to withstand up to 690V AC, the device is suited to high-power applications such as mechanical engineering, automated manufacturing lines, and industrial electrical distribution circuits. Its base-mount design incorporates lug terminals, allowing for rapid and secure installation without soldering, ensuring ease of maintenance and configuration.

The IP00 rating indicates the isolator should be installed in an enclosure or protected environments where ingress protection from dust and water is ensured separately. The switch features a black ergonomic handle, enabling clear, tactile switching between on and off states, which are well-marked for operational clarity. Padlock compatibility supports safety protocols by allowing lockout during servicing or maintenance procedures.

A wide operating temperature range from -25°C to 70°C offers resilience in varied climatic conditions, while the 12kV impulse voltage protection helps prevent equipment damage from hazardous overvoltages. Integrated auxiliary contacts make it straightforward to connect with automated control systems for enhanced process integration.

Constructed to meet CE and RoHS standards, the ABB isolator switch is recognized for reliability and compliance with international safety directives. With compact physical dimensions of 191mm length, 107mm width, and 185mm depth, the unit is designed for installations where space is premium, ensuring practical fitment in tight electrical panels.

Three-pole operation for multi-circuit isolation capability. 16A switching current and 690V AC voltage support. Direct lug terminal connections for fast, tool-less setup. Auxiliary contacts for automation and control system integration.

Impulse protection at 12kV enhances electrical safety measures. Comprehensive compliance with CE and RoHS international standards.

This isolator switch is essential in scenarios including industrial power supplies, machinery, process manufacturing, and electrical panel installations requiring robust isolation functionality. Explore ABB's range of Isolator Switches and related components in the Circuit Breakers & Fuse category on EnvMart.
