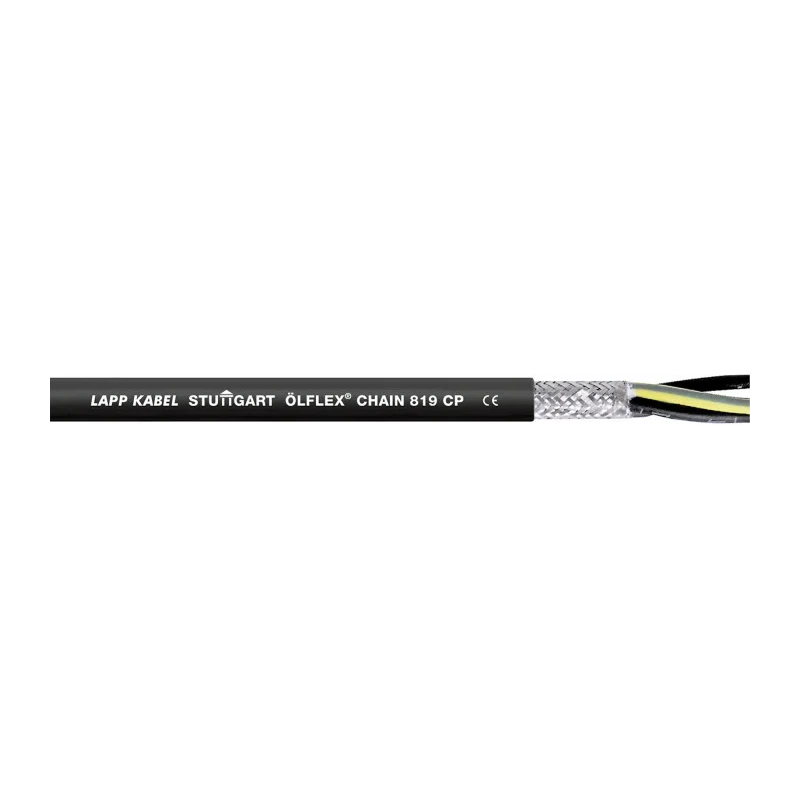

Lapp ÖLFLEX CHAIN 819 CP Control Cable, 4 Cores, 16 AWG, 50 m, Screened, Black Polyurethane Sheath 1027932

The Lapp ÖLFLEX CHAIN 819 CP Control Cable, model 1027932, is a highly flexible, screened multicore cable engineered for industrial automation and control environments. Specifically designed for power chains and moving machine features, this control cable provides robust shielding and durability to meet the demands of modern machinery.

This cable contains four stranded fine-wire bare copper conductors, each insulated with a high-grade PVC compound. The cores are twisted in layers to increase flexibility and are wrapped with a tinned copper braiding, which acts as an effective electromagnetic shield. This construction is especially critical for installations where electromagnetic compatibility (EMC) is required, such as in control and measurement systems.

The rugged polyurethane outer sheath, finished in black for easy identification (similar to RAL 9005), provides outstanding resistance to oils, diluted acids, alkaline solutions, abrasion, and mechanical stress. These features make the 819 CP series ideal for use in oily, wet industrial settings, as well as on assembly or production lines, where repeated flexing and movement are part of daily operation.

With an American Wire Gauge (AWG) of 16 and an overall cable length of 50 meters per reel, this cable ensures sufficient capacity for a range of industrial control applications. The maximum operating temperature of 80°C and the cable's resistance to a wide array of chemicals and lubricants help extend the service life, minimizing maintenance and downtime.

Lapp's design utilizes black cores with white numbers in accordance with recognized international standards (DIN EN 50334 and VDE 0295, class 5), promoting easy phase and conductor identification during installation and maintenance. The cable's basic performance line rating supports both moderate travel lengths and acceleration profiles, fitting light to medium-duty cable chain operations.

Typical applications for this screened control cable include use in flexible installations in machinery, wiring for tools, electrical cabinets, control and regulation circuits, or anywhere dynamic signaling and reliable power are required. The ÖLFLEX 819 CP ensures reliable transmission of signals and power with minimal electromagnetic interference (EMI), even in complex industrial electromagnetic environments.

The product is UL/cUL certified for North America (AWM Style 21576, File No. E63634) and meets a variety of international standards. It is suitable for dry, damp, or wet indoor locations and finds utility in industries such as automation, manufacturing, process control, and material handling where reliability and safety are paramount.

For installations demanding robust, flexible cables with superior EMC protection and oil resistance, the Lapp ÖLFLEX CHAIN 819 CP model 1027932 offers a precise solution. Explore further control cable options and matching cable glands from Lapp to build a complete cable routing solution for your industrial project requirements.
