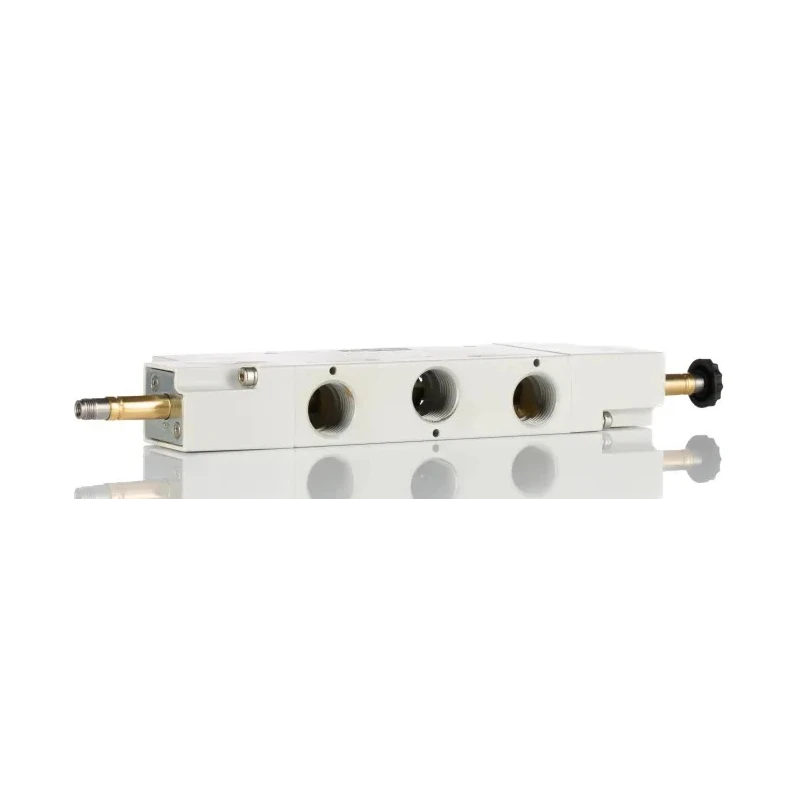

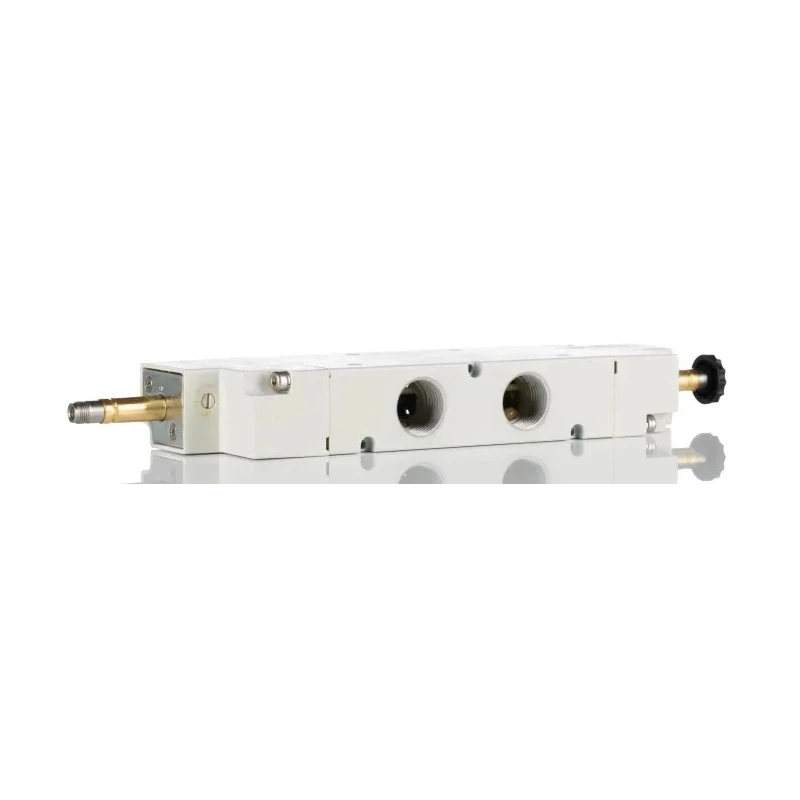

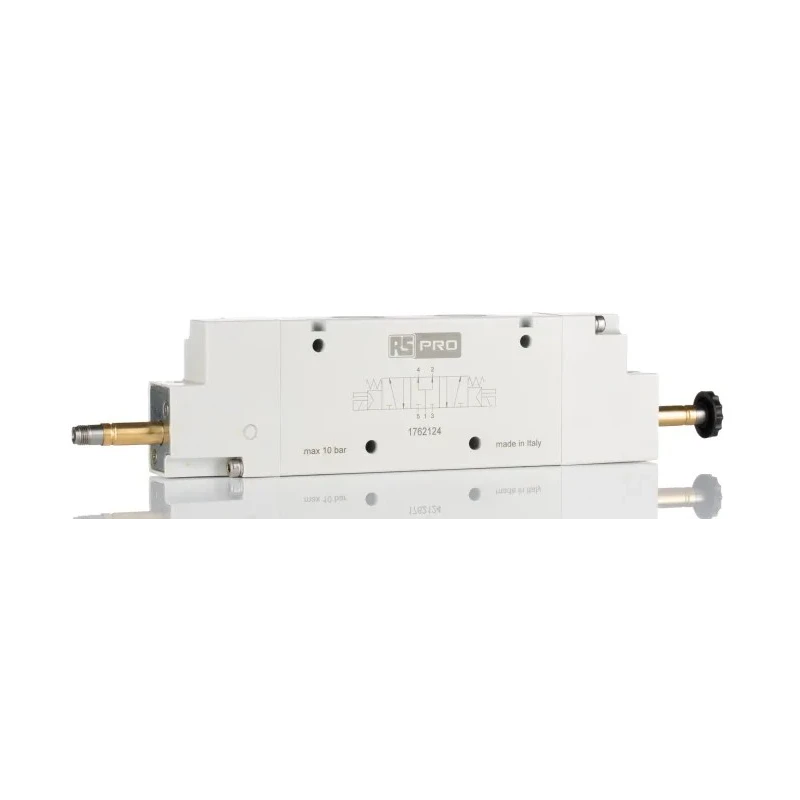

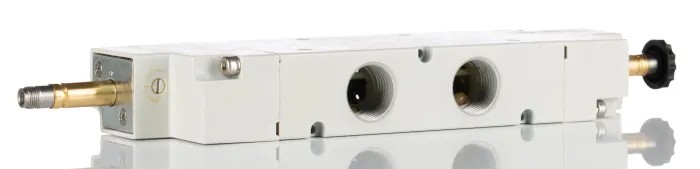

RS PRO Pneumatic Solenoid Valve 1/2 Inch Port, 5/3 PC, G Thread, Aluminium Body, 10 Bar, Single Solenoid, Model 176-2124

The RS PRO 176-2124 Pneumatic Solenoid Valve is a robust and versatile pneumatic control component designed for automation and process industries. With its 5/3 PC valve function, it provides flexible directional control of air flow, making it ideal for applications requiring multiple switching positions such as robotics, material handling, packaging, and food processing.

This valve features a single solenoid actuation, enabling accurate and rapid switching of states. The aluminium body ensures a combination of strength and light weight, supporting both durability and ease of installation. Its compact dimensions - 275.2 mm in length, 30 mm in width, and 60 mm in height - allow it to fit within space-constrained panels or machinery.

Port size is 1/2 inch with a G thread standard, and both the port and the connection are female, making the valve compatible with widely used pneumatic fittings. The seal is manufactured from nitrile rubber (NBR), known for its resistance to abrasion, oil, and many chemicals, supporting long-term reliability and performance.

Operating pressure reaches up to 10 bar, allowing this valve to support a wide range of industrial pneumatic tasks. Minimum pilot pressure is 1 bar, and maximum pilot pressure is 10 bar. Maximum flow rate of 5000 NL/min provides high capacity for fast actuation cycles.

Electrical connection is a plug socket type for simple integration into control circuits. The valve is base mounted for straightforward mechanical installation. Suitable for use in automation, robotics, heavy-duty handling, textile processing, and automotive industry applications.

The solenoid uses only 2 W of power, offering energy savings, and is designed for quick change-over and low change-over pressure. Temperature range is from -10°C to 60°C, ensuring suitability for varied environments. The valve is certified for hazardous areas (ATEX) and complies with RoHS and REACH standards.

Pneumatic solenoid valve with 5/3 PC valve function for versatile air flow control. Features single solenoid actuation for precise switching. Aluminium body construction ensures durability and lightweight design. Designed with a 1/2 inch female port and G thread for standardized connection.

Maximum operating pressure of 10 bar suitable for demanding pneumatic applications. Compact installation dimensions with 275.2 mm length, 30 mm width and 60 mm height. Seal material is nitrile rubber (NBR), offering resistance to wear and many chemicals.

Base mount type with plug socket electrical connection simplifies installation.

Primary use cases include pneumatic automation, robotics, handling, automotive processes, textile applications, heavy-duty environments and food processing tasks. Browse more high-quality pneumatic solenoid valves in the Solenoid Valves category and explore RS PRO’s reliable range for industrial automation at EnvMart.
