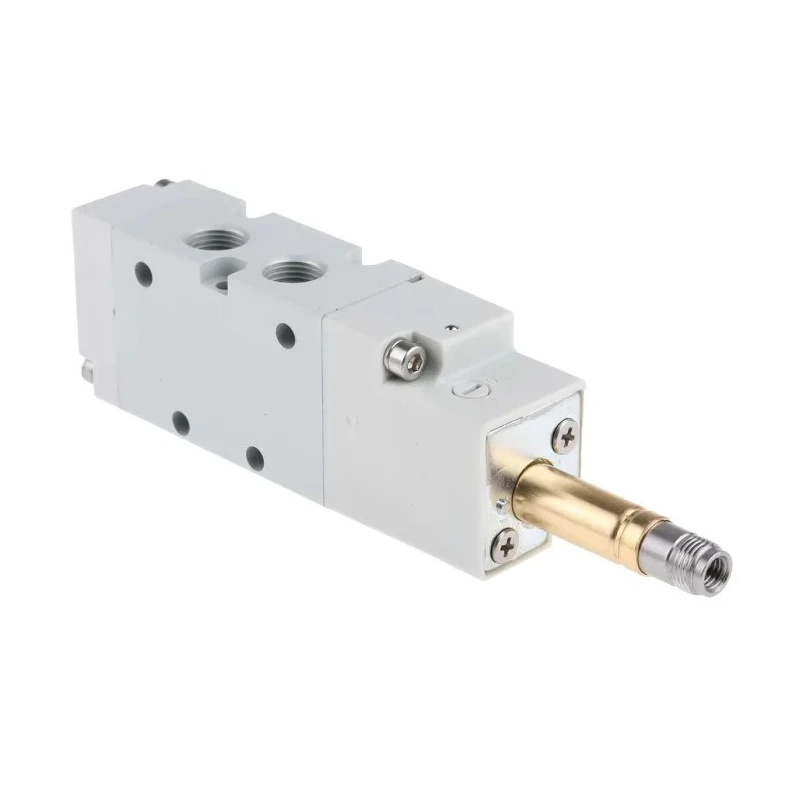

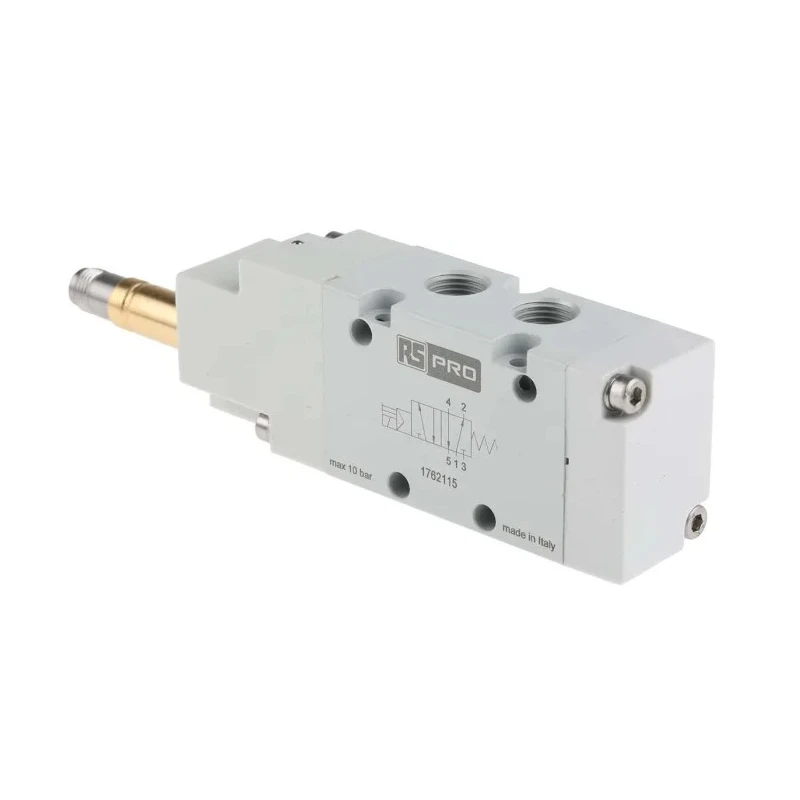

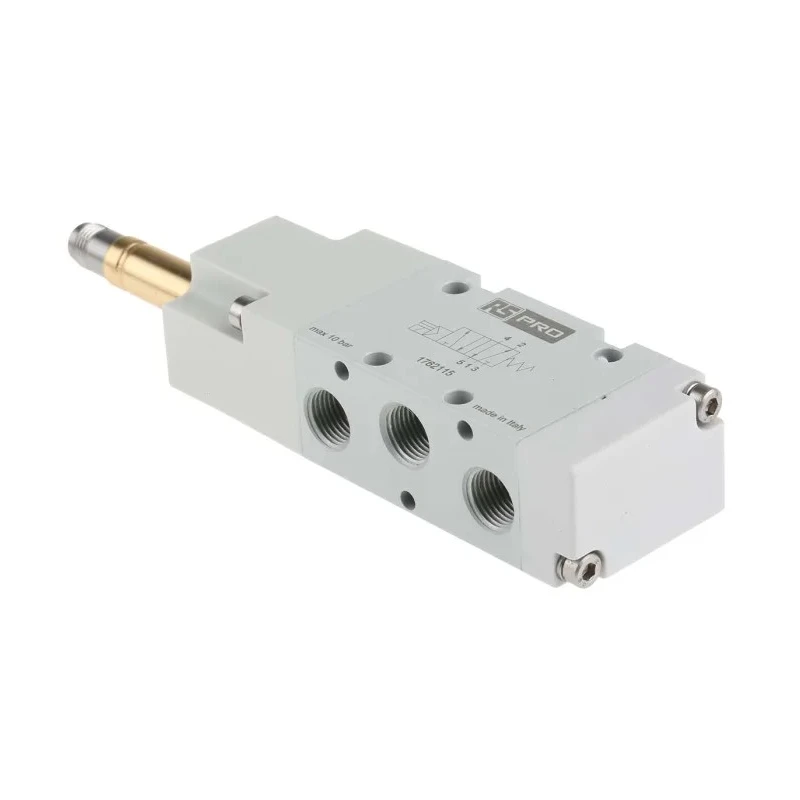

RS PRO Pneumatic Solenoid Valve 5/2 Monostable Solenoid Aluminium Body, G 1/8 in Port, 10 bar, 2W, 01V Series 176-2115
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 132.2mm |
| Model | 176-2115 |
| Width | 22mm |
| Mount Type | Base |
| Series | 01V |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 1 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 740NL/min |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RoHS, REACH |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 1bar |
| Valve Function | 5/2 Monostable |
| Electrical Connection Type | Plug Socket |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2W |
Key Features
- Monostable pneumatic solenoid valve with five ports and two switching positions.
- Integrated G 1/8 inch connection thread standard for easy installation.
- Robust aluminium body construction suitable for industrial applications.
- Rated for maximum operating pressure of 10 bar and maximum flow rate of 740 NL/min.
- Operates on solenoid actuation with 2W power consumption, plug socket electrical connection.
- Wide operating temperature range from -10°C to 60°C.
- Nitrile rubber (NBR) seals for improved durability and leak resistance.
- Base mounting configuration and female port gender.
Product Description
RS PRO model 176-2115 is a monostable pneumatic solenoid valve engineered for reliable airflow control in industrial automation systems. Designed with a durable aluminium body, this valve features a five-port, two-position configuration commonly used for double-acting cylinders in robotics, packaging, and textile machinery. The monostable function keeps the valve in its home position using a spring until the solenoid is activated.
The G 1/8 inch connection thread allows for secure and standardized installation, and the base-mounting configuration facilitates integration into various pneumatic setups. The valve operates with a single solenoid actuator, consuming 2W power via a plug socket electrical connection. It supports a maximum operating pressure of 10 bar and delivers a maximum flow rate of 740 NL/min, making it suitable for high-performance pneumatic circuits.
Seals are constructed of nitrile rubber (NBR) for chemical resistance and effective sealing across an operating temperature range from -10°C to 60°C. Overall dimensions include a length of 132.2 mm, width of 22 mm, and height of 32 mm, providing a compact footprint for space-constrained setups. The port gender is female, and the valve is supplied without a solenoid coil.
Key features include fast changeover times, low changeover pressure, robust construction, and ease of integration into automated controls. The valve function is 5/2 monostable, and it is suitable for applications in industrial, laboratory, manufacturing, packaging, and process automation sectors.
Monostable pneumatic solenoid valve with five ports and two switching positions. Integrated G 1/8 inch connection thread standard for easy installation. Robust aluminium body construction suitable for industrial applications.
Rated for maximum operating pressure of 10 bar and maximum flow rate of 740 NL/min. Operates on solenoid actuation with 2W power consumption, plug socket electrical connection. Wide operating temperature range from -10°C to 60°C.
Nitrile rubber (NBR) seals for improved durability and leak resistance. Base mounting configuration and female port gender. Compliance with RoHS, REACH, and ATEX standards for industry-required safety. Designed for automation, robotics, packaging, and textile industries. Manufactured in Italy.
This RS PRO 176-2115 pneumatic solenoid valve is ideal for demanding industrial environments requiring precise and reliable air control. Explore more options in Solenoid Valves and pneumatic automation products within the RS PRO brand category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It has a maximum flow rate of 740 NL/min.
This unit operates within a temperature range of -10°C to 60°C.
The body of this valve is constructed from aluminium.
This model features five ports.
It operates using solenoid actuation.
The valve uses a plug socket electrical connection.
The dimensions are 132.2 mm in length, 22 mm in width, and 32 mm in height.
The seals are made from nitrile rubber (NBR).
It complies with RoHS, REACH, and ATEX standards.
This unit features a base mounting configuration.
The valve function is 5/2 monostable.
