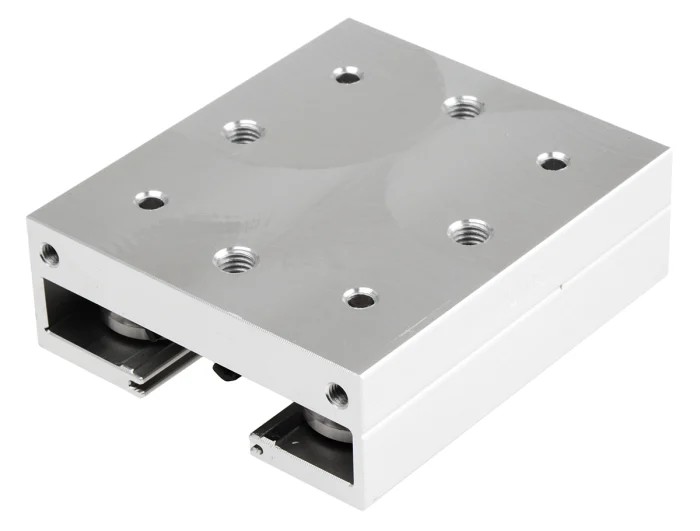

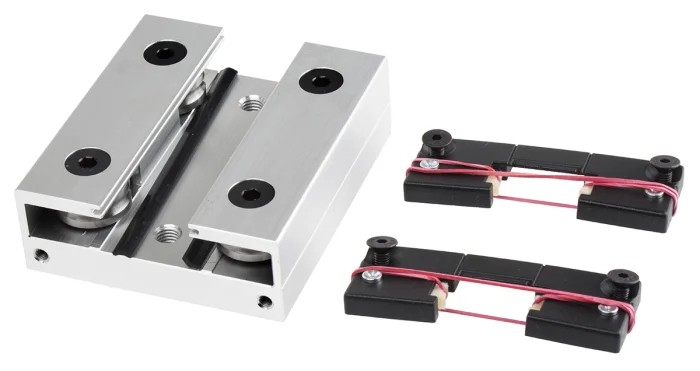

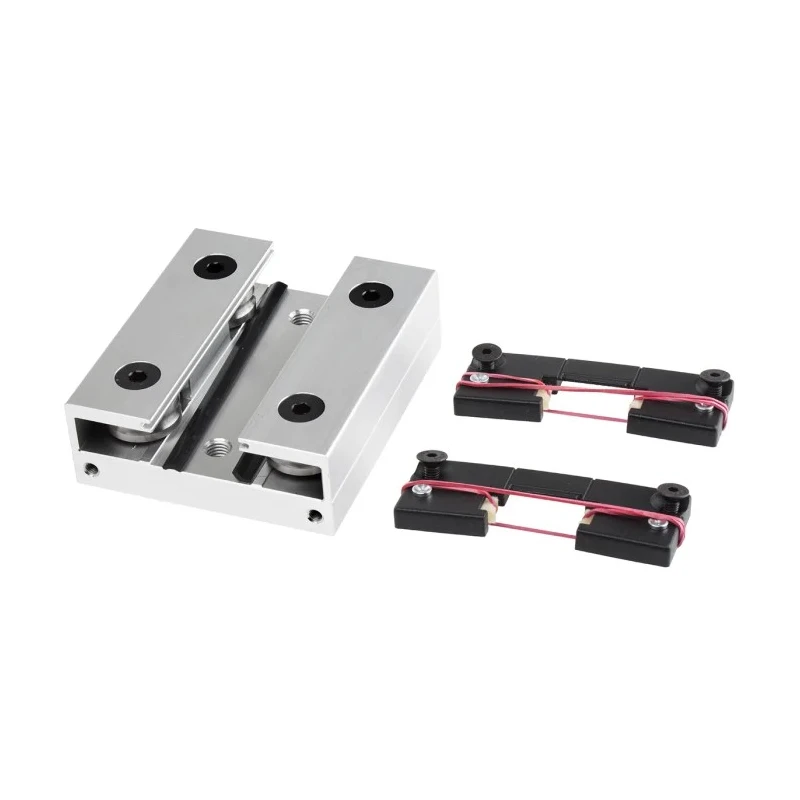

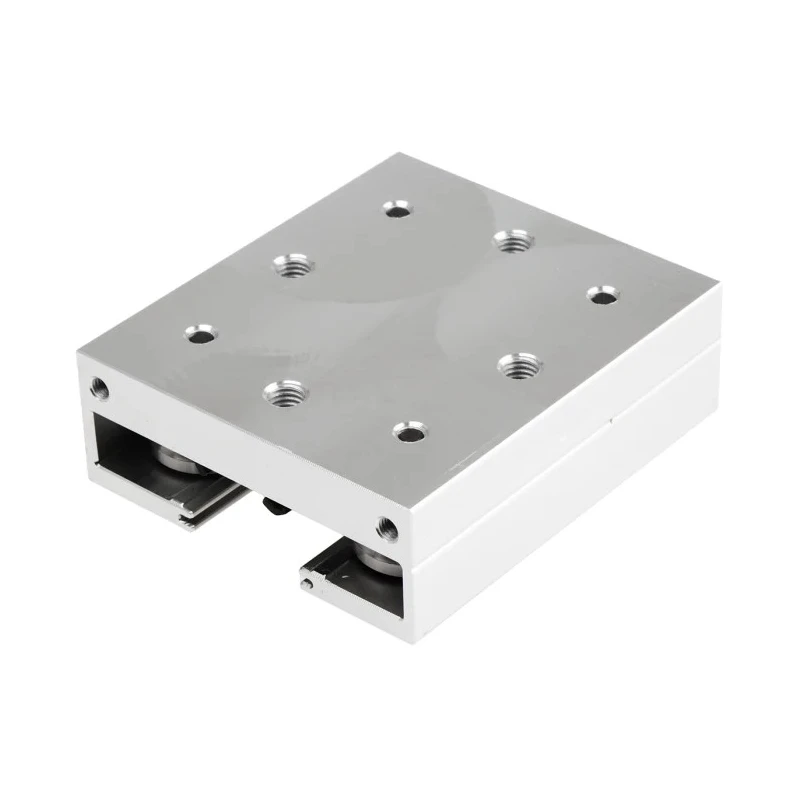

INA Linear Guide Carriage LFKL32-SF, LFKL Series, 6.6 kN Dynamic and 4.2 kN Static Load, 112 mm × 86 mm, Accepts 32 mm Rail

The INA LFKL32-SF Linear Guide Carriage from the LFKL Series is designed for precise, controlled linear motion in industrial automation, machinery, and manufacturing environments. With a robust dynamic load capacity of 6.6 kN and static load capability of 4.2 kN, this carriage provides dependable support for both moving and stationary applications. Its compact dimensions - 112 mm length and 86 mm width - enable installation where space is limited without sacrificing stability or performance.

The carriage operates on a compatible 32 mm rail, allowing straightforward integration with existing and new modular systems. Its lateral stability makes it particularly effective in applications requiring repeated, accurate positioning and controlled movement, such as compact gantry layouts, pick-and-place modules, linear actuator assemblies, and CNC ancillary axes. The carriage design delivers reduced installation envelope, which benefits setups where equipment depth is tightly constrained.

Engineered for demanding tasks, the linear guide carriage withstands frequent loading cycles, facilitating continuous, reliable motion control in production lines, automation cells, or laboratory setups. The dynamic load rating ensures the unit handles ongoing moving loads, while the static load rating provides secure hold and support for parked positions or heavy assembly stages. Compact form factor contributes to agility of motion and ease of mounting, while the broader width enhances lateral stability during operation.

Use cases include precision manufacturing, laboratory automation, industrial assembly, pick-and-place automation, and CNC engineering. The solution is ideal for applications where quiet, low-resistance travel and consistent performance under varying loads are required. Proper rail selection and installation ensure optimal functionality and longevity of the system.

Industrial buyers, engineers, and automation designers can leverage the INA LFKL32-SF carriage to enhance machine productivity and versatility. Its compatibility and robust engineering make it a reliable choice for motion systems, ensuring smooth, controlled travel and accurate positioning.
