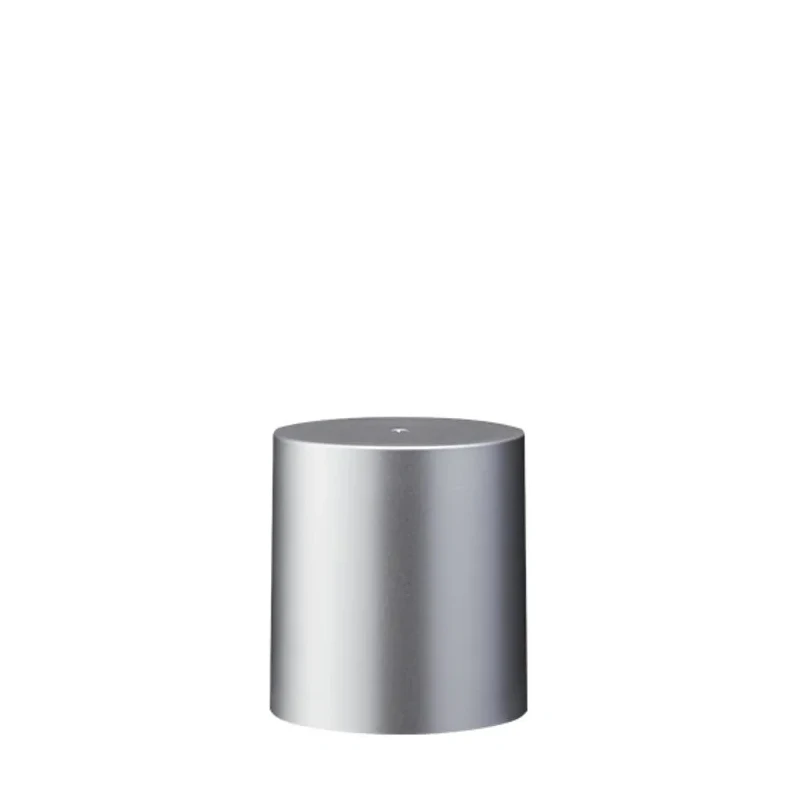

Patlite LR5-BU Signal Tower Buzzer Unit, Steady/Flashing LED, 24V DC, IP65
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 53.5mm |
| Model | LR5-BU |
| IP Rating | IP65 |
| Mount Type | Pole |
| Bulb Type | LED |
| Series | LR5 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 0.3mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 50mm |
| Terminal type | Cable |
| Component Type | Buzzer |
| Standards/Approvals | CSA |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Silver |
| Light Effect | Steady, Flashing |
| Sounder Type | Buzzer |
| Maximum Sound Level | 85dB |
Key Features
- Integrated buzzer unit designed for Patlite LR5 signal towers.
- Steady and flashing LED light effects for versatile signalling applications.
- Operates at 24V DC, suitable for industrial automation environments.
- IP65 protection ensures resistance to dust and water ingress.
- Omni-directional sound module delivers a maximum sound level of 85 dB.
- Cable terminal interface simplifies installation.
- Robust modular construction supports field configuration.
- CSA-approved for assured safety and conformity.
Product Description
The Patlite LR5-BU is a modular signal tower buzzer unit featuring both steady and flashing LED effects for advanced visual and audible signalling. Engineered to operate with a 24V DC supply, it is ideally suited for automation and control environments where clear status indication and alarm communication are essential.
This unit incorporates an omni-directional buzzer with a maximum sound level of 85 dB, ensuring signals are efficiently heard across busy industrial spaces. The LED bulb provides bright, even illumination, supporting both steady and flashing effects for flexible messaging in applications such as process monitoring, machinery alerting, and safety notifications.
The enclosure is rated IP65, making it highly resistant to water and dust ingress - ideal for harsh operating conditions typically encountered in manufacturing, industrial robotics, packaging, and treatment facilities. The unit's modular "Twist and Lock" system enables quick customization and reconfiguration of LED and sound modules without specialist tools, giving users the ability to adapt their signalling system as requirements evolve.
Cable terminal type simplifies integration with existing control panels and wiring harnesses. The housing's silver finish enhances visibility and the unit's sleek, smooth form factor contributes to durability in challenging environments. With a base diameter of 50 mm and unit height of 53.5 mm, it's easy to incorporate into compact or multi-component signalling assemblies.
Patlite’s commitment to quality is evident in CSA approval and robust design features. Typical use cases include factory automation, process control signaling, public infrastructure, and commercial alarms.
Explore more Automation Signalling solutions in the Electronics & Electricals category and discover the full range of Patlite signal tower modules available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sound level of the LR5-BU buzzer unit is 85 dB, ensuring that signals can be heard clearly in busy environments.
This unit operates on a 24V DC power supply, making it suitable for various industrial automation applications.
The Patlite LR5-BU has an IP65 rating, which means it is resistant to dust and water ingress, suitable for harsh environments.
The unit has a base diameter of 50 mm and a height of 53.5 mm, allowing for easy integration into compact signaling assemblies.
It features both steady and flashing LED light effects, offering flexibility for various signaling applications.
The operating temperature range for this model is from -20°C to a maximum of 50°C, accommodating a variety of environments.
The LR5-BU is designed for pole mounting, which facilitates installation in various settings.
This unit utilizes a cable terminal type, simplifying integration with existing control panels and wiring systems.
The unit is CSA approved, ensuring it meets safety and conformity standards for industrial use.
Yes, it features a modular "Twist and Lock" system that allows for quick customization and reconfiguration of LED and sound modules without special tools.
This buzzer unit is ideal for applications such as factory automation, process control signaling, and safety notifications.
The LR5-BU is manufactured in Indonesia, reflecting its global production capabilities.
