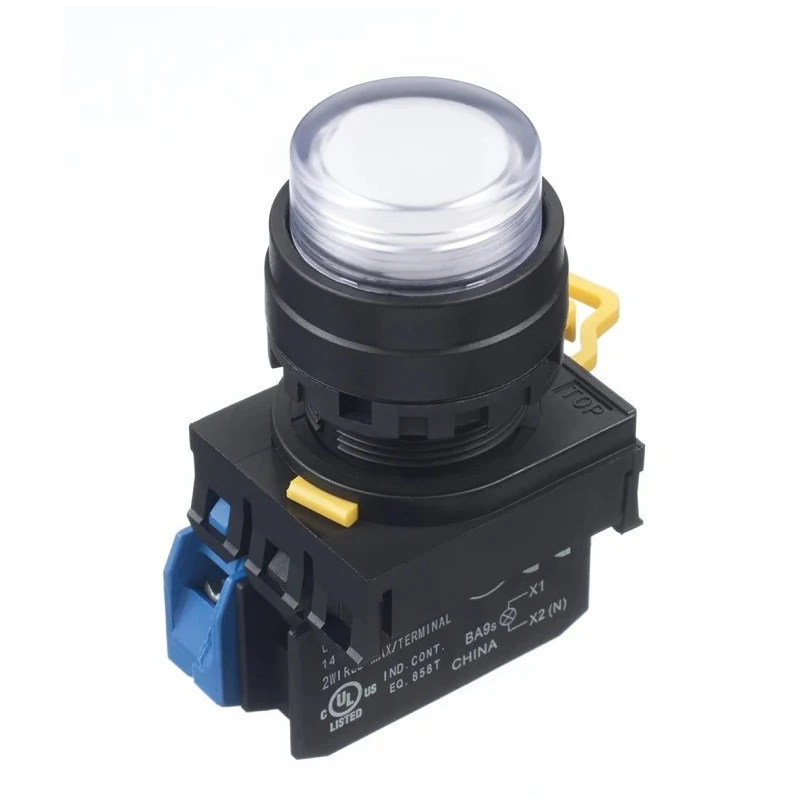

Idec Illuminated Push Button Switch, White, Panel Mount, 22 mm Cutout, SPST, IP65, YW1L-A2E10QM3PW

The Idec YW1L-A2E10QM3PW is an industrial illuminated push button switch designed for reliable operation in demanding environments. This model features a 22 mm cutout diameter, making it compatible with a wide range of standard control panels. Its white round actuator provides clear visual feedback, and the integrated illumination ensures high visibility of switch status in low-light conditions.

With an IP65 rating, the YW1L-A2E10QM3PW is highly resistant to dust and water ingress, making it ideal for use in locations where environmental sealing is paramount. Common installations include industrial automation panels, machinery controls, factory workstations, and commercial building automation.

This switch utilizes a maintained actuation mechanism with a single pole single throw (SPST) contact configuration, allowing circuits to remain latched until manually reset. The device is fitted with finger-safe screw terminals, supporting safe and efficient connection with minimal installation effort. Its separate contact block simplifies installation and replacement, reducing downtime during maintenance.

The button and lens possess a matte finish to reduce surface reflection from ambient lighting, bolstering operator clarity and minimizing glare. Constructed primarily from durable plastic with a robust design, the switch ensures longevity even under intensive operating cycles.

The Idec YW Series is renowned for compact and lightweight construction yet delivers dependable mechanical and electrical performance. The switch operates reliably across a temperature range of -20°C to 55°C, supporting deployment in varied industrial and commercial climate conditions.

Application areas include manufacturing lines, process control systems, HVAC panels, laboratory equipment controls, conveyor systems, and general-purpose control panels that require both tactile and illuminated feedback. The round actuator style and maintained contact mechanism make it suitable for function selection, power cycling, status indication, and emergency stop applications when fitted in appropriately certified panels.

Choose Idec Push Button Switches for a balance between reliability, flexibility, and ease of integration in modern industrial environments. Explore more Idec switch solutions and related push button products within the EnvMart electronics and automation categories to optimize your control panel designs.
