KEMET Multilayer Ceramic Capacitor C0603C512J5GACTU, 5.1 nF, 50V DC, ±5%, C0G, Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

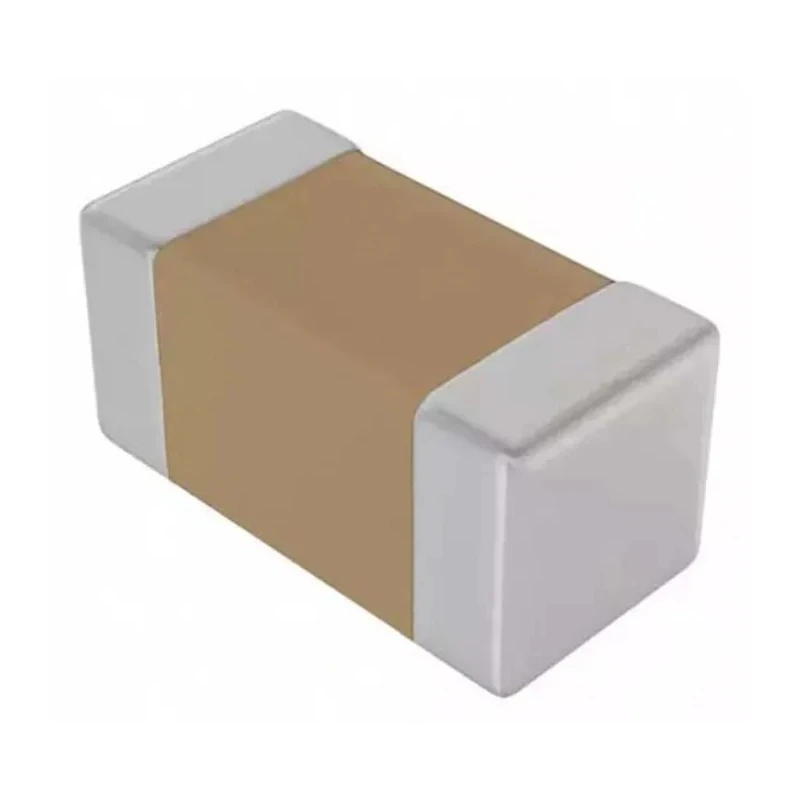

KEMET Multilayer Ceramic Capacitor C0603C512J5GACTU, 5.1 nF, 50V DC, ±5%, C0G, Surface Mount

Name: KEMET Multilayer Ceramic Capacitor C0603C512J5GACTU, 5.1 nF, 50V DC, ±5%, C0G, Surface Mount
Brand: KEMET
SKU: 80829
Price: 0.08 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Mexico
Voltage	50V dc
Brand	KEMET
Height	0.8mm
Length	1.6mm
Model	C0603C512J5GACTU
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Construction	Stacked
Series	C
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	5.1nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Suppression Class	Class II

Key Features

Capacitance of 5.1 nF with a tolerance of ±5% for precise electronic applications.
Supports 50V DC rated voltage suitable for various circuit configurations.
Stable C0G (Class I) dielectric offers minimal capacitance variation with temperature.
0603 surface-mount package is ideal for compact PCB layouts.
Stacked construction ensures reliability and low ESR/ESL values.
Tape & Reel packaging compatible with automated assembly processes.
Wide operating temperature range from -55°C to 125°C for demanding environments.
Solder termination type for robust PCB attachment.

Product Description

The KEMET C0603C512J5GACTU is a high-quality multilayer ceramic capacitor designed for surface mounting on printed circuit boards. Featuring a capacitance value of 5.1 nF and a rated operating voltage of 50V DC, this capacitor is engineered for precision and reliability in demanding electronic applications.

Utilising a C0G (Class I) dielectric, the C0603C512J5GACTU exhibits a stable capacitance and minimal variation across a broad operating temperature range of -55°C to 125°C. This makes it especially suitable for resonant circuit applications and environments where consistent performance is required.

The compact 0603 package allows placement in high-density electronic designs. Its stacked construction ensures low ESR (Equivalent Series Resistance) and low ESL (Equivalent Series Inductance), offering enhanced ripple current capability and reduced piezoelectric noise.

Termination is achieved via soldering, providing secure and robust PCB attachment. The component is supplied in tape and reel packaging, facilitating efficient handling and automated surface-mount assembly. This ensures reliability during mass production and simplifies inventory management.

With compliance to standards such as EIA 481, EIA 556, EIA 624, IPC-7351, and J-STD-020, this capacitor meets the requirements for professional electronics manufacturing. It is fully lead (Pb)-free, RoHS, and REACH compliant, supporting environmentally friendly procurement.

Main industrial uses include applications in telecommunications, automotive electronics (non-automotive standard), consumer electronics, industrial control systems, medical devices, and laboratory instrumentation where high stability and reliability are required.

The KEMET C0603C512J5GACTU Multilayer Ceramic Capacitor is an excellent choice for engineers seeking precision passive components for modern electronics. Explore more industrial capacitors and trusted brands in the Multilayer Ceramic Capacitor category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The KEMET C0603C512J5GACTU has a capacitance value of 5.1 nF with a tolerance of ±5%.

This capacitor supports a rated voltage of 50V DC, making it suitable for various circuit configurations.

It utilizes a C0G (Class I) dielectric, which provides minimal capacitance variation with temperature.

The dimensions of the 0603 package are 1.6mm in length, 0.8mm in width, and 0.8mm in height.

The operating temperature range is from -55°C to 125°C, suitable for demanding environments.

It features a solder termination type, providing a secure and robust attachment to printed circuit boards.

The KEMET C0603C512J5GACTU is supplied in tape and reel packaging, which is compatible with automated assembly processes.

It has a stacked construction that ensures low Equivalent Series Resistance (ESR) and low Equivalent Series Inductance (ESL).

This model complies with standards such as EIA 481, EIA 556, EIA 624, IPC-7351, and J-STD-020.

It is primarily used in telecommunications, automotive electronics, consumer electronics, industrial control systems, medical devices, and laboratory instrumentation.

The suppression class for this model is Class II, indicating its suitability for various electronic applications.

The KEMET C0603C512J5GACTU is manufactured in Mexico.
