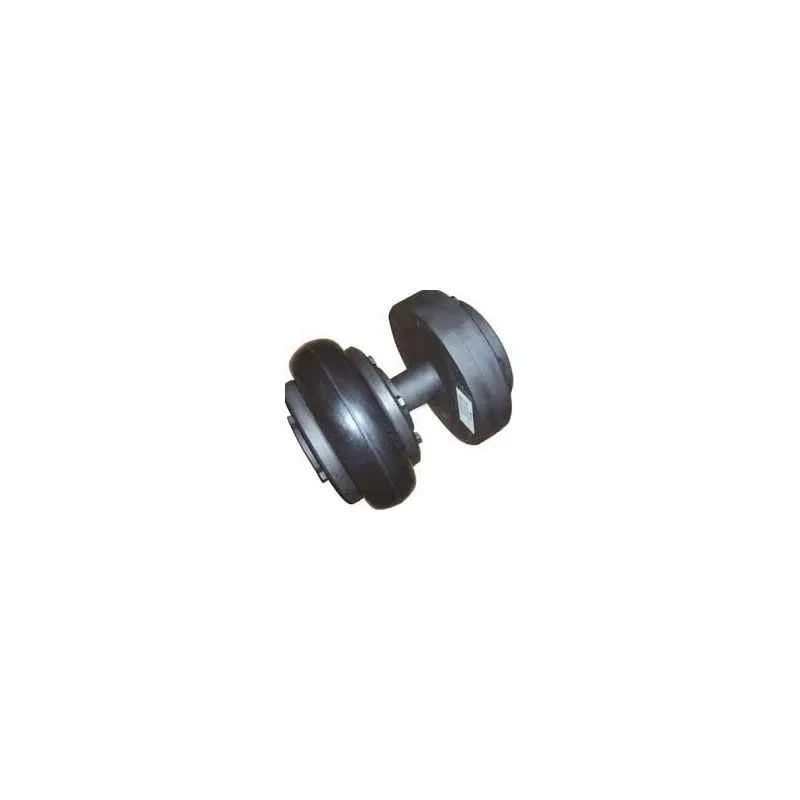

Fenner Fenaflex Tyre Coupling with B Flange Pilot Bore, F100 Model

Fenner Fenaflex Tyre Coupling with B Flange Pilot Bore, F100, is designed to deliver durability, flexibility, and a high degree of misalignment tolerance for power transmission systems. Built with ease of installation in mind, this coupling allows the tyre element to be replaced quickly without removing connected machinery, minimizing downtime.

This coupling is engineered to handle significant misalignment: 4 degrees angular, up to 6 mm parallel, and 8 mm axial, making it ideal for installations where perfect alignment is challenging. The internal load carrying cords are wound in both directions, ensuring consistent performance on reversing drives. The tyre element itself can be selected in standard or FRAS (Fire Resistant Anti Static) construction to suit specific operational and safety requirements.

The Fenaflex F100 coupling features a pilot bore B flange and is fitted with six pins, delivering a secure connection and efficient torque transmission. Notably, this product is ATEX approved, enabling it to be used in hazardous areas where explosive atmospheres may be present. Its lubrication-free operation means there is no need for routine greasing, while the capability for easy visual inspection simplifies routine maintenance and helps enhance reliability.

Applications for the Fenaflex Tyre Coupling include power transmission in industrial, manufacturing, material handling, processing, and HVAC systems. It is suitable for a wide range of reversible and high-vibration applications, thanks to its robust construction and flexible misalignment tolerance.

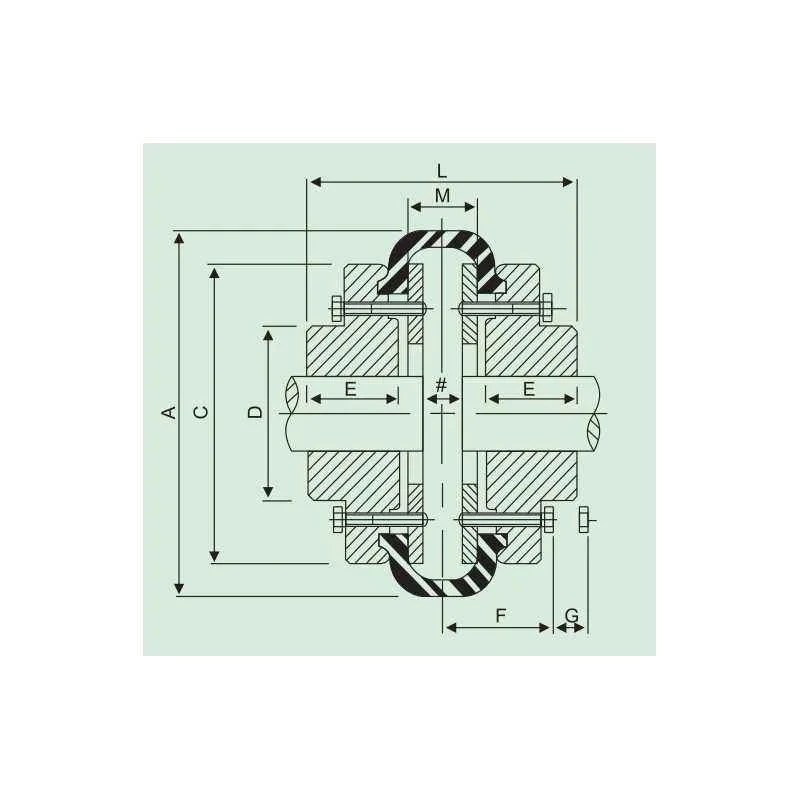

With critical dimensions including a maximum bore of 85 mm, E dimension 60 mm, D dimension 124 mm, M dimension 58 mm, and F dimension 61.5 mm, as well as a total of 6 pins and 1 piece per pack, this coupling is constructed for long-term performance and efficient installation.
