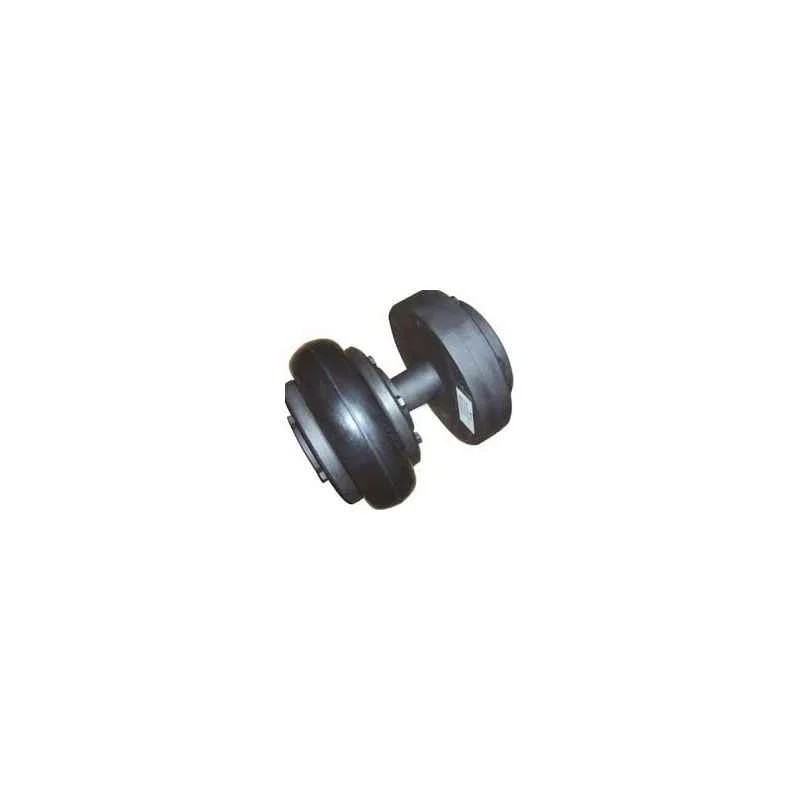

Fenner Fenaflex Tyre Coupling with F Flange and Taper Lock, 8 Pin, Max Bore 90 mm, F140

The Fenner Fenaflex Tyre Coupling with F Flange and Taper Lock, F140, is a premium solution for connecting rotating machinery in industrial environments. This coupling is engineered to transmit torque efficiently while compensating for possible misalignments between shafts, contributing to long-lasting reliable operation in demanding settings.

With a maximum bore of 90 mm and equipped with eight robust pins, the F140 coupling simplifies installation and maintenance. Its design allows the tyre element to be replaced without disturbing either the motor or the machine, reducing downtime and increasing operational efficiency. Large misalignment capacities are a standout feature, with 4 degrees angular, up to 6 mm parallel, and 8 mm axial movement tolerated. Such flexibility is crucial in installations where perfect alignment cannot be guaranteed or in environments subject to vibration or settling.

Fenaflex couplings are manufactured with internal load-carrying cords wound in both directions. This design minimizes stress concentrations and ensures reliable drive transference, even during directional reversals. The tyre elements are available in both standard and FRAS (Fire Resistant Anti-Static) construction, extending the applicability of the coupling to a wide range of environments, including those requiring ATEX compliance for hazardous areas.

Operational convenience is further enhanced by a lubrication-free build. The coupling does not require routine greasing or oiling, and the robust rubber tyre can be visually inspected in-situ for maintenance assessment. These characteristics reduce maintenance requirements, decreasing total cost of ownership and risk of contamination for sensitive manufacturing processes.

Common applications for the Fenner Fenaflex F140 Tyre Coupling include power transmission in conveyor systems, pumps, compressors, mixers, material handling equipment, and various industrial drive lines found in manufacturing, process plants, chemical industries, and utility facilities.

This coupling is supplied with an F Flange and a Taper Lock bush, providing a secure, precise fit, and is specifically designed to accommodate harsh industrial environments. Its compact footprint and robust construction ensure long service life and consistent performance.

Industrial users seeking a reliable, quick-maintenance coupling solution will find the Fenner F140 ideal for integrating into their mechanical shaft assembly. For a comprehensive range of mechanical couplings and power transmission solutions, explore Fenner products in the Mechanical Coupling category on EnvMart.
