Fenner Essex Jaw Standard Coupling Pilot Bore Size F095, Power 0.21 kW per 100 rpm, Bore 15–28 mm

Free Delivery in India | Lowest Global Shipping Charges

Fenner Essex Jaw Standard Coupling Pilot Bore Size F095, Power 0.21 kW per 100 rpm, Bore 15 - 28 mm

Name: Fenner Essex Jaw Standard Coupling Pilot Bore Size F095, Power 0.21 kW per 100 rpm, Bore 15 - 28 mm
Brand: Fenner
SKU: 76064
Price: 15.71 USD
Availability: InStock



Category Mechanical Coupling Brand Fenner Condition New

Specifications

Country of Origin	India
Power Consumption	0.21 kW (At 100 rpm)
Size	F095
Brand	Fenner
Power	0.21 kW (Per 100 rpm)
Items in Pack	1 Piece
Qty Per Pack	1 Piece
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product

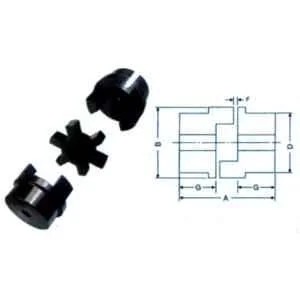

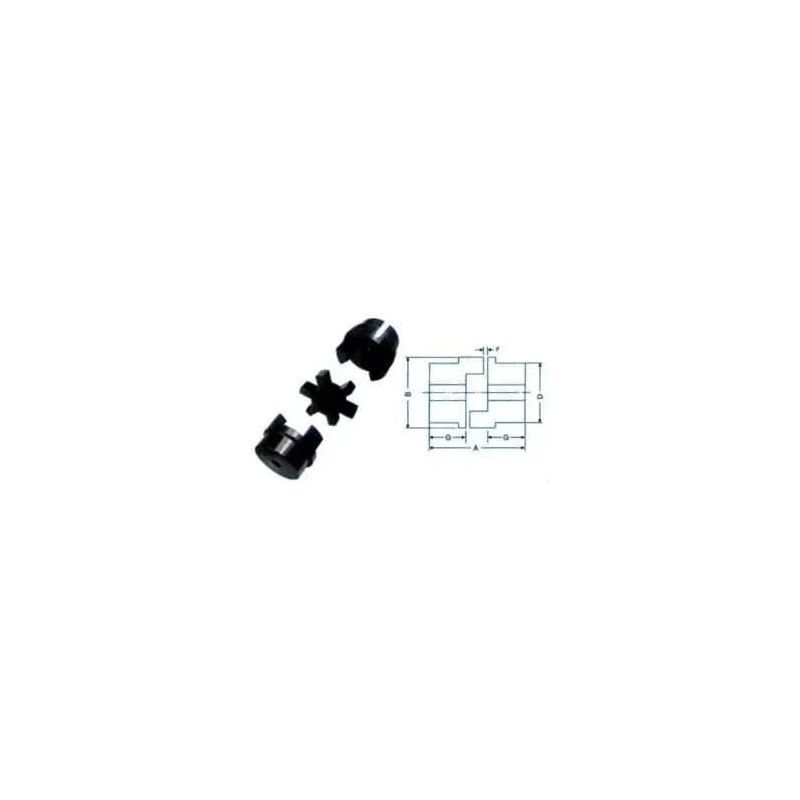

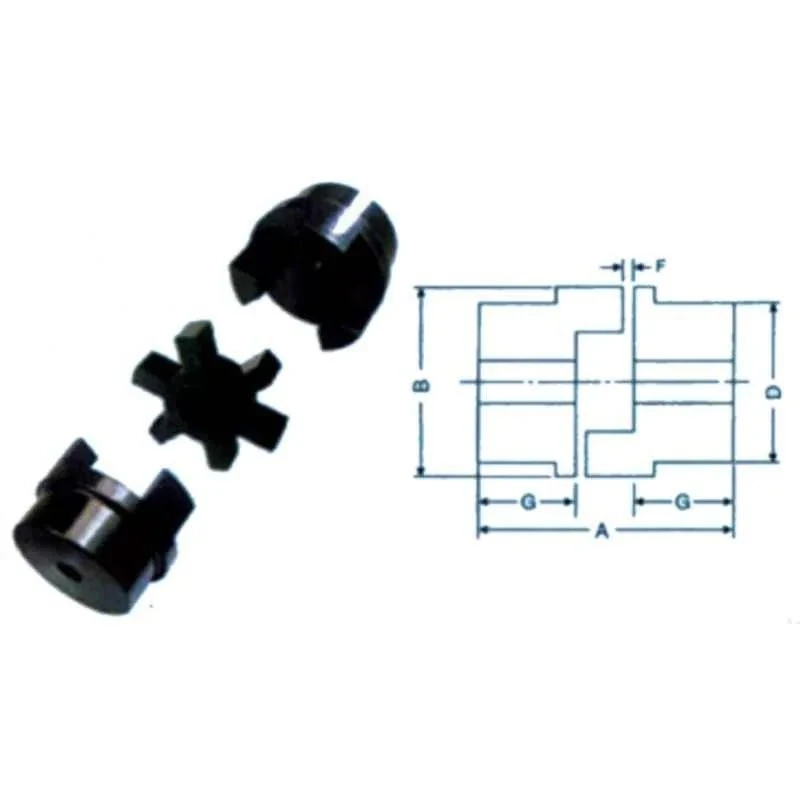

Bore	Max Bore: 28 mm Min Bore: 15 mm
A (mm)	63 mm
B (mm)	54 mm
D (mm)	49 mm
Max Bore	28 mm
Min Bore	15 mm
F (mm)	2 mm
G (mm)	25 mm
Min Order Qty	2 Pack
Bore Max Bore	28 mm Min Bore: 15 mm

Key Features

Accommodates angular, parallel, and axial misalignments for versatile coupling requirements.
Robust power transmission at 0.21 kW per 100 rpm ensures efficiency and reliability.
Supports a pilot bore range from 15 mm to 28 mm for varied shaft sizes.
Flexible insert absorbs shock loads and damps vibrations, increasing machine longevity.
Resistant to moisture, grease, oils, and non-aromatic/non-ketone solvents.
Performs reliably in temperatures from -40 to 100°C under demanding conditions.
Simple Construction - Quick easy installation - No special tools required.
Flexible insert caters to angular, parallel and axial misalignment.

Product Description

The Fenner Essex Jaw Standard Coupling, is engineered for precise and robust shaft-to-shaft connection in a wide variety of power transmission environments. Featuring a pilot bore size F095 and supporting bore diameters between 15 mm and 28 mm, this coupling is ideal for integrating with various machine shafts. It is especially suitable for mechanical and industrial setups requiring efficient transmission of power at 0.21 kW per 100 rpm.

This standard coupling is designed with a simple yet sturdy construction that allows for quick installation without the need for special tools. The flexible insert is an integral component, enabling the accommodation of angular, parallel, and axial misalignments while simultaneously absorbing shock loads and damping small amplitude vibrations during operation. This design significantly reduces wear and mitigates vibration-related failures over time.

The robust body construction coupled with chemical resistance properties makes the Fenner Jaw Coupling an excellent choice for environments where moisture, grease, oils, and a range of non-aromatic and non-ketone industrial solvents are present. The coupling maintains its effectiveness and dimensional stability within a broad operating temperature range from -40°C up to 100°C. Its compact profile - with core dimensions of 63 mm (A), 54 mm (B), and 49 mm (D) - ensures that it can be fitted easily into tight spaces while providing reliable performance.

Each pack contains a single piece coupling, and the product is recommended for a range of applications including factory equipment, conveyor systems, pumps, compressors, and general industrial machinery where precision alignment and torque transmission are critical. Installation is straightforward, reducing downtime and improving overall maintenance outcomes.

Fenner is recognized for its durable and high-performance power transmission solutions, and the Essex Jaw Standard Coupling continues this tradition. With its advanced capacity for absorbing vibration and misalignment, and a rugged form factor, industries such as manufacturing, process automation, and heavy equipment operations can depend on its consistent performance and long service life.

Explore more options and technical solutions in the Mechanical Coupling category from Fenner and other leading brands on EnvMart.
