Hanna pH, Free and Total Chlorine, Total Hardness, and Iron LR Portable Photometer-Kit - HI97745C
Specifications
| Country of Origin | India |
|---|---|
| Display | 128 x 64 pixel B/W LCD with backlight |
| Dimensions | 142.5 x 102.5 x 50.5 mm |
| Light Source | LED with 525 nm bandpass filter |
| pH Range | 6.5 to 8.5 pH |
| pH Resolution | 0.1 pH |
| pH Accuracy | ±0.1 pH at 25°C |
| Environment | 0 to 50°C, 0 to 100% RH (IP67, non-condensing) |
| Battery Type/Life | 1.5 V AA Alkaline (3 pcs.) / More than 800 measurements (without backlight) |
| Automatic Shut-Off | After 15 min of inactivity (30 min before a READ measurement) |
| Logging Memory | 50 readings |
| GLP | Yes |
| Model | HI97745C |
| Bandpass Filter Bandwidth | 8 nm |
| Bandpass Filter Wavelength Accuracy | ±1.0 nm |
| Cuvette Type | Round, 24.6 mm diameter (22 mm inside) |
| Free Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
| Free Chlorine Resolution | 0.01 mg/L |
| Free Chlorine Accuracy | ±0.03 mg/L ±3% of reading at 25°C |
| Weight | 0.38 Kg |
| Parameters Measured | pH, Free Chlorine, Total Chlorine, Calcium Hardness, Magnesium Hardness, Total Hardness, Iron (Low Range) |
| Light Detector | Silicon photocell |
| Product Condition | New |
| MPN | HI97745C |
| Hardness Resolution | 0.01 mg/L |
| Hardness, Total Range | 0.00 to 4.70 mg/L (as CaCO3) |
| Total Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
| Total Chlorine Accuracy | ±0.03 mg/L ±3% of reading at 25°C |
| Total Chlorine Resolution | 0.01 mg/L |
| Hardness, Calcium Range | 0.00 to 2.70 mg/L (as CaCO3) |
| Hardness, Magnesium Range | 0.00 to 2.00 mg/L (as CaCO3) |
| Hardness Accuracy | ±0.11 mg/L ±5% of reading at 25°C |
| Iron LR Range | 0.00 to 1.60 mg/L (as Fe) |
| Iron LR Accuracy | ±0.01 mg/L ±8% of reading at 25°C |
| Iron LR Resolution | 0.01 mg/L |
Key Features
HI97745C Portable Photometer Kit for the measurement of pH, free and total chlorine, total hardness, and iron in water.
- Advanced portable photometer designed for field and laboratory water analysis.
- Measures pH, free chlorine, total chlorine, calcium hardness, magnesium hardness, total hardness, and iron (low range).
- Equipped with reference detector and narrow band interference filters for fast, accurate measurements.

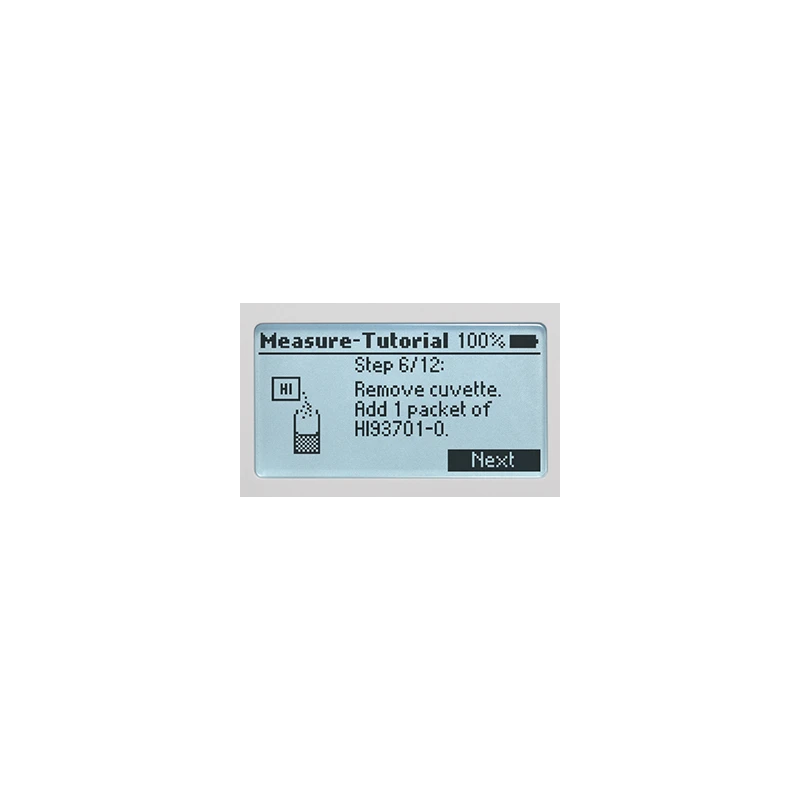

- Tutorial mode provides step-by-step instructions for each measurement.
- Automatic shut-off after 15 minutes of inactivity for battery conservation.
- High-resolution 128 x 64 pixel LCD with backlight display for clear readout in all conditions.
- Robust IP67 housing for use in harsh industrial and field environments.
- Stores up to 50 readings for process traceability and GLP compliance.
- Supplied with dedicated round cuvettes (24.6 mm diameter) for sample measurements.
- Operates on 1.5 V AA alkaline batteries, capable of more than 800 measurements per set.
Product Description
The HI97745C Portable Photometer Kit enables rapid, reliable measurements of key water quality parameters including pH, free and total chlorine, total hardness (as CaCO3), and iron (low range). This photometer is engineered for demanding field and industrial water analysis, providing laboratory-grade accuracy in portable form.
- Capable of measuring pH (6.5 to 8.5 pH), free and total chlorine (0.00 to 5.00 mg/L as Cl2), calcium, magnesium, and total hardness, and iron (0.00 to 1.60 mg/L as Fe) utilizing colorimetric methods adapted from Standard Methods, 23rd Edition, and TPTZ for iron.
- Provides high measurement accuracy: pH ±0.1 pH, free/total chlorine ±0.03 mg/L or ±3%, hardness ±0.11 mg/L or ±5%, iron ±0.01 mg/L or ±8% at 25°C.
- Environmental protection rated IP67, with working temperature from 0 to 50°C and 0–100% relative humidity.

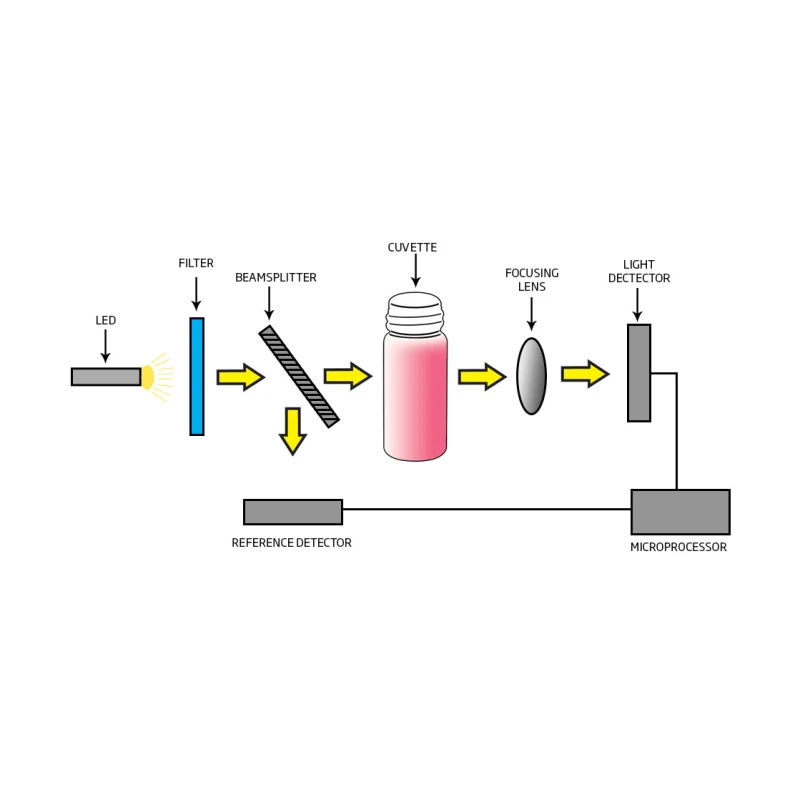

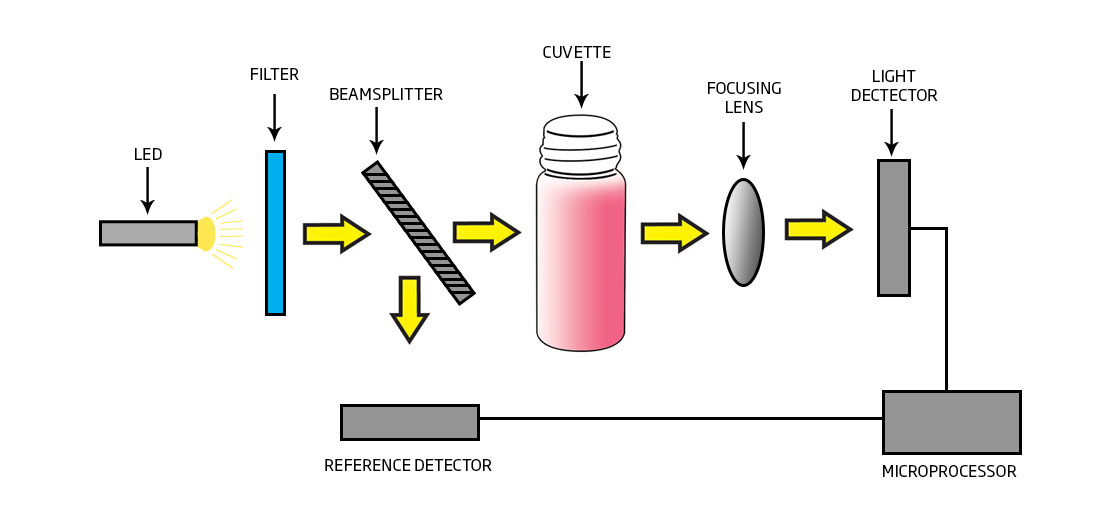

- Features a reference detector, narrow band (8 nm) 525 nm LED light source, and silicon photocell detector for stable, repeatable photometry.
- Tutorial mode ensures straightforward operation for personnel of all experience levels.

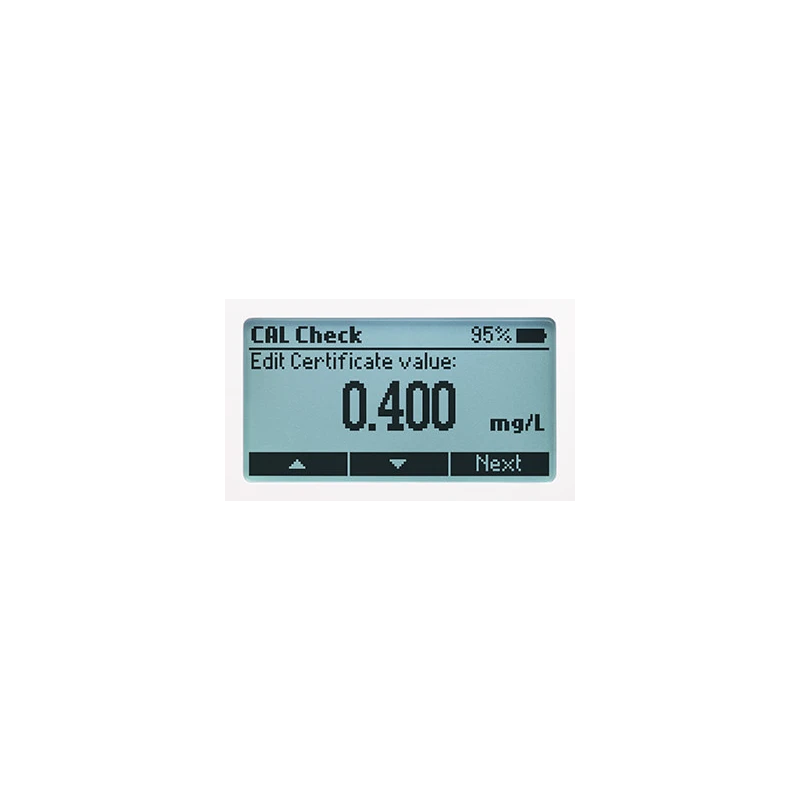

- GLP compliant with full calibration and process documentation. CAL Check function allows on-site performance verification.
- Memory storage up to 50 readings and intuitive interface support efficient data management.
- Runs on 3 × 1.5 V AA alkaline batteries for extended field use or over 800 measurements without backlight.
- Measures with supplied round cuvettes (24.6 mm diameter, 22 mm internal).
This portable photometer kit is ideal for applications in industrial water treatment, environmental monitoring, water utilities, laboratory analysis, and educational use, supporting rigorous quality control and regulation compliance. For more similar solutions, browse EnvMart's laboratory photometers and industrial water testing categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HI97745C photometer measures pH, free and total chlorine, total hardness (as CaCO3), and low-range iron.
The photometer provides high measurement accuracy: pH ±0.1, free/total chlorine ±0.03 mg/L or ±3%, hardness ±0.11 mg/L or ±5%, and iron ±0.01 mg/L or ±8% at 25°C.
Yes, it features a robust IP67 housing, making it suitable for harsh industrial and field environments.
The tutorial mode provides step-by-step instructions for each measurement, ensuring ease of use for personnel of all experience levels.
The photometer operates on 1.5 V AA alkaline batteries and can perform over 800 measurements per set without backlight.
Yes, the HI97745C can store up to 50 readings for process traceability and GLP compliance.
The photometer uses dedicated round cuvettes with a diameter of 24.6 mm for sample measurements.
The photometer operates effectively within a temperature range of 0 to 50°C and 0–100% relative humidity.
The CAL Check function allows for on-site performance verification, ensuring reliable measurements.
This photometer is ideal for applications in industrial water treatment, environmental monitoring, water utilities, laboratory analysis, and educational use.
