Manganese LR Portable Photometer Kit HI97748C, 0-300 µg/L, IP67, LCD | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

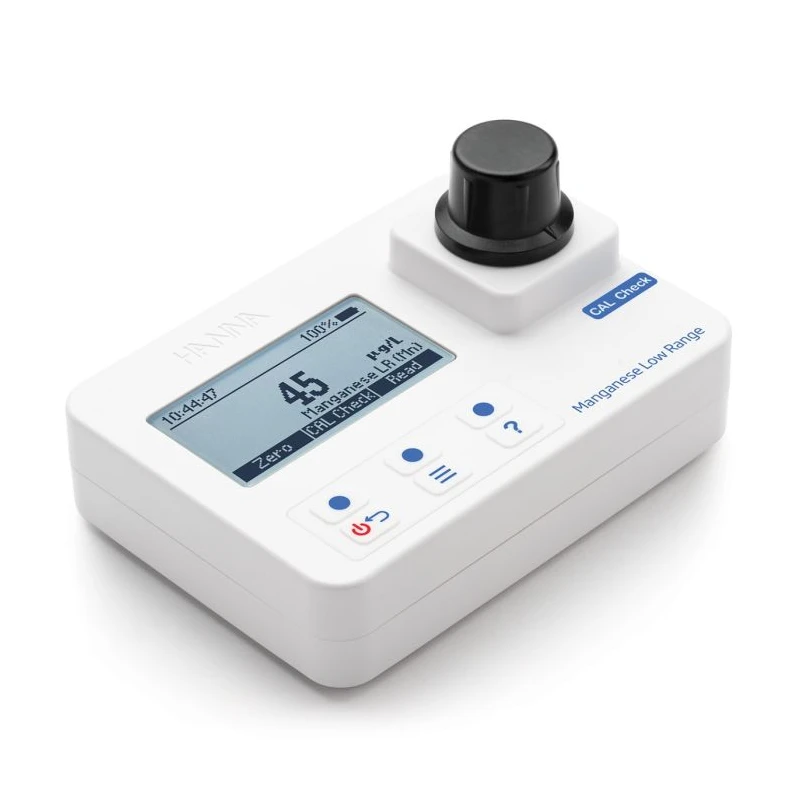

Hanna Manganese LR Portable Photometer-Kit - HI97748C

Name: Hanna Manganese LR Portable Photometer-Kit - HI97748C
Brand: Hanna
SKU: 72530
Price: 606.51 USD
Availability: InStock



Category Portable Photometers Brand Hanna

Specifications

Resolution	1 µg/L
Accuracy	±10 µg/L ±3% of reading at 25°C
Measurement Range	0 to 300 µg/L (as Mn)
Display	128 x 64 pixel B/W LCD with backlight
Light Source	LED with 575 nm bandpass filter
Automatic Shut-Off	After 15 minutes inactivity (30 before a reading)
Logging Memory	50 readings
Model	HI97748C
Cuvette Type	round 24.6 mm diameter (22 mm inside)
Light Detector	Silicon photocell
GLP Compliance	Yes

Key Features

HI97748C Manganese LR Portable Photometer Kit for low-range manganese analysis in water samples, offering high accuracy and user-friendly operation.

Measures manganese concentrations from 0 to 300 µg/L with high precision.

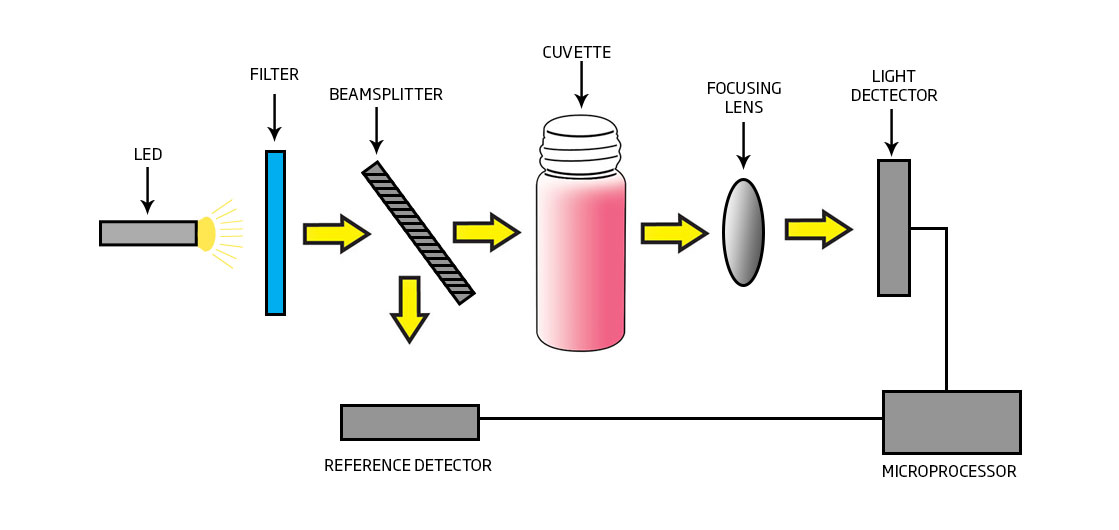

Features an advanced optical system for fast and repeatable measurements.
Equipped with a reference detector and narrow band interference filters.

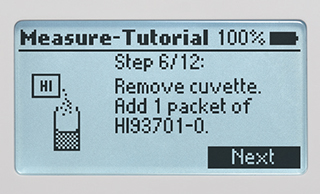

Tutorial mode provides step-by-step operating instructions.

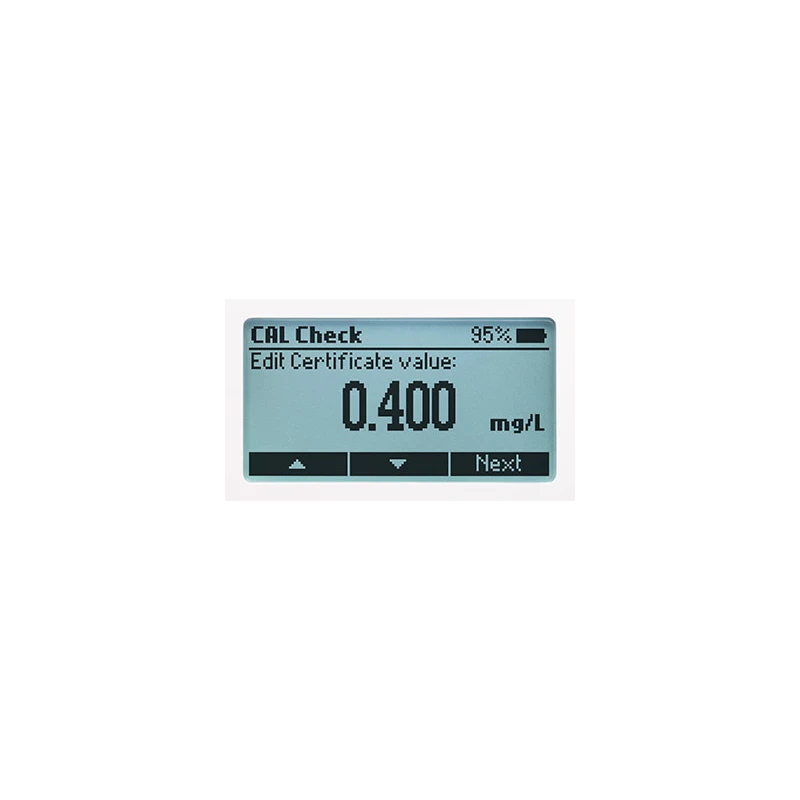

CAL Check function enables easy meter performance verification.
Automatic shut-off after 15 minutes (30 minutes before a READ measurement) to conserve battery.
Backlit 128 x 64 pixel LCD ensures clear data visualization.
IP67 protection rating for reliable use in field environments.
Capable of storing up to 50 dataset readings in logging memory.
Battery powered (3 x 1.5V AA) for up to 800 measurements per set.

Product Description

The HI97748C Manganese LR Portable Photometer Kit is an advanced instrument designed for measuring low-range manganese concentrations in water samples, offering a robust solution for laboratory, industrial water treatment, pharmaceutical, fertilizer manufacturing, and environmental monitoring use cases. The photometer operates in the 0–300 µg/L (as Mn) range with an accuracy of ±10 µg/L ±3% of reading at 25°C, utilizing an innovative optical system featuring a reference detector and narrow band interference filters. This design assures fast, repeatable, and reliable results without any warm-up time, making it suitable for rapid onsite or laboratory analysis.

The kit includes an intuitive tutorial mode that walks users through operation steps, and a CAL Check function to ensure ongoing instrument performance. Automatic shut-off and power-efficient design provide more than 800 measurements per battery set. The instrument's IP67 environmental rating and backlit 128 x 64 pixel LCD display enable stable operation and clear readings even in challenging field conditions. Logging memory supports up to 50 readings, and the round cuvette system guarantees accurate sample processing.

Manganese measurement range: 0 to 300 µg/L, resolution: 1 µg/L.
Advanced LED light source with 575 nm bandpass filter, silicon photocell light detector.
Operates from 0 to 50°C (32 to 122°F), 0–100% RH (non-condensing).
Cuvette type: round, 24.6 mm diameter (22 mm inside).
Tutorial mode and GLP-compliance for regulated lab requirements.
Adaptation of the PAN Method for manganese analysis, suited for environmental, municipal, and process water labs.
Dimensions: 142.5 x 102.5 x 50.5 mm; Weight: 380 g.
Ideal for quality control in steel manufacturing, agricultural and drinking water testing, and environmental research.

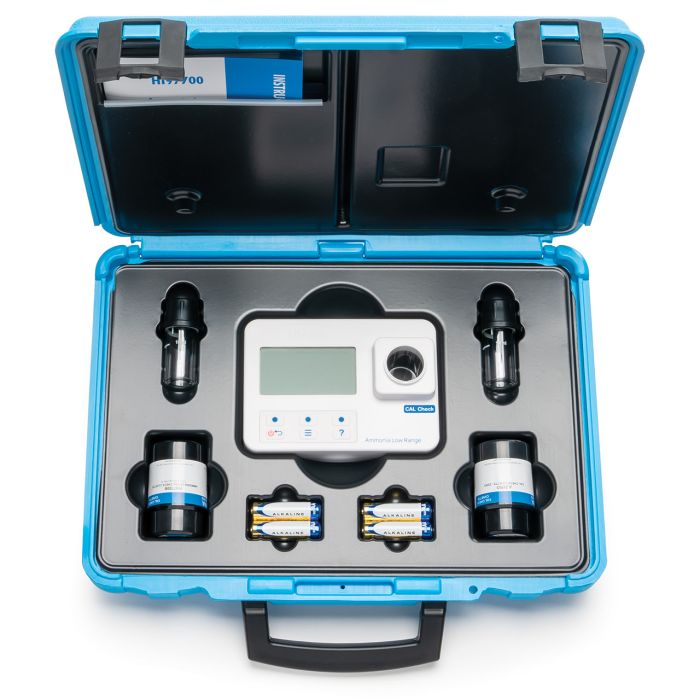

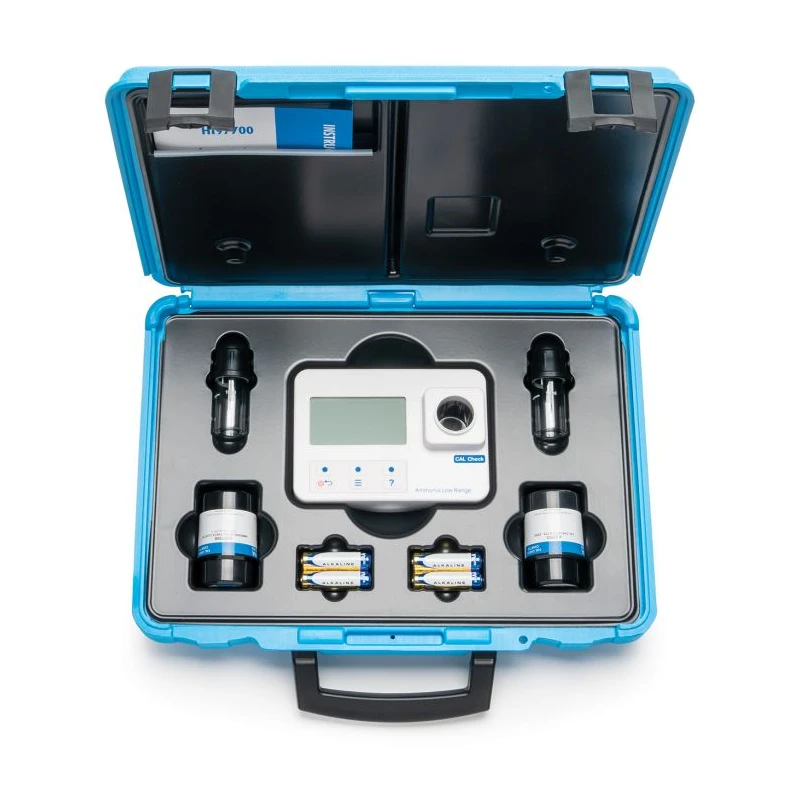

Supplied as a comprehensive kit for ready deployment in laboratory and field monitoring scenarios. Explore more laboratory photometers, water testing instruments, and analytical equipment on EnvMart.
