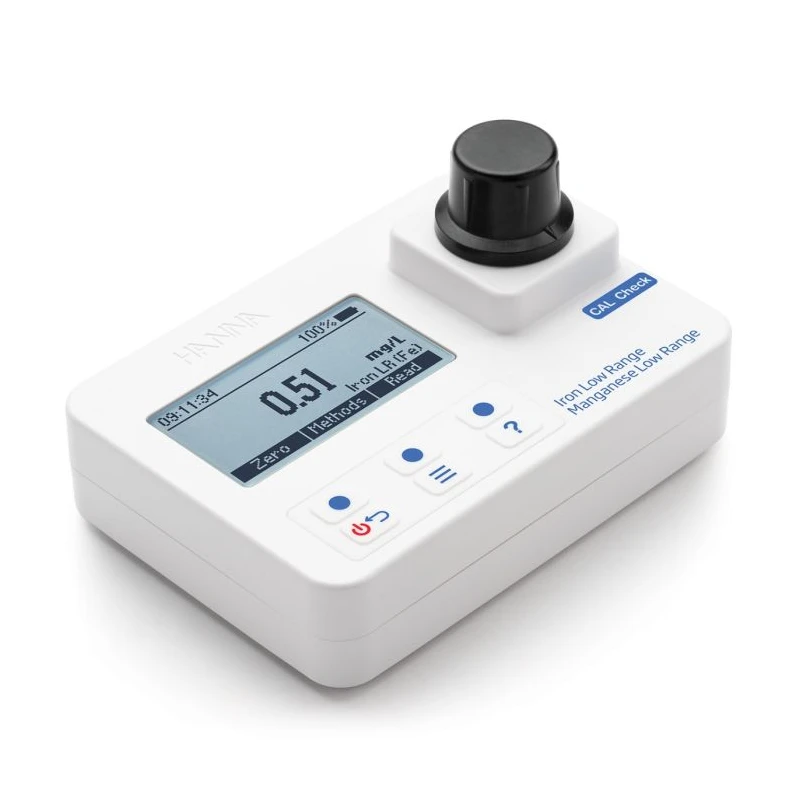

HI97742 Portable Photometer for Iron and Manganese LR Measurement | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna Iron and Manganese LR Portable Photometer-Meter Only

Name: Hanna Iron and Manganese LR Portable Photometer-Meter Only
Brand: Hanna
SKU: 72451
Price: 393.93 USD
Availability: InStock



Category Portable Photometers Brand Hanna

Specifications

Display	128 x 64 pixel B/W LCD with backlight
Power Supply	3 x 1.5 V AA Alkaline
Automatic Shut-Off	After 15 minutes of inactivity, 30 minutes in READ mode
GLP	Yes
Model	HI97742
Cuvette Type	round 24.6 mm diameter (22 mm inside)
Iron Range	0.00 to 1.60 mg/L
Iron Resolution	0.01 mg/L
Iron Accuracy	±0.01 mg/L ±8% of reading at 25°C
Iron Method	Adaptation of the TPTZ Method
Measurement Parameters	Iron (Fe), Manganese (Mn)
Data Logging Memory	50 readings
Photometer Light Detector	Silicon photocell
Photometer Light Source	LED with 575 nm bandpass filter
Manganese Range	0 to 300 µg/L
Manganese Resolution	1 µg/L
Manganese Accuracy	±10 µg/L ±3% of reading at 25°C
Manganese Method	Adaptation of the 1-(2-Pyridylazo)-2-Naphthol PAN Method

Key Features

HI97742 Portable Photometer for low range iron and manganese measurement in water, offering high accuracy and repeatable results.

Measures low levels of iron (0.00–1.60 mg/L) and manganese (0–300 µg/L).

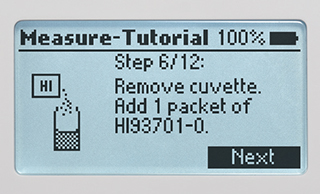

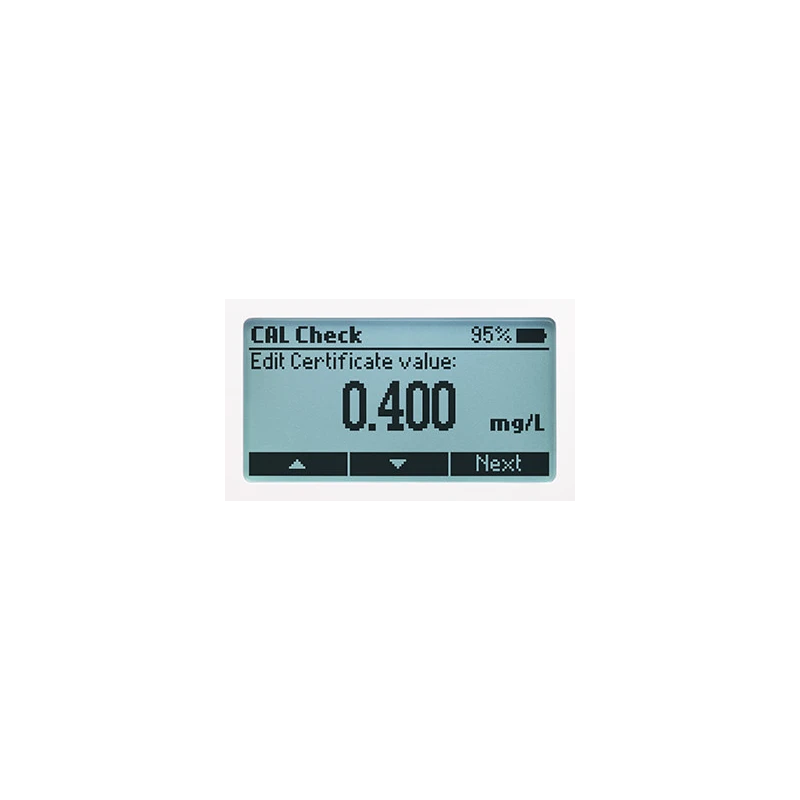

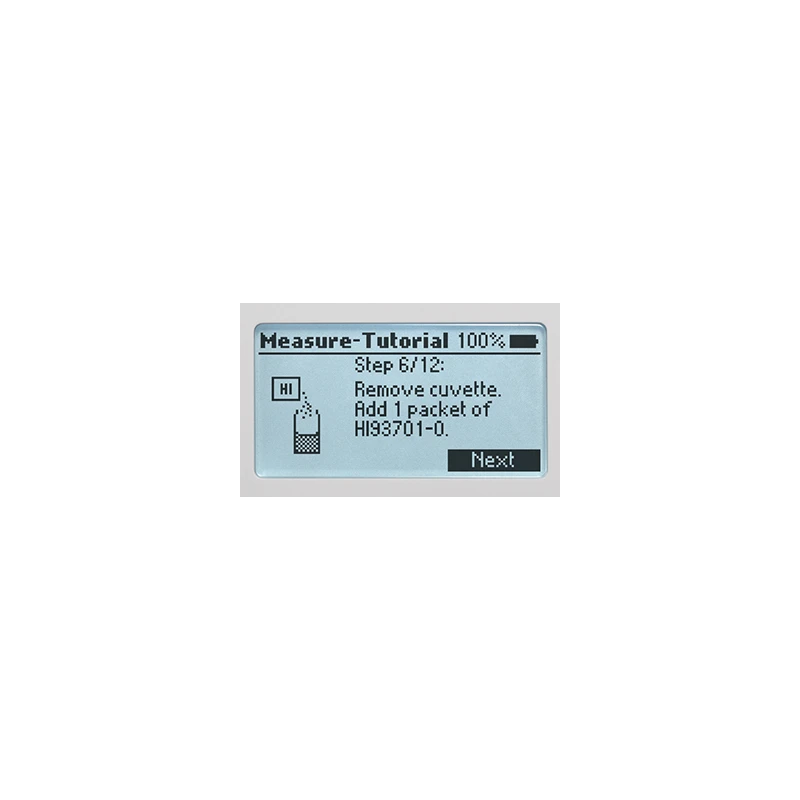

Features automatic shut-off and calibration check with tutorial mode for step-by-step guidance.

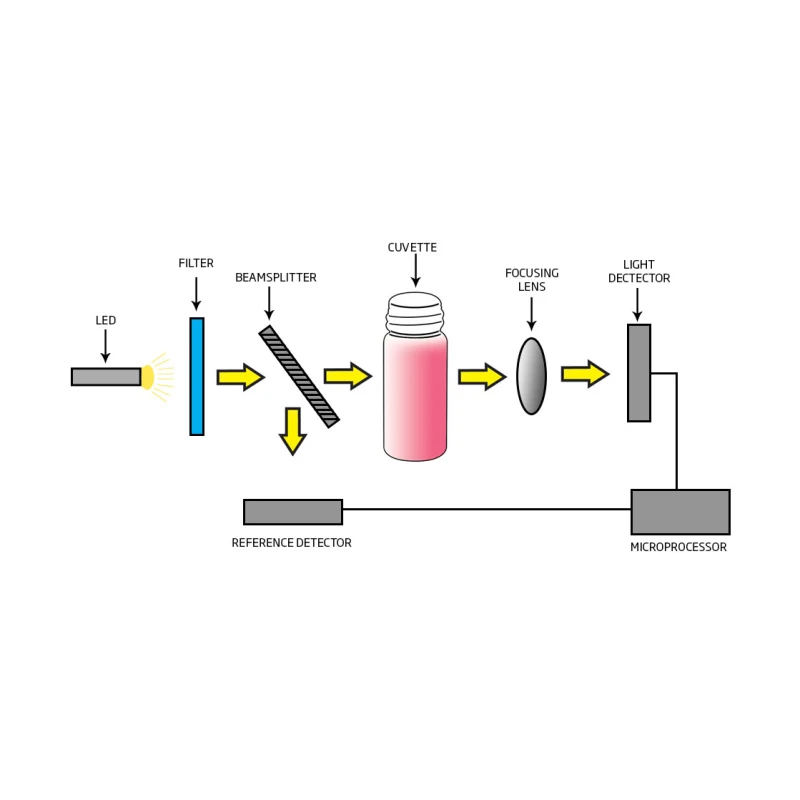

Equipped with reference detector, narrow band interference filters, and silicon photocell for fast, stable readings.
Large, backlit 128 x 64 pixel display for easy reading in laboratory and field environments.
Offers data logging for up to 50 readings with advanced GLP compliance.
IP67 waterproof rating for rugged laboratory, industrial, or field use.
Uses round 24.6 mm cuvettes; includes environment compensation from 0 to 50°C, 0–100% RH.
Operates on 3 x 1.5V AA alkaline batteries; supports up to 800 measurements.

Product Description

The HI97742 Portable Photometer is engineered for accurate determination of low range iron and manganese concentrations in water by utilizing advanced optical technology, including reference detector and narrow band interference filters. This meter assures precise, repeatable results with minimal warm-up time and is suitable for use in laboratory, industrial, water treatment, and environmental monitoring applications.

Measures iron from 0.00 to 1.60 mg/L (as Fe) and manganese from 0 to 300 µg/L (as Mn).
Iron method: Adaptation of the TPTZ method; manganese method: Adaptation of PAN method.
Resolution: 0.01 mg/L for iron, 1 µg/L for manganese; accuracy ±0.01 mg/L ±8% (Fe), ±10 µg/L ±3% (Mn).
High-contrast, backlit display assists clarity in any lighting condition.
Automatic shut-off after 15 minutes (30 minutes in READ mode) preserves battery life.
Robust IP67 waterproof housing ensures reliability in all field and laboratory environments.
Data logging stores up to 50 measurements for later retrieval and GLP review.
Operates from 0°C to 50°C and 0–100% RH conditions.
Unit dimensions: 142.5 x 102.5 x 50.5 mm; weight: 380 g.
Package contains meter only; cuvettes, reagents, and accessories sold separately.

Ideal for water quality analysis in utilities, municipal labs, wastewater plants, industrial process, and environmental field sites. Explore more portable photometers and analytical instruments in our "Lab Equipment & Instruments" section on EnvMart.
