Hanna pH, Free and Total Chlorine, Total Hardness, and Iron LR Portable Photometer-Meter Only - HI97745
Specifications
| Country of Origin | India |
|---|---|
| Display | 128 x 64 pixel B/W LCD with backlight |
| Dimensions | 142.5 x 102.5 x 50.5 mm |
| Battery Life | Greater than 800 measurements (no backlight) |
| Measured parameters | pH, Free Chlorine, Total Chlorine, Calcium Hardness, Magnesium Hardness, Total Hardness, Iron (LR) |
| pH Range | 6.5 to 8.5 pH |
| pH Resolution | 0.1 pH |
| pH Accuracy | ±0.1 of reading at 25°C |
| Environment | 0 to 50°C, 0 to 100% RH |
| Battery Type/Life | 1.5 V AA Alkaline (3 pcs.) |
| Automatic Shut-Off | After 15 min (30 min before READ) |
| Logging Memory | 50 readings |
| GLP | Yes |
| Model | HI97745 |
| Optical System | LED with 525 nm Bandpass Filter, Silicon Photocell |
| Bandpass Filter Bandwidth | 8 nm |
| Bandpass Filter Wavelength Accuracy | ±1.0 nm |
| Cuvette Type | Round, 24.6 mm diameter (22 mm inside) |
| Free Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
| Free Chlorine Resolution | 0.01 mg/L |
| Free Chlorine Accuracy | ±0.03 mg/L ±3% of reading at 25°C |
| Iron Resolution | 0.01 mg/L |
| Iron Accuracy | ±0.01 mg/L ±8% of reading at 25°C |
| Weight | 0.38 Kg |
| Protection Class | IP67 |
| Product Condition | New |
| MPN | HI97745 |
| Hardness, Total Range | 0.00 to 4.70 mg/L (as CaCO3) |
| Total Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
| Photometer Type | Portable |
| Total Chlorine Accuracy | ±0.03 mg/L ±3% of reading at 25°C |
| Total Chlorine Resolution | 0.01 mg/L |
| Hardness, Calcium Range | 0.00 to 2.70 mg/L (as CaCO3) |
| Hardness, Magnesium Range | 0.00 to 2.00 mg/L (as CaCO3) |
| Hardness (Ca, Mg, Total) Resolution | 0.01 mg/L |
| Hardness Accuracy | ±0.11 mg/L ±5% of reading at 25°C |
| Iron (Low Range) Range | 0.00 to 1.60 mg/L (as Fe) |
Key Features
Hanna HI97745 portable photometer provides advanced field measurement of pH, free and total chlorine, calcium/magnesium/total hardness, and low range iron in water.
- Wide detection ranges for pH, chlorine, hardness, and iron.
- Utilizes a superior optical system with reference detector and interference filters.
- Includes IP67 dust/water protection and backlit LCD display.
- Automatic shut-off preserves battery life during field operation.
- 5.6 x 4.0 x 2.0 inch compact, robust design weighing just 380 grams.
- Battery powered; over 800 measurements on standard AA batteries.
- Logs up to 50 readings and supports GLP for data traceability.
- Adapts standard methods for water examination, colorimetric analysis.
Product Description

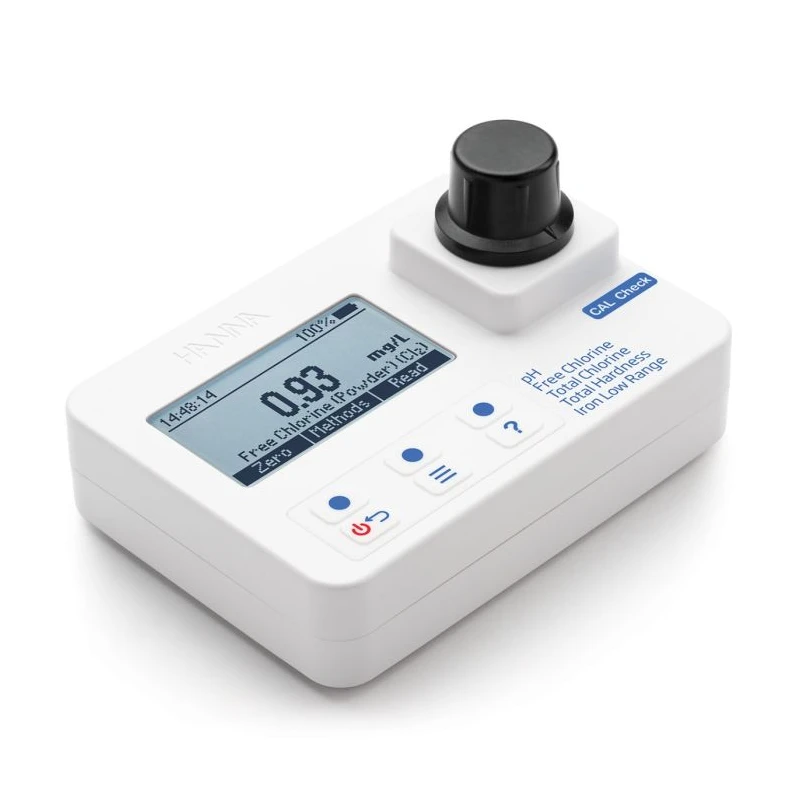

Hanna HI97745 Portable Photometer is a versatile and high-performance multi-parameter instrument designed for accurate onsite measurement of key water quality parameters including pH, free and total chlorine, calcium, magnesium, total hardness, and low-range iron. Engineered for laboratory precision in a portable format, this photometer is ideal for environmental monitoring, water treatment, industrial testing, and educational applications.

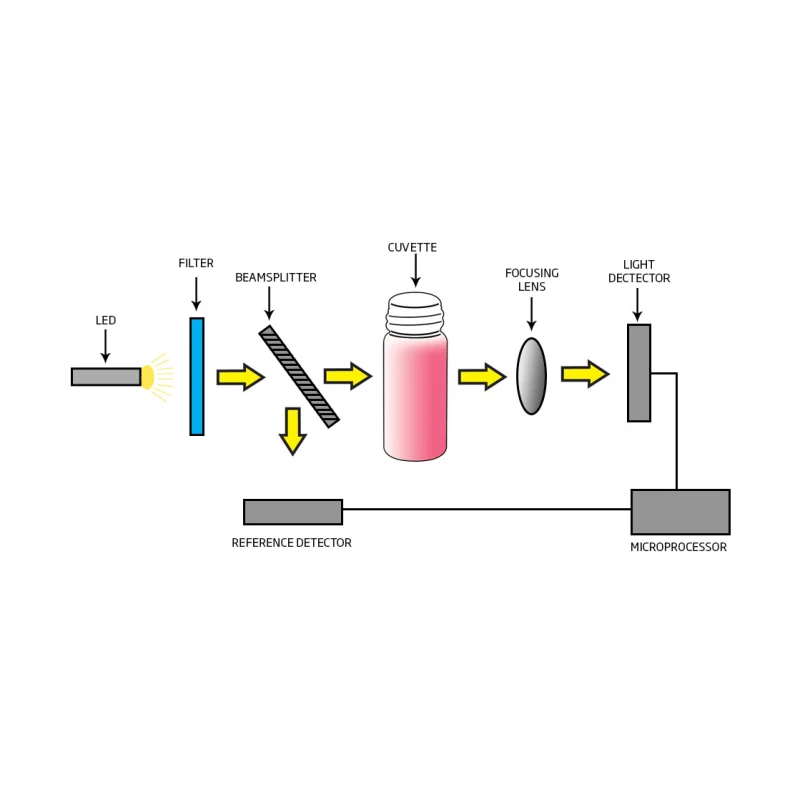

The instrument features a sophisticated optical system incorporating a silicon photocell detector, a 525 nm LED light source with a narrow bandpass interference filter, and a reference detector. This advanced configuration ensures fast, stable, and highly repeatable measurements across multiple parameters, delivering reliable analytical results in both field and laboratory environments.
The HI97745 supports a wide range of measurements including pH (6.5–8.5 with 0.1 resolution), free and total chlorine (0.00–5.00 mg/L with 0.01 resolution), hardness parameters, and iron (0.00–1.60 mg/L). It operates using adapted Standard Methods (23rd Edition), ensuring compliance with recognized water testing protocols.

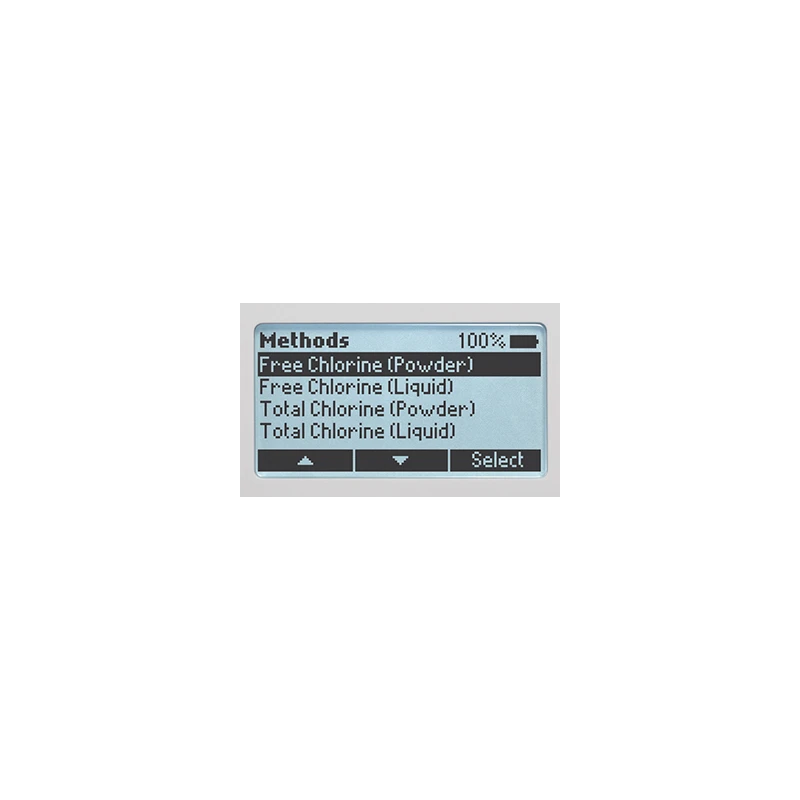

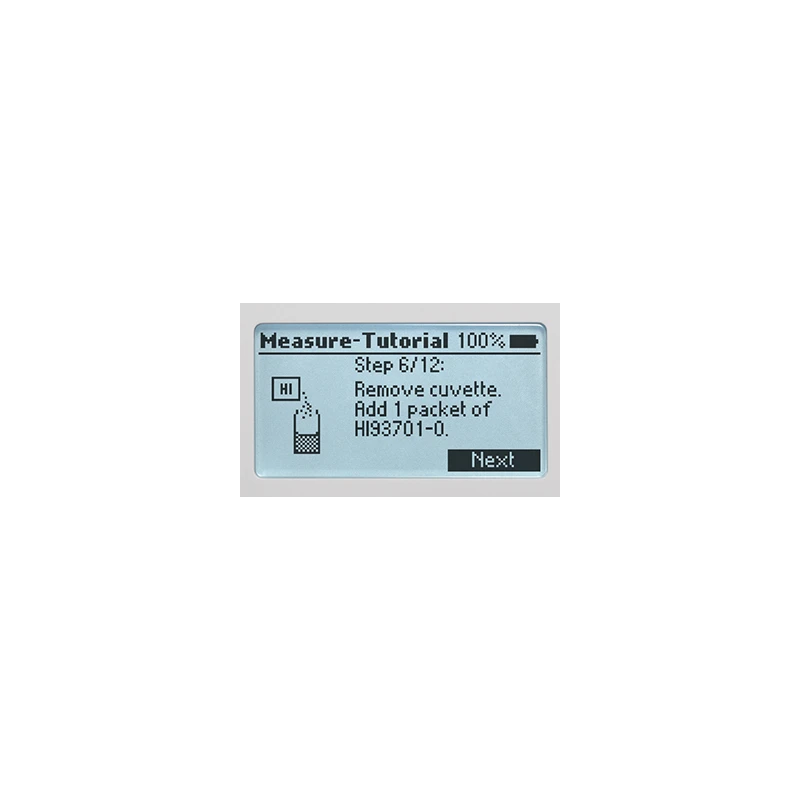

Designed for ease of use, the photometer includes a built-in tutorial mode that provides step-by-step guidance, making it suitable for both trained professionals and first-time users. The large 128 × 64 pixel backlit LCD display ensures clear readability in all lighting conditions, enhancing usability in challenging environments.
The device includes onboard memory capable of storing up to 50 readings, supporting GLP compliance and enabling efficient data tracking and reporting. The automatic shut-off feature after 15 minutes of inactivity (extended to 30 minutes before a READ measurement) helps conserve battery life and improve operational efficiency.
Built for durability, the HI97745 features an IP67-rated enclosure, offering protection against dust, water, and high humidity conditions. It operates reliably within a temperature range of 0 to 50°C and up to 100% relative humidity, making it suitable for demanding field applications.
Powered by three 1.5V AA alkaline batteries, the photometer can perform over 800 measurements without backlight, ensuring extended use in remote or continuous testing scenarios. It uses standard 24.6 mm round cuvettes for consistent and accurate sample handling.
Widely used in drinking water analysis, wastewater treatment, swimming pool monitoring, industrial process control, and laboratory education, the HI97745 provides a comprehensive solution for multi-parameter water testing.
Enhance your water analysis capabilities with Hanna’s advanced photometric technology, designed for precision, durability, and ease of use in professional applications portable photometer
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hanna HI97745 can measure pH, free and total chlorine, total hardness (calcium and magnesium), and low range iron in water.
The pH measurement range for the HI97745 is 6.5 to 8.5 with a resolution of 0.1 pH.
The HI97745 utilizes a sophisticated optical system with a silicon photocell, LED light source, and a precise 525 nm bandpass filter, ensuring highly repeatable results.
Yes, the HI97745 is designed for field use with an IP67 rating for dust and water protection, making it robust for various environmental conditions.
The HI97745 can perform over 800 measurements on a standard set of three 1.5V AA batteries.
The automatic shut-off feature activates after 15 minutes of inactivity, helping to preserve battery life during field operations.
Yes, the HI97745 can log up to 50 readings, supporting data traceability and GLP compliance.
The HI97745 operates within a temperature range of 0 to 50°C and humidity levels of 0 to 100% (non-condensing).
The HI97745 is compatible with round cuvettes that have a diameter of 24.6 mm and an inside diameter of 22 mm.
Accessories such as calibration standards and reagents for the HI97745 are available separately. You can explore more options in the Lab Equipment & Instruments category.
