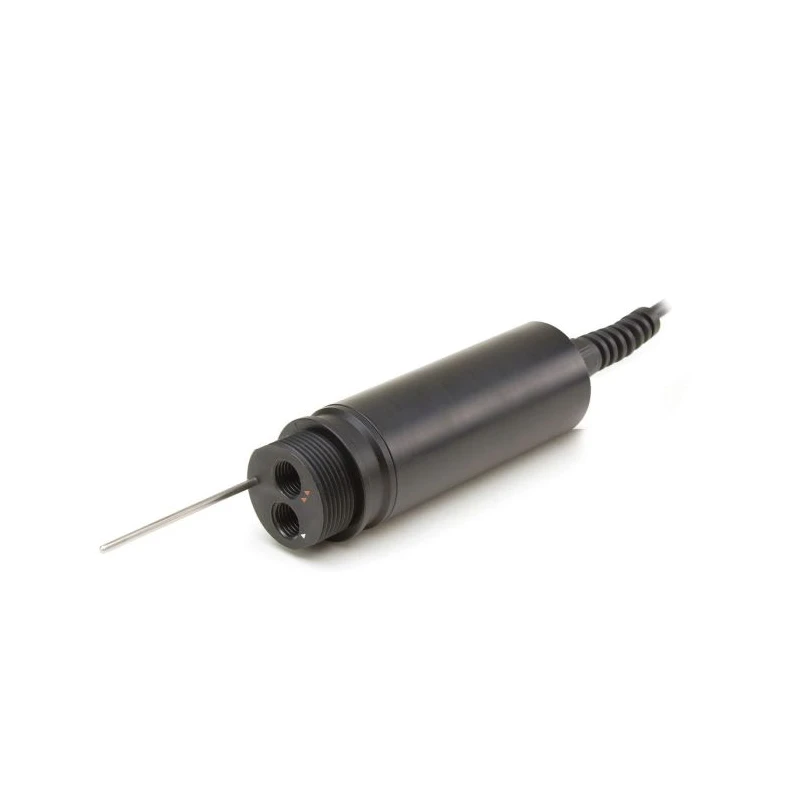

Hanna Multiparameter (pH/DO) Probe for HI98196 - HI7698196
Specifications
| Country of Origin | India |
|---|---|
| Operating Temperature | -5 to 55 °C |
| IP Protection | IP68 |
| Model | HI7698196 |
| Connection Type | Quick Connect |
| Probe Dimensions | 342 x 46 mm (L x D) |
| Maximum Depth | 20 m (66' feet) |
| Probe Weight | 0.57 kg |
| Cable Specification | Multistrand-multiconductor shielded cable with internal strength member |
| Protection rating | IP68 (continuous) |
| Parameters Measured | pH, Dissolved Oxygen (DO) |
| Product Condition | New |
| MPN | HI7698196 |
| Compatible Meter | HI98196 |
| Cable Lengths Available | 4 m, 10 m, 20 m, 40 m |
| Cable Strength Rating | 68 kg (150 lbs) intermittent |
| Wetted Materials | Body: ABS, O-rings: EPDM, Shield: ABS/316 SS, Temperature probe: 316 SS, Threads: Nylon |
| Sensor Connector Type | Field replaceable, screw-type, color-coded |
| Number of Parameters Supported | Multiparameter (pH, DO, with auto-recognition) |
Key Features
HI7698196 Multiparameter pH/DO probe designed for use with the HI98196 portable meter, offering waterproof operation and rapid sensor replacement.
- Features a quick connect interface for a reliable, waterproof connection with the HI98196 meter.
- Sensors are automatically recognized when connected to the probe ensuring operational efficiency.
- Field replaceable, screw-type connectors are color-coded for easy sensor identification in the field.
- Durable multistrand-multiconductor shielded cable, available in multiple lengths for versatile field application.
- Rugged design with IP68 protection rating supports long-term and continuous underwater use up to 20 meters depth.
- Probe body constructed from ABS, shield from ABS/316 stainless steel, and temperature probe of 316 stainless steel.
- Operating temperature range from -5 to 55 °C, compatible for various environments and conditions.
- Probe weight is 570 g, and size is 342 mm length with 46 mm diameter for robust field handling.
Product Description
The HI7698196 Multiparameter pH/DO probe is specifically engineered for the HI98196 portable meter, catering to high-precision field analysis of pH and dissolved oxygen parameters in water and environmental testing applications. The IP68-rated mechanism guarantees total ingress protection and durable performance during continuous underwater use. Featuring a quick connect, waterproof system, this probe allows for straightforward sensor attachment and removal, ensuring minimal downtime and efficient sensor replacement even in rugged field environments.
Sensors are individually recognized upon connection, and any probe port that is unused disables the related parameter automatically. Color-coded, field-replaceable sensors simplify identification and mounting during maintenance. The probe’s shielded cable is reinforced with a high-strength internal member rated for up to 68 kg (150 lbs.) of intermittent use, making it suitable for deep deployments and rough handling.
- Probe rating: IP68 for continuous submersion and industrial/laboratory field operation.

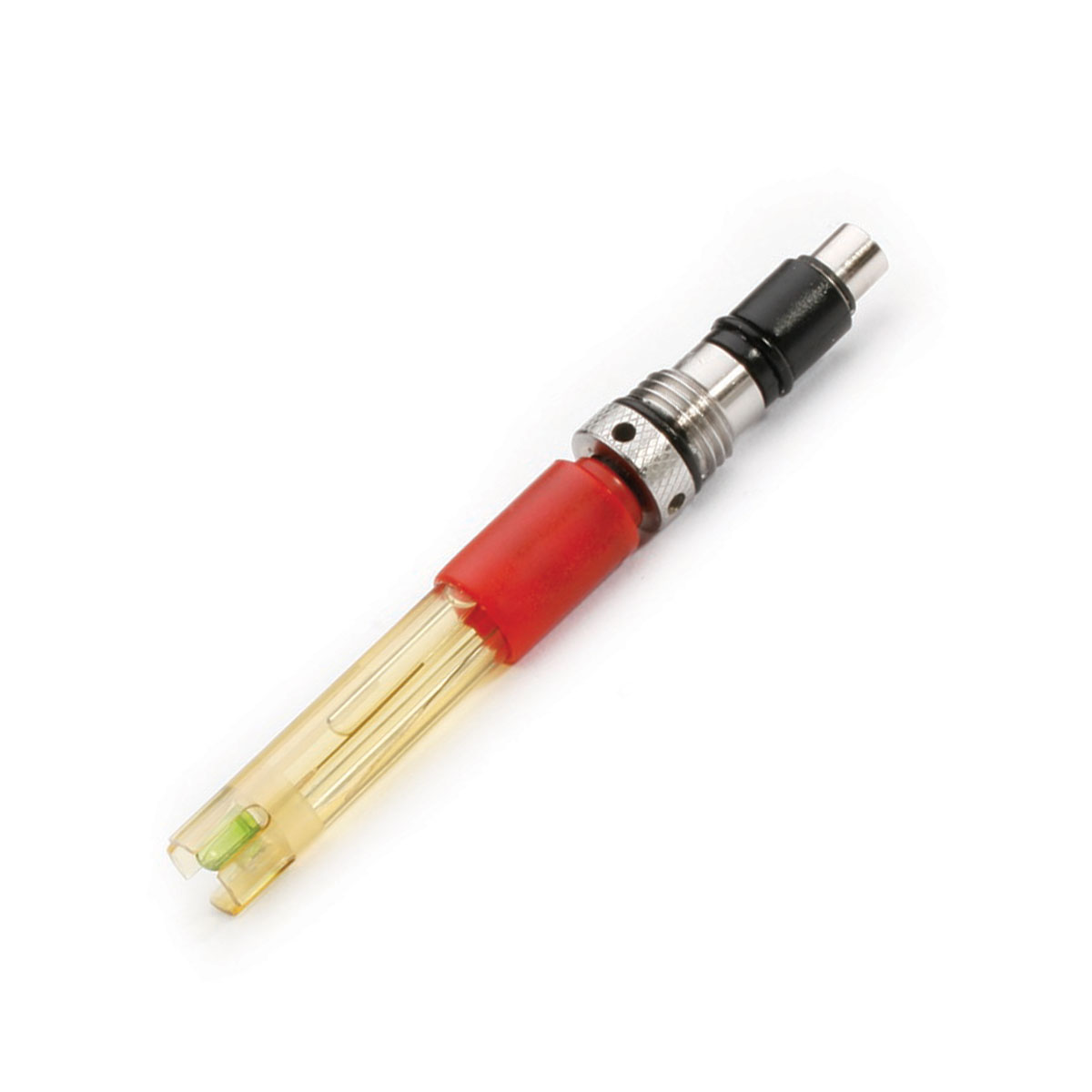

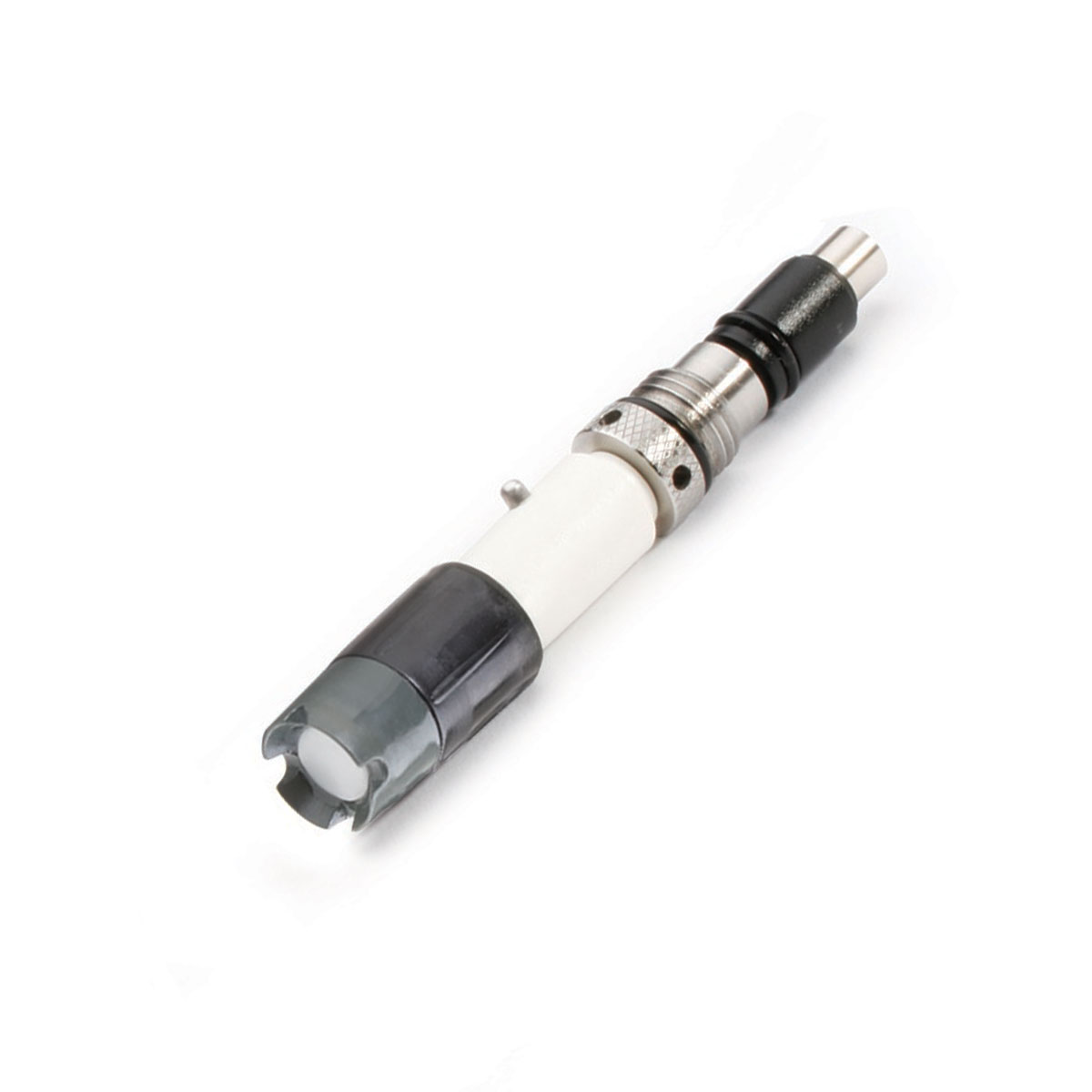

- Replaceable sensors for pH and dissolved oxygen with screw-type, color-coded connections.
- Available cable lengths: 4 m, 10 m, 20 m, and 40 m to support various field scenarios.
- Construction materials: Body made from ABS, O-rings from EPDM, shield from ABS/316 stainless steel, and threads from nylon for chemical durability.
- Probe dimensions: 342 mm length × 46 mm diameter for stable hand or mounted operation.
- Maximum operational depth: 20 meters (66' feet).
- Operating environment: -5 to 55 °C for laboratory, environmental, water treatment, and industrial applications.
Common use cases include water quality monitoring, environmental studies, laboratory fieldwork, research, agriculture, aquaculture, and municipal water analysis.
Browse more laboratory probes, multiparameter sensors, and field analysis equipment in the EnvMart instruments category.
Frequently Asked Questions
The HI7698196 probe can operate at a maximum depth of 20 meters (66 feet), making it suitable for underwater applications.
Yes, the HI7698196 probe has an IP68 rating, ensuring complete protection against water ingress during continuous submersion.
Yes, the sensors of the HI7698196 probe are field replaceable with color-coded, screw-type connectors for easy identification and maintenance.
The HI7698196 probe operates effectively in temperatures ranging from -5 to 55 °C, suitable for various environmental conditions.
The probe body is made from ABS, with a shield of ABS/316 stainless steel, ensuring durability and chemical resistance.
The quick connect feature allows for a reliable, waterproof connection to the HI98196 meter, enabling easy attachment and removal of the probe.
The HI7698196 probe is ideal for water quality monitoring, environmental studies, laboratory fieldwork, research, agriculture, aquaculture, and municipal water analysis.
The HI7698196 probe is available with cable lengths of 4 m, 10 m, 20 m, and 40 m, providing versatility for different field scenarios.
The HI7698196 probe weighs 570 g, making it manageable for field handling and operation.
Any unused probe port will automatically disable the related parameter when connected, ensuring efficient operation.
