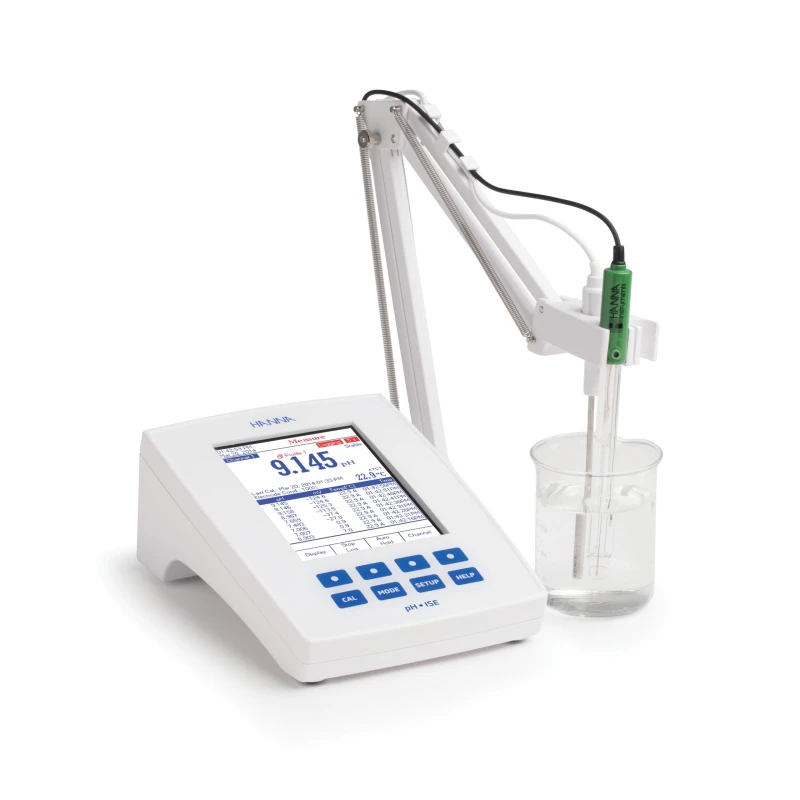

Hanna Laboratory Research Grade Two Channel Benchtop pH/mV/ISE Meter - HI5222-02
Specifications
| Country of Origin | India |
|---|---|
| Temperature Accuracy | ±0.2 °C |
| Display | Color graphic LCD with on-screen help, graphing, and custom color configuration |
| Power Supply | 12 VDC adapter (included) |
| Dimensions | 160 x 231 x 94 mm |
| Temperature Resolution | 0.1 °C |
| Temperature range | -20.0 to 120.0 °C |
| pH Range | -2.000 to 20.000 pH |
| pH Resolution | 0.1, 0.01, 0.001 pH |
| pH Accuracy | ±0.1 pH, ±0.01 pH, ±0.002 pH ±1 LSD |
| Environment | 0 to 50°C, RH max 95% non-condensing |
| pH Temperature Compensation | Automatic or manual from -20.0 to 120.0 °C |
| pH Electrode | HI1131B glass body pH electrode with BNC connector and 1 m cable (included) |
| Temperature Probe | HI7662-T stainless steel temperature probe with 1 m cable (included) |
| mV Accuracy | ±0.2 mV ±1 LSD |
| mV Resolution | 0.1 mV |
| mV Range | ±2000 mV |
| Logging Type | Automatic, manual, AutoHold |
| pH CAL Check (electrode diagnostics) | Yes |
| mV Relative Offset | ±2000 mV |
| ISE Range | 1×10⁻⁶ to 9.99×10¹⁰ concentration |
| ISE Resolution | 1 - 0.1 - 0.01 - 0.001 concentration |
| ISE Accuracy | ±0.5% (monovalent ions), ±1% (divalent ions) |
| ISE Calibration | Automatic, up to 5 points, 7 fixed standards and 5 custom solutions |
| Model | HI5222-02 |
| Logging Interval | Settable: 1 second – 180 minutes |
| Keypad | Capacitive touch keys |
| Input Channels | 2 – pH/ORP/ISE |
| Weight | 1.2 Kg |
| Data logging | 100,000 data points, up to 100 lots, 50,000 records/lot |
| Product Condition | New |
| MPN | HI5222-02 |
| USB Connectivity | Yes |
Key Features
HI5222-02 research grade benchtop two channel pH/mV/ISE meter with advanced color LCD display, dual channel operation, and comprehensive calibration features.
- Allows simultaneous measurement of pH, mV, and ion selective electrodes on two independent channels.
- Features a large color graphic LCD with on-screen help, customizable colors, and capacitive touch keypad for intuitive operation.
- Automatic up to five-point calibration with eight standard pH buffers and five custom buffer options.
- GLP compliant with full calibration records including date, time, buffers, offset, and slope.
- Data logging capability for up to 100,000 data points with multiple logging modes and USB connectivity for easy data transfer.
- High precision with resolutions up to 0.001 pH and ±0.2 °C temperature accuracy over a wide temperature range.
- Incorporates CAL Check™ probe diagnostics for buffer contamination and probe health monitoring.
Product Description
The HI5222-02 research grade benchtop pH/mV/ISE meter is a state-of-the-art instrument engineered for laboratory and research environments. It simultaneously and independently measures pH, mV, or ion selective electrodes on two input channels. The unit is equipped with a large color graphic LCD, capacitive touch keys, and customizable display options for user convenience. Designed for accuracy and reliability, it supports up to five-point automatic calibration with a choice of eight standard pH buffers and five custom buffers, and offers comprehensive calibration records (GLP). The device includes CAL Check™ probe diagnostics to alert users of possible probe or buffer issues, enabling confident, repeatable results. The meter features advanced USB connectivity for seamless data logging and transfer, with a memory storage capacity of up to 100,000 data points. Automatic or manual temperature compensation ensures precision across its wide measuring range. Ideal for industrial, laboratory, and research applications in chemistry, water analysis, food safety, environmental testing, and more.
- Dual channel design supports pH, mV, and ion selective electrode (ISE) measurements simultaneously.
- Large color LCD with advanced on-screen help and customizable color configuration.
- Automatic or manual five-point calibration for pH and ISE, supporting multiple standard and custom buffers/solutions.
- GLP features include full calibration records with date, time, buffers used, offset, and slope.
- Capacitive touch keypad and dedicated keys enable both routine and advanced operation.
- Comprehensive data logging: settable interval from 1 second to 180 minutes, up to 100,000 data points.
- CAL Check™ probe diagnostics provide real-time buffer and probe condition monitoring.
- Measuring ranges: -2.000 to 20.000 pH, ±2000 mV, ISE from 1×10⁻⁶ to 9.99×10¹⁰ concentration units.
- Temperature measurement from -20 to 120 °C with ±0.2 °C accuracy.
Package includes HI1131B glass body pH electrode, HI7662-T stainless steel temperature probe, installed power adapter, and user manual. Suitable for industrial, chemical, water quality, food & beverage, and research laboratories. Discover more laboratory meters and accessories in EnvMart's scientific instrumentation category.
Frequently Asked Questions
The HI5222-02 meter is designed to simultaneously measure pH, mV, and ion selective electrodes on two independent channels, making it ideal for laboratory and research applications.
The meter supports automatic up to five-point calibration using eight standard pH buffers and five custom buffer options, ensuring accurate measurements.
The HI5222-02 can log up to 100,000 data points with multiple logging modes, allowing users to set intervals from 1 second to 180 minutes for data collection.
Yes, the HI5222-02 is GLP compliant and provides full calibration records including date, time, buffers used, offset, and slope for traceability.
It features a large color graphic LCD with customizable colors and an on-screen help function, enhancing user experience and ease of operation.
The package includes the HI1131B glass body pH electrode and the HI7662-T stainless steel temperature probe, ensuring accurate measurements.
The HI5222-02 can measure temperatures from -20 to 120 °C with an accuracy of ±0.2 °C, making it suitable for various applications.
The meter features USB connectivity for easy data transfer to computers or other devices, facilitating data management and analysis.
CAL Check™ is a diagnostic feature that monitors buffer contamination and probe health, alerting users to potential issues for reliable results.
Yes, the HI5222-02 is designed for industrial, chemical, water quality, food & beverage, and research laboratories, making it versatile for various environments.
