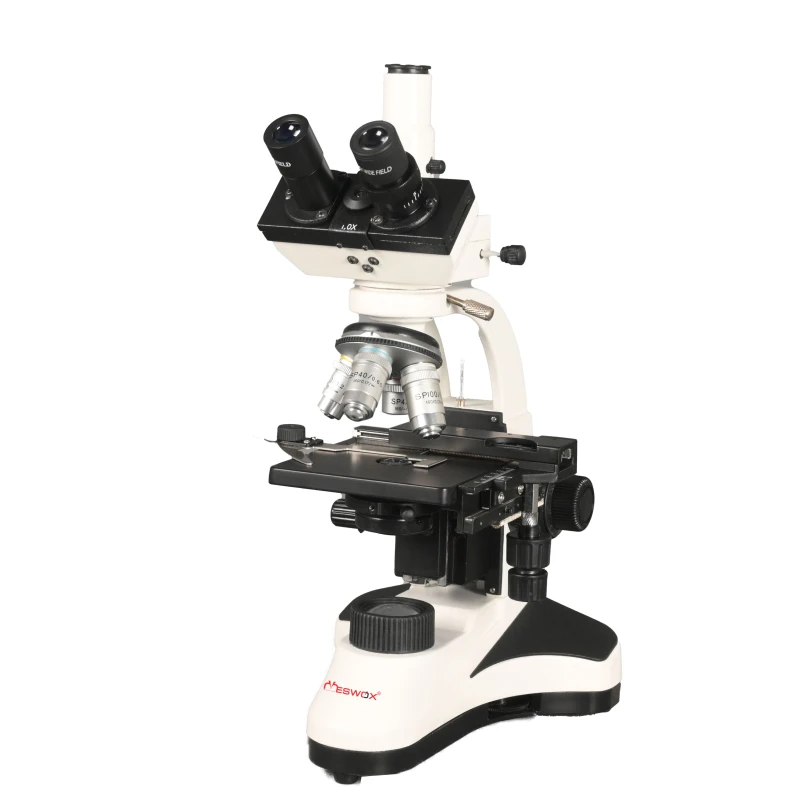

AlfaPrime-T Trinocular Compound Microscope, LED Illuminated, 4x-100x Achromatic Objectives, 220V
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Thermocole box, cleaning cloth, dust cover, power cord |
| Product Type | Trinocular Compound Microscope |
| Model | AlfaPrime-T |
| Condenser | Abbe N.A.-1.25, iris diaphragm, swing-out filter holder, rack and pinion |
| Illumination | Built-in bright white LED, adjustable intensity |
| Objectives | DIN Achromatic 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (SL), 100x/NA 1.25 (SL, Oil) |
| Eyepiece | Wide Field WF 10x/16mm |
| Viewing Head | Trinocular, 45° inclined, 360° rotatable |
| Nosepiece | Quadruple, ball bearing type |
| Stage | Mechanical, 145mm x 125mm, graduated, coaxial controls |
| Camera attachment | Yes, trinocular port |
| Interpupillary Distance | 55–75 mm |
| Dioptric Adjustment | Yes |
| Input Voltage | 220V AC, 50Hz |
| Product Condition | New |
| Stage Movement Range | 80mm (X) x 50mm (Y) |
| Anti-Fungal Treatment | Yes |
Key Features
AlfaPrime-T Trinocular Compound Microscope designed for laboratory and educational applications, featuring high-quality optics and robust construction.
- L-shaped sturdy stand made of anti-rust materials and ergonomic base for greater stability.
- Trinocular tube, inclined at 45°, fully rotatable with interpupillary and dioptric adjustment.
- Wide field eyepiece WF 10x/16mm and quadruple nosepiece ball bearing type.
- DIN Standard achromatic objectives: 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (SL), and 100x/NA 1.25 (SL, Oil).
- Graduated mechanical stage 145x125mm with 80x50mm moving range and co-axial controls.
- Abbe condenser N.A-1.25 with iris diaphragm and swing-out filter holder, rack and pinion movement.
- Bright white built-in LED illumination adjustable via intensity control regulator.
- Co-axial coarse and fine focusing system with tension control ring for smooth, precise operation.
- Camera attachment capability through trinocular port for digital imaging applications.
- Supplied with thermocole box, cleaning cloth, dust cover, and power cord for complete setup.
Product Description
AlfaPrime-T Trinocular Compound Microscope offers advanced optical performance for laboratories, educational settings, and routine research applications. The microscope features an L-shaped, anti-rust stand ensuring stability and longevity even in rigorous use. Ergonomically designed with a robust base and integrated heat flaps, it provides comfort and reliability for extended observations.
The trinocular viewing head is inclined at 45° and can rotate a full 360°, supporting interpupillary distance adjustment (55-75mm) and individual dioptric adjustment. It is treated with anti-fungal coating to preserve optical quality over years of use. Wide field eyepieces (WF 10x/16mm) deliver crisp, distortion-free images, while the quadruple ball-bearing nosepiece allows for quick objective changes.
- Equipped with DIN standard achromatic objectives: 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (spring loaded), and 100x/NA 1.25 (spring loaded, oil immersion) for magnifications tailored to a wide range of biological specimens.
- The mechanical graduated stage measuring 145mm x 125mm provides an ample platform with slide moving range of 80mm (X) x 50mm (Y) controlled by precise coaxial knobs.
- An Abbe condenser (N.A.-1.25) with rack and pinion vertical movement features an iris diaphragm and a swing-out filter holder for customizable illumination.
- Focusing is achieved through co-axial coarse and fine adjustment on a ball drive system, including a tension control ring to ensure smooth operation.
- Illumination is provided by a bright white built-in LED with a step-less intensity regulator, operating on 220V AC, 50Hz input.
- The microscope supports camera attachment via the trinocular port for documentation or digital imaging in laboratory settings.
- Package includes a thermocole box, cleaning cloth, dust cover, and power cord, providing comprehensive accessories for immediate deployment.
Ideal for industrial, laboratory, educational, and research environments requiring robust microscopy solutions with advanced imaging options. Discover more microscopes and laboratory equipment in the Lab Equipment & Instruments category at EnvMart for leading-edge solutions.
Frequently Asked Questions
The AlfaPrime-T Trinocular Compound Microscope features DIN standard achromatic objectives providing magnifications of 4x, 10x, 40x, and 100x (oil immersion).
Yes, the AlfaPrime-T is designed for laboratory and educational applications, making it an ideal choice for schools and universities.
The microscope is equipped with a bright white built-in LED illumination with an adjustable intensity control regulator, allowing you to customize the brightness for optimal viewing.
Yes, the AlfaPrime-T features a trinocular port that allows for camera attachment, enabling digital imaging and documentation of specimens.
The mechanical stage measures 145mm x 125mm, with a slide moving range of 80mm (X) x 50mm (Y), providing ample space for specimen manipulation.
The AlfaPrime-T features a co-axial coarse and fine focusing system with a tension control ring, ensuring smooth and precise adjustments.
The stand is L-shaped and constructed from anti-rust materials, ensuring durability and stability even during rigorous use.
The package includes a thermocole box, cleaning cloth, dust cover, and power cord, providing everything needed for immediate setup.
The AlfaPrime-T operates on 220V AC at 50Hz, making it suitable for standard electrical outlets in many regions.
Yes, the trinocular head allows for interpupillary distance adjustment (55-75mm) and individual dioptric adjustment, accommodating various users comfortably.
